ТОПЛИВНЫЙ БАК Оригинальные запчасти для мотоциклов Yamaha XV750F/XV750FC (1994)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

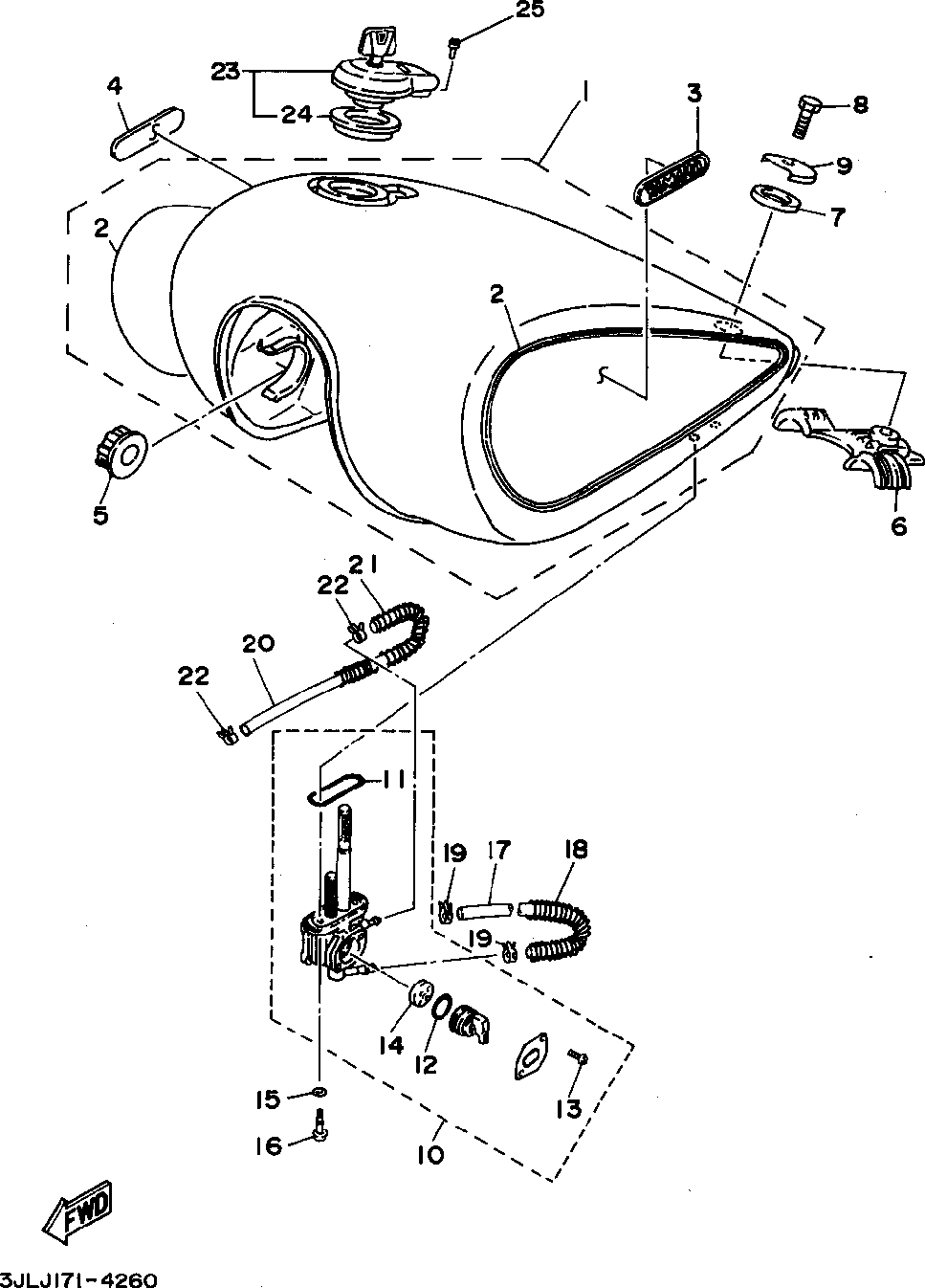

ТОПЛИВНЫЙ БАК

Yamaha XV750F/XV750FC

ТОПЛИВНЫЙ БАК

#

oem код

название

цена

1

1RM-24110-G0-03

Fuel Tank 1 Camellia Green

Fuel Tank 1 Camellia Green

2

3JL-24240-50-00

Graphic Set 1

Graphic Set 1

3

1RM-24161-00-00

Emblem 1 1

Emblem 1 1

4

1RM-24162-00-00

Emblem 2 1

Emblem 2 1

5

4H7-24181-00-00

Damper, Locating 1 2

Damper, Locating 1 2

6

42X-24182-00-00

Damper, Locating 2 1

Damper, Locating 2 1

7

42X-24183-00-00

Damper, Locating 3 1

Damper, Locating 3 1

8

Bolt (661) 1

Bolt (661) 1

9

42X-24186-00-00

Washer, Special 1

Washer, Special 1

10

3AL-24500-00-00

Fuel Cock Asy 1 1

Fuel Cock Asy 1 1

11

4X8-24512-00-00

Gasket 1

Gasket 1

12

1JK-24534-00-00

Seal, Cock 1

Seal, Cock 1

13

Screw, Pan Head 2

Screw, Pan Head 2

14

3H3-24523-00-00

Valve 1

Valve 1

15

Washer, Plate 2

Washer, Plate 2

16

Screw, Spec'l Shape 2

Screw, Spec'l Shape 2

17

3AL-24321-00-00

Pipe 10 1

Pipe 10 1

18

Spring, Compression 1

Spring, Compression 1

19

Clip, Scissor 2

Clip, Scissor 2

20

42X-2416A-00-00

Hose 1

Hose 1

21

Spring, Compressio 1

Spring, Compressio 1

22

Clip, Scissor 2

Clip, Scissor 2

23

4X7-24602-04-00

Cap Asy 1

Cap Asy 1

24

4X7-24612-00-00

Gasket, Cap 1

Gasket, Cap 1

25

Bolt, Sckt Hd 1

Bolt, Sckt Hd 1
