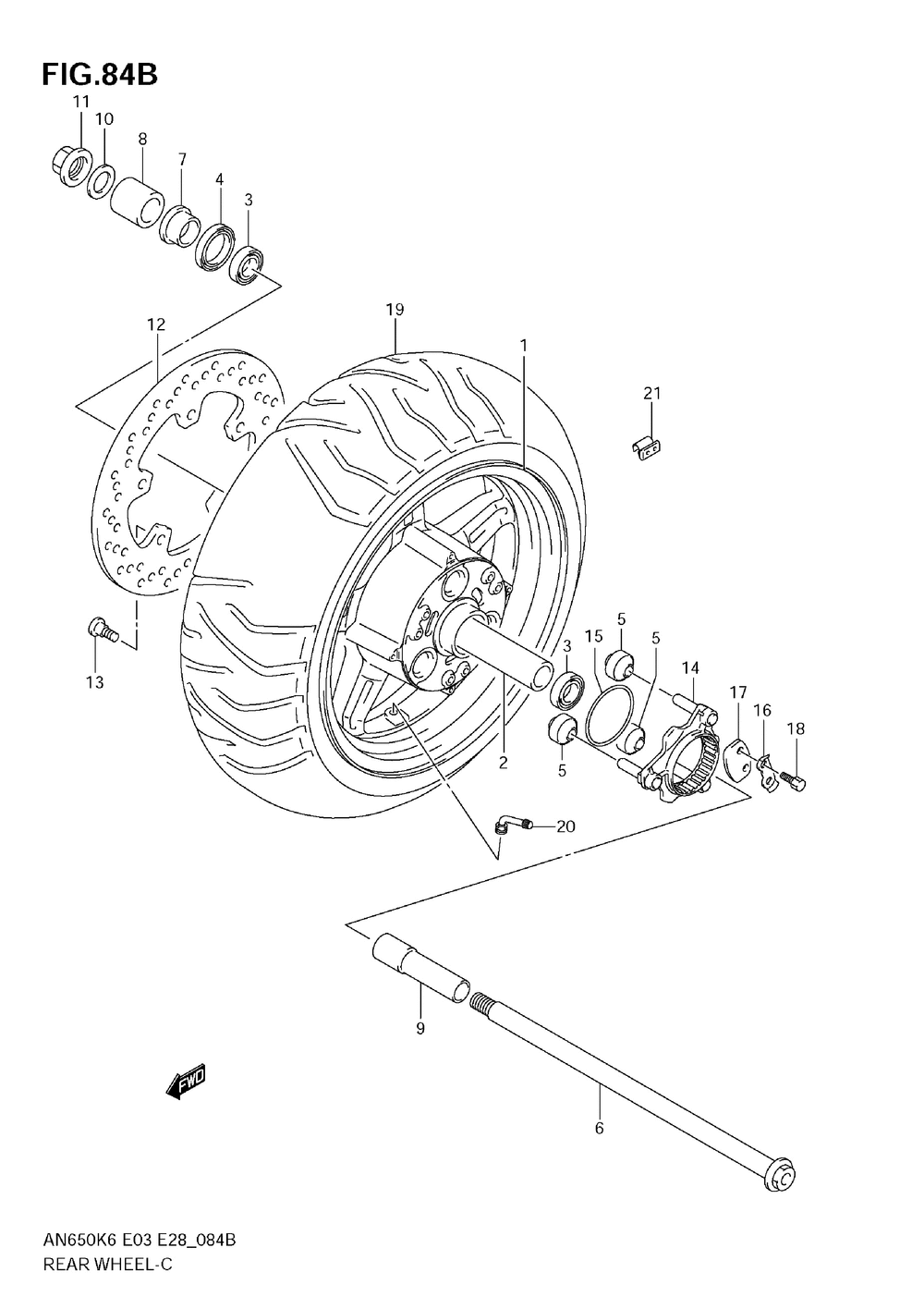

Rear wheel (an650k8/k9)

Suzuki AN650,A
Suzuki
#oem кодцена
1
64111-10G10-YD8
Wheel, Rear (14m/cxmt4.50) ( (silver) )
2
64731-10G00
Spacer, Rear Hub Bearing
3
08123-62047
Bearing, Rear Hub
4
09285-28001
Seal, Rear Wheel Bearing Rh
5
09319-12062
Bush, Rear Hub
6
64711-10G00
Ось задняя
7
64741-10F00
Spacer, Rear Axle Rh No.2
8
64751-10G10
Spacer, Rear Axle Rh No.1
9
64772-10G00
Spacer, Rear Axle Lh
10
08322-0118B
Шайба
11
08319-3118A
Гайка
12
69211-10G10
Disc, Rear Brake
13
09106-08160
Bolt, Disc
14
64680-10G20
Joint Assy, Rear Hub Driven
15
09280-65003
O Ring, Driven Joint
16
09169-06030
Washer, Joint
17
64677-10G00
Шайба
18
09119-06049
Bolt, Driven Joint Washer
19-1
65110-10G00
Tire, Rear, 160/60r14m/c 65h (th01 R Radial (bridgestone) Model K8 )
19-2
65110-10G10
Tire Comp, Rear (th01 R Radial (bridgestone) Model K9 )
20
43130-10G00
Valve Assy, Wheel Rim (tr412)
21-1
43222-73H10
Balancer, Wheel (10g)
21-2
43224-73H10
Balancer, Wheel (20g)
21-3
43226-73H10
Balancer, Wheel (30g) ( Refer To Fig.85b(k-11) For An650ak8/ak9 )
