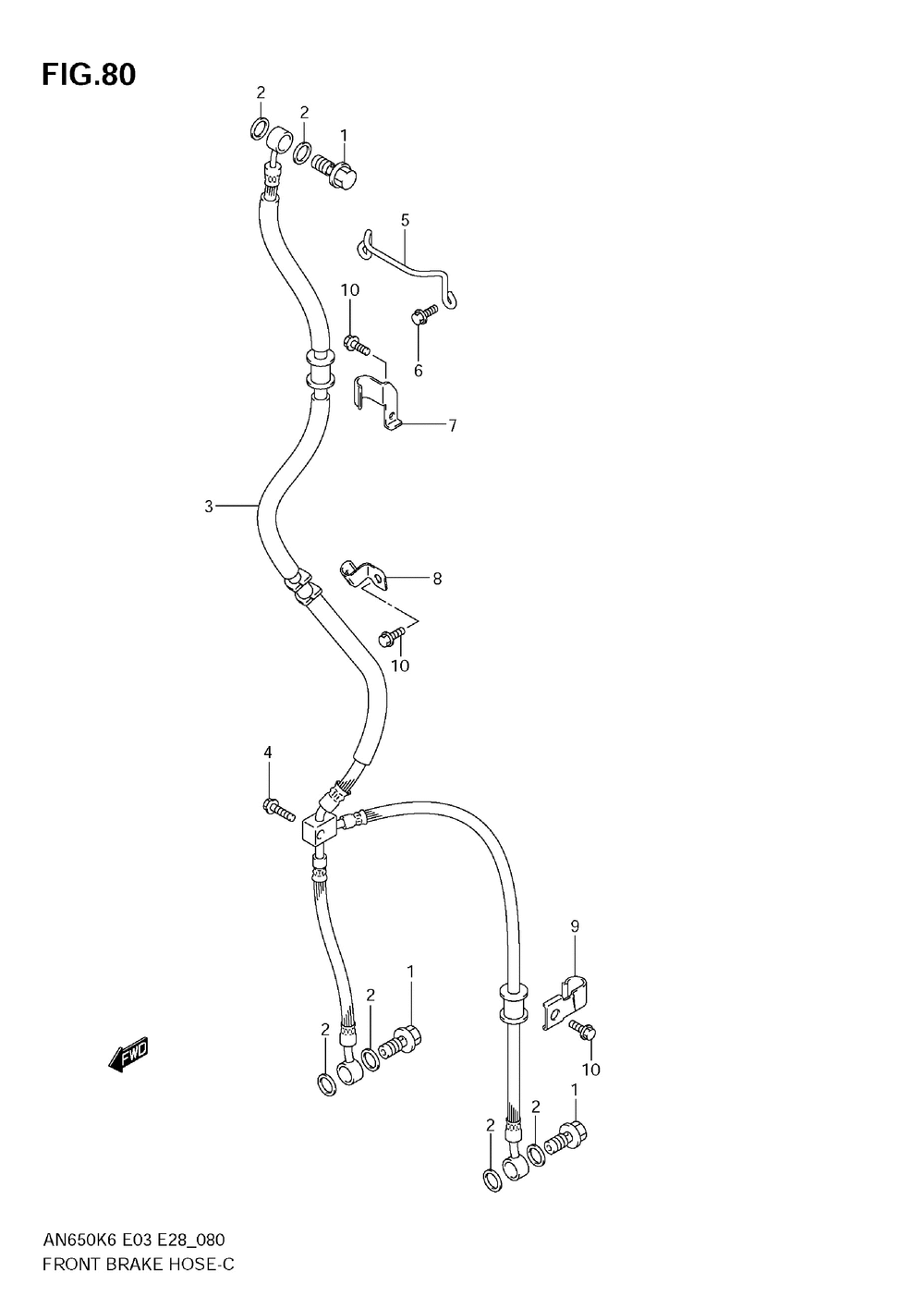

Front brake hose (an650k6/k7/k8/k9)

Suzuki AN650,A

Front brake hose (an650k6/k7/k8/k9)

#

oem код

название

цена

1

Bolt, Fr Macter Cylinder

Bolt, Fr Macter Cylinder

2

Washer (10x15x1.5)

Washer (10x15x1.5)

3

Hose Comp, Front

Hose Comp, Front

4-1

Bolt (model K6)

Bolt (model K6)

5

Направляющая тормозного шланга

Направляющая тормозного шланга

6-1

Bolt (model K6)

Bolt (model K6)

6-2

Bolt (model K7/k8/k9)

Bolt (model K7/k8/k9)

7

Clamp, Fr Brake Hose No.1

Clamp, Fr Brake Hose No.1

8

Clamp, Fr Brake Hose No.2

Clamp, Fr Brake Hose No.2

9

Clamp, Front Brake Hose Lh

Clamp, Front Brake Hose Lh

10-1

Bolt 6x12 Blk 8 (model K6)

Bolt 6x12 Blk 8 (model K6)

4-2

Bolt (model K7/k8/k9)

Bolt (model K7/k8/k9)

10-2

Bolt 6x12 Blk 8 (model K7/k8/k9 Refer To Fig.81(k- 3) For An650ak6/ak7/ak8/ak9 )

Bolt 6x12 Blk 8 (model K7/k8/k9 Refer To Fig.81(k- 3) For An650ak6/ak7/ak8/ak9 )
