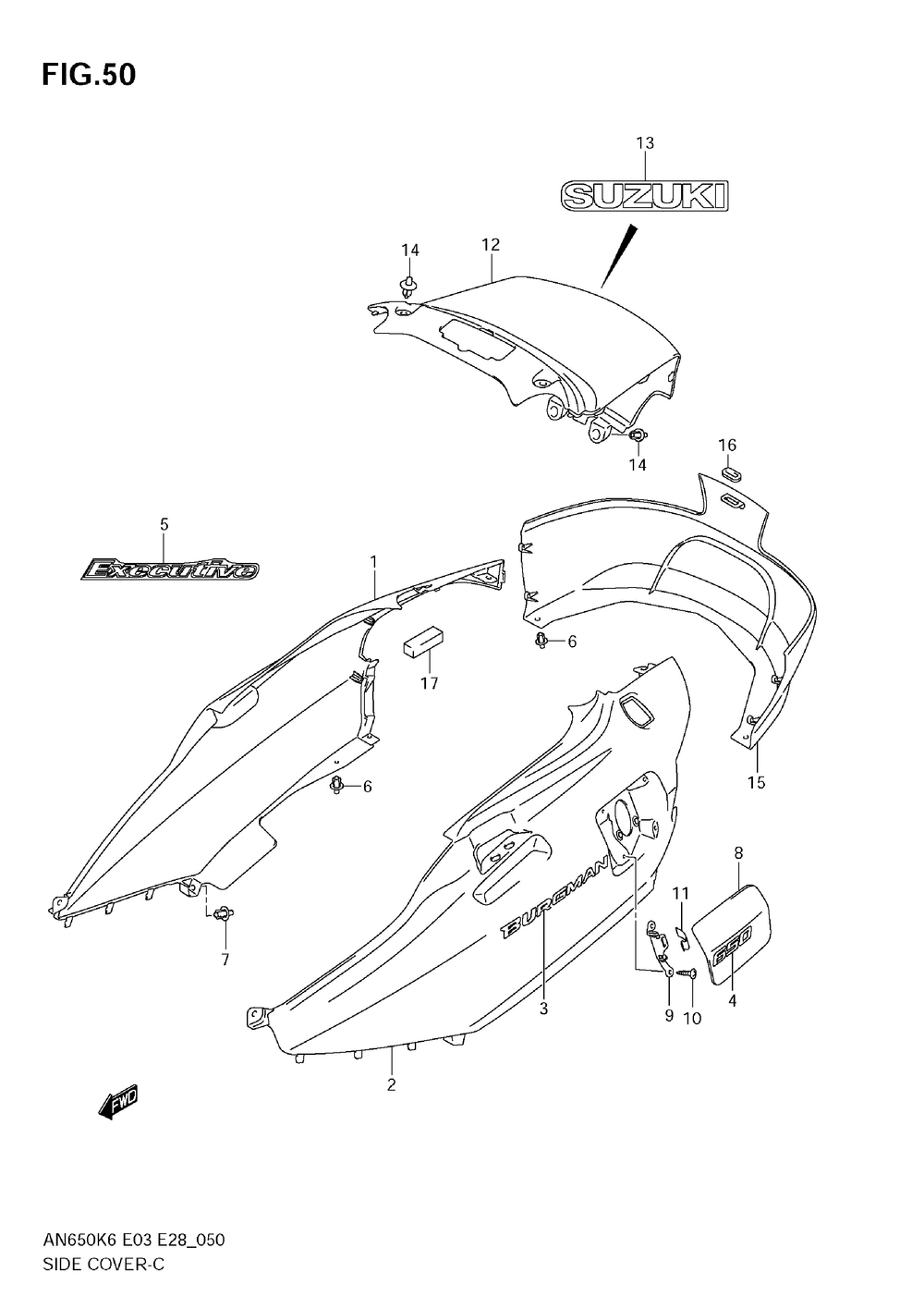

Side cover (an650ak6/k7/ak7)

Suzuki AN650,A
Suzuki
#oem кодцена
1-1
47111-10G11-YHF
Cover, Side Rh (gray) (e28)
1-2
47111-10G20-YHG
Cover, Side, R (model K6)
1-3
47111-10G11-YKZ
Cover, Side Rh (blue) (e28)
1-5
47111-10G20-YHF
Cover, Side Rh (gray) (e28)
1-6
47111-10G20-YHL
Cover, Side Rh (red) (model K7)
2-1
47211-10G31-YHF
Cover, Side Lh (gray) (e28)
2-2
47211-10G31-YHG
Cover, Side Lh (gray) (model K6)
2-3
47211-10G31-YKZ
Cover, Side Lh (blue) (e28)
2-4
47211-10G31-YHL
Cover, Side Lh (red) (model K7)
3
68131-10G10
Emblem, Side Cover
4
68131-10GA0
Emblem, "650"
5-2
68165-10GB0-DAZ
Emblem, "executive" (for Yhg)
5-4
68165-10GB0-ECB
Emblem, "executive" (for Yhl)
6
09409-06314-5PK
Клипса (черн.)
7
09409-08308-5ES
Clip (black) ( Refer To Fig.50b(g-14) For An650ak9 )
8-1
47381-10G11-YHF
Lid, Fuel (gray) (e28)
8-2
47381-10G11-YHG
Lid, Fuel (gray) (model K6)
8-3
47381-10G11-YKZ
Lid, Fuel (blue) (e28)
8-4
47381-10G11-YHL
Lid, Fuel (red) (model K7)
9
47382-10G10
Hinge
10-1
03541-0512A
Screw (model K6)
10-2
03541-0512B
Screw (model K7)
11
47388-10G01
Spring, Fuel Lid
12-2
47311-10G11-YHG
Cover, Frame Center (gray) (model K6)
12-4
47311-10G11-YHL
Cover, Frame Center (red) (model K7)
13
68271-34A00-YES
Emblem, "suzuki"
14
09409-08308-5ES
Clip(black) ( Refer To Fig.50b(g-14) For An650ak9 )
1-1
47111-10G20-YHF
Cover, Side, R (e28)
1-4
47111-10G20-YHG
Cover, Side, R (e28)
