Side cover (an650k6/k7) Оригинальные запчасти для мотоциклов Suzuki AN650,A (2009)

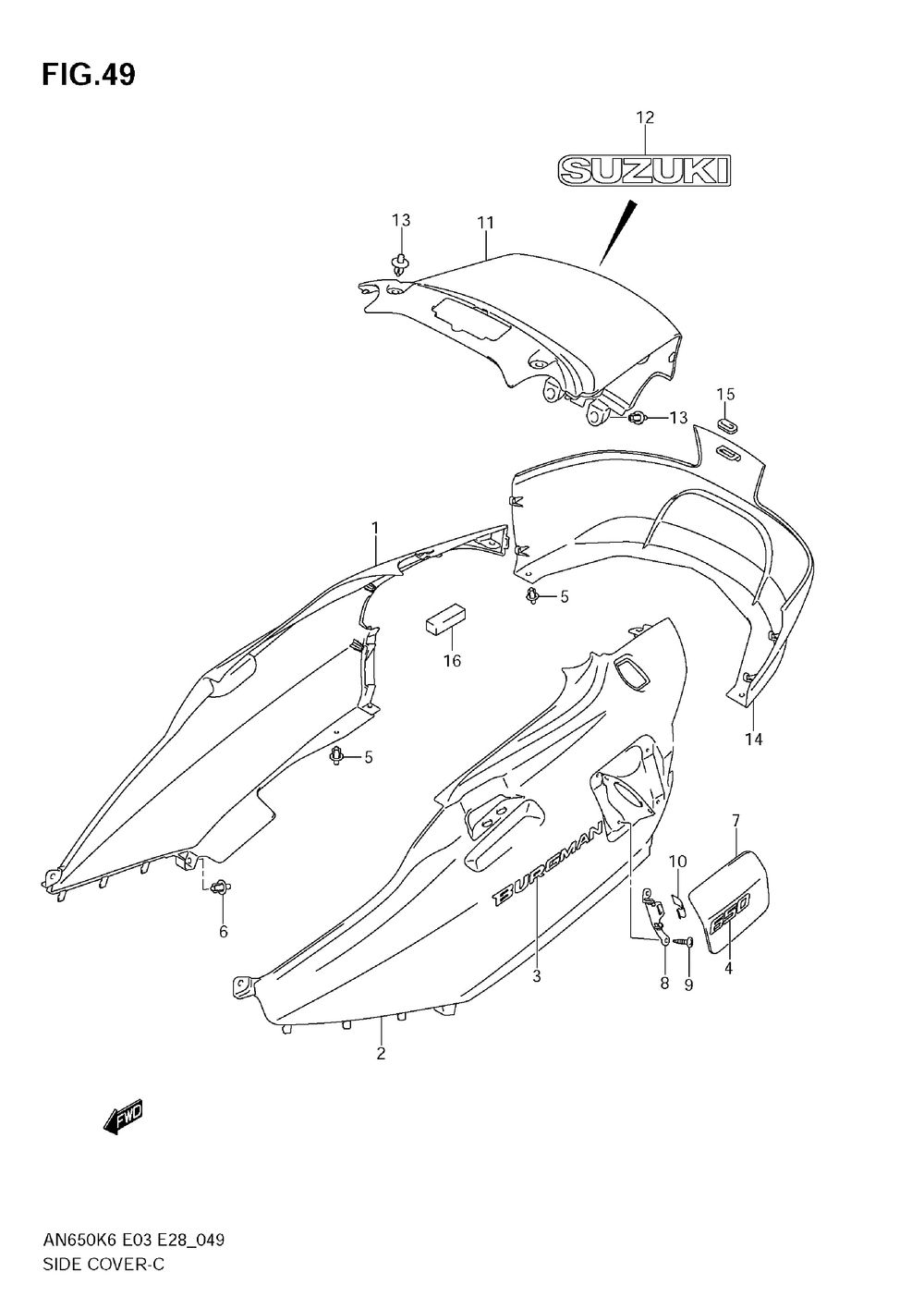

Side cover (an650k6/k7)

Suzuki AN650,A

oem код

название

цена

1-1

47111-10G20-YC3

Cover, Side Rh (white) (model K6)

1-2

47111-10G20-YHG

Cover, Side, R (model K6)

1-4

47111-10G20-YHF

Cover, Side Rh (gray) (model K7)

2-1

47211-10G31-YC3

Cover, Side Lh (white)

2-2

47211-10G31-YHG

Cover, Side Lh (gray) (model K6)

2-3

47211-10G31-YHF

Cover, Side Lh (gray) (model K7)

Emblem, Side Cover

Emblem, "650"

Клипса (черн.)

Клипса (черн.)

7-1

47381-10G11-YC3

Lid, Fuel (white)

7-2

47381-10G11-YHG

Lid, Fuel (gray) (model K6)

7-3

47381-10G11-YHF

Lid, Fuel (gray) (model K7)

47382-10G10

Hinge

9-1

03541-0512A

Screw (model K6)

9-2

03541-0512B

Screw (model K7)

47388-10G01

Spring, Fuel Lid

11-1

47311-10G01-YC3

Cover, Frame Center (white)

11-2

47311-10G01-YHG

Cover, Frame Center (gray) (model K6)

11-3

47311-10G01-YHF

Cover, Frame Center (gray) (model K7)

12-1

68271-34A00-YJH

Emblem, "suzuki" (for Yc3)

12-2

68271-34A00-YES

Emblem, "suzuki" (for Yhg,yhf)

14-1

47321-10G00-YC3

Cover, Frame Lower (white)

14-2

47321-10G00-YHG

Cover, Frame Lower (gray) (model K6)

14-3

47321-10G00-YHF

Cover, Frame Lower (gray) (model K7)

09320-04008

Подушка

47115-10G00

Cushion, Frame Cover ( Refer To Fig.50b(g-14) For An650ak9 )

09409-08308-5ES

Clip(black)

1-3

47111-10G20-YC3

Cover, Side, R (model K7)
