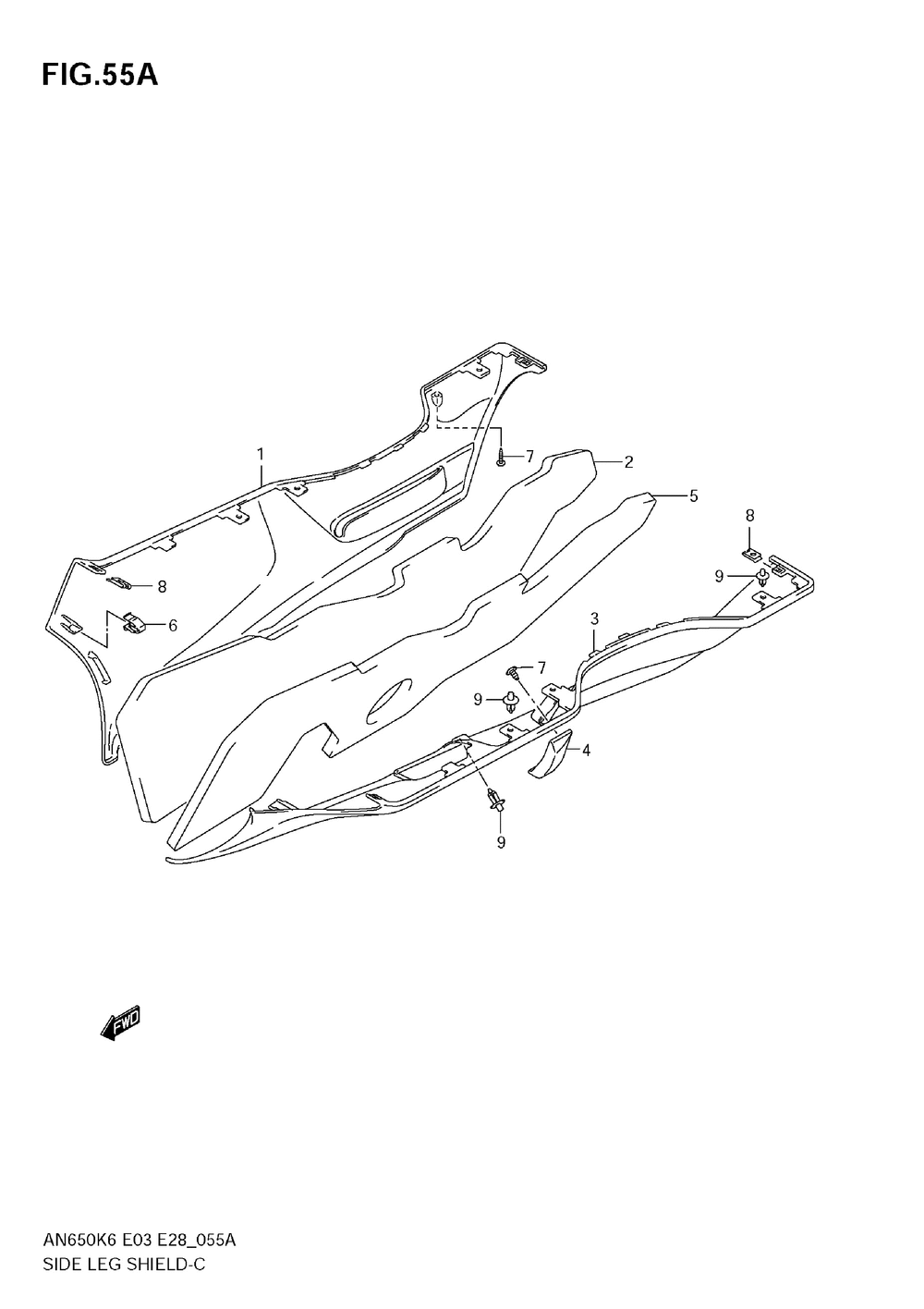

Side leg shield (model k7)

Suzuki AN650,A
Suzuki
#oem кодцена
1-1
48171-10G00-YC3
Shield, Leg Side Rh (white) (an650)
1-2
48171-10G00-YHF
Shield, Leg Side
1-3
48171-10G00-YHG
Shield, Leg Side Rh (gray) (e28)
1-4
48171-10G00-YHL
Shield, Leg Side Rh (red) (an650a)
2
48172-10G00
Cushion, Rh
3-1
48181-10G20-YC3
Shield, Leg Side Lh (white) (an650)
3-2
48181-10G20-YHF
Shield, Leg Side Lh (gray)
3-3
48181-10G20-YHG
Shield, Leg Side Lh (gray) (e28)
3-4
48181-10G20-YHL
Shield, Leg Side Lh (red) (an650a)
4
48183-10G00
Крышка левая
5
48182-10G00
Cushion, Lh
6
09409-08326
Зажим
7
09132-05053
Screw, Cover
8
09148-05047
Гайка
9
09409-08308-5ES
Clip (black) ( Refer To Fig.55c(h-12) For Model K9 )
