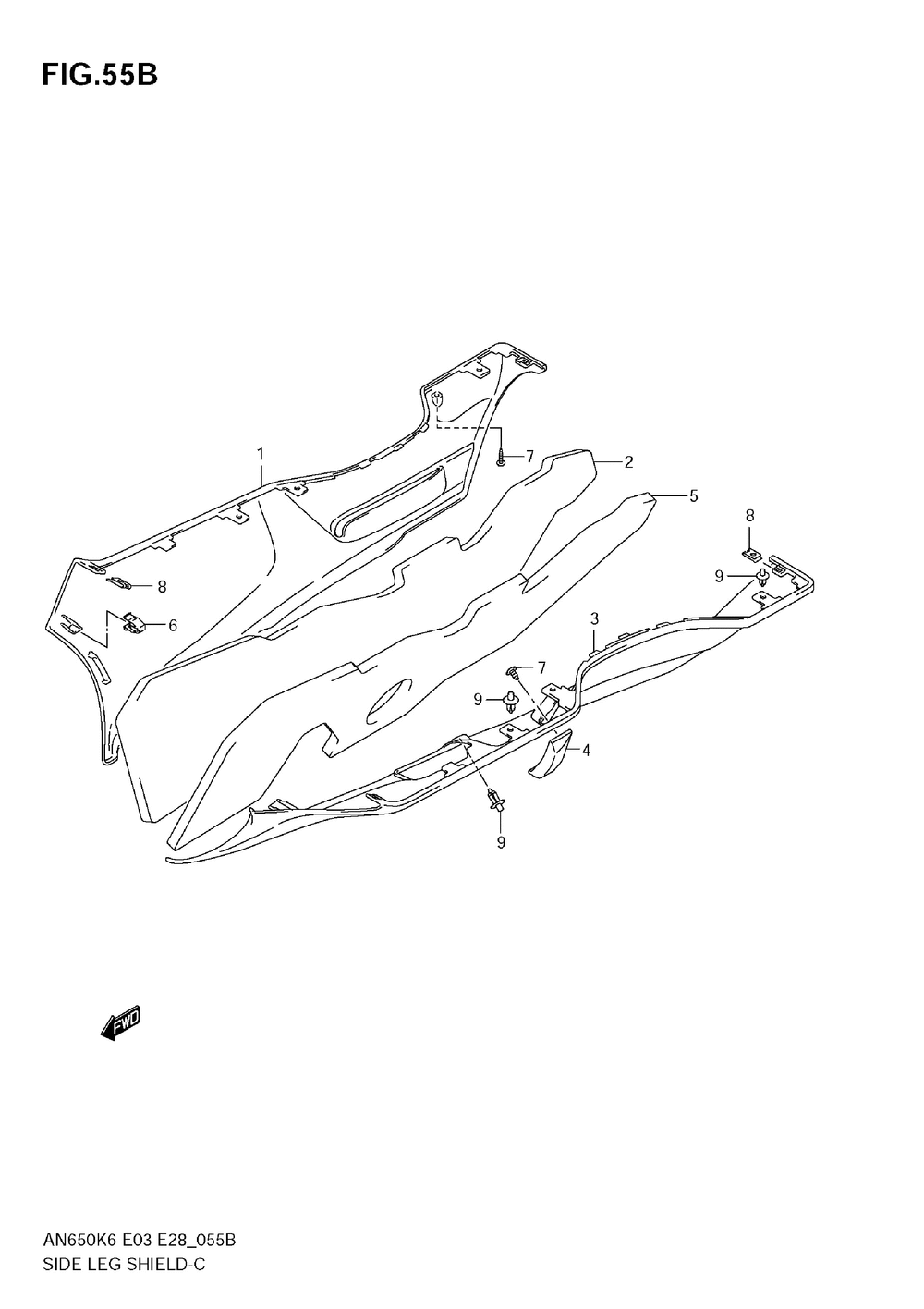

Side leg shield (model k8)

Suzuki AN650,A
Suzuki
#oem кодцена
1-1
48171-10G00-YAY
Shield, Leg Side Rh (black)
1-2
48171-10G00-YLC
Shield, Leg Side (an650)
1-3
48171-10G00-YHG
Shield, Leg Side Rh (gray) (an650a)
1-4
48171-10G00-YBA
Shield, Leg Side Rh (blue) (an650a)
2
48172-10G00
Cushion, Rh
3-1
48181-10G20-YAY
Shield, Leg Side Lh (black)
3-2
48181-10G20-YLC
Shield, Leg Side (an650)
3-3
48181-10G20-YHG
Shield, Leg Side Lh (gray) (an650a)
3-4
48181-10G20-YBA
Shield, Leg Side Lh (blue) (an650a)
4
48183-10G00
Крышка левая
5
48182-10G00
Cushion, Lh
6
09409-08326
Зажим
7
09132-05053
Screw, Cover
8
09148-05047
Гайка
9
09409-08308-5ES
Clip (black) ( Refer To Fig.55c(h-12) For Model K9 )
