Топливный бак (model k7/k8) Оригинальные запчасти для мотоциклов Suzuki DL1000 (2009)

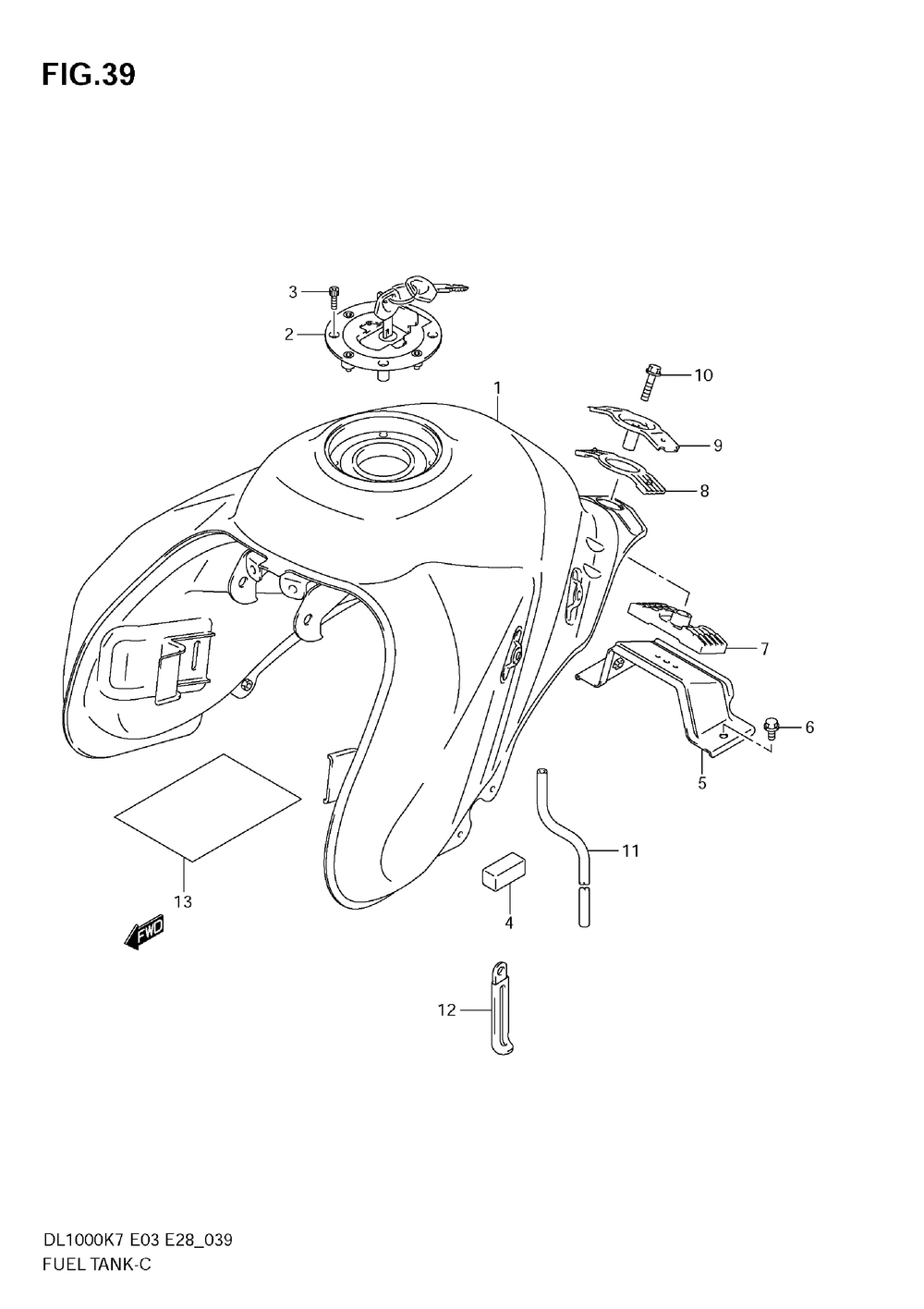

Топливный бак (model k7/k8)

Suzuki DL1000

oem код

название

цена

1-1

44110-06G00-YAY

Tank, Fuel (black) (e3,e28 For Bpk)

1-2

44110-06G00-YU8

Tank, Fuel (gray) (e3,e28 For Dwg)

1-3

44110-06G00-YKY

Tank Comp, Fuel (e3, E28 For Dwh)

1-4

44110-06G00-YMD

Tank Comp, Fuel (e3, E28 For Egr)

1-5

44110-06G20-YAY

Tank, Fuel (black) (e33 For Bpk)

1-6

44110-06G20-YU8

Tank, Fuel (gray) (e33 For Dwg)

1-7

44110-06G20-YKY

Tank Comp, Fuel( (e33 For Dwh)

1-8

44110-06G20-YMD

Tank Comp, Fuel (e33 For Egr)

2-1

44201-33820

Cap Set, Fuel Tank

2-2

44200-33830

Cap Set, Fuel Tank (e33)

09106-05017

Болт

44541-06G00

Cushion, Side

44550-06G01

Кронштейн, задний нижний

Болт

Cushion, Lower

Cushion, Upper

Крепление верхнее

Болт

Hose, Water Drain

Зажим

Shield, Center ( Refer To Fig.39a(h- 7) For Model K9 )

09404-06429

Зажим

1-1

44100-06G30-YAY

Tank Assy, Fuel (e3,e28 For Bpk)

1-5

44100-06G51-YAY

Tank Assy, Fuel (e33 For Bpk)
