Rear wheel (dl650k7/k8/k9) Оригинальные запчасти для мотоциклов Suzuki DL650,A (2009)

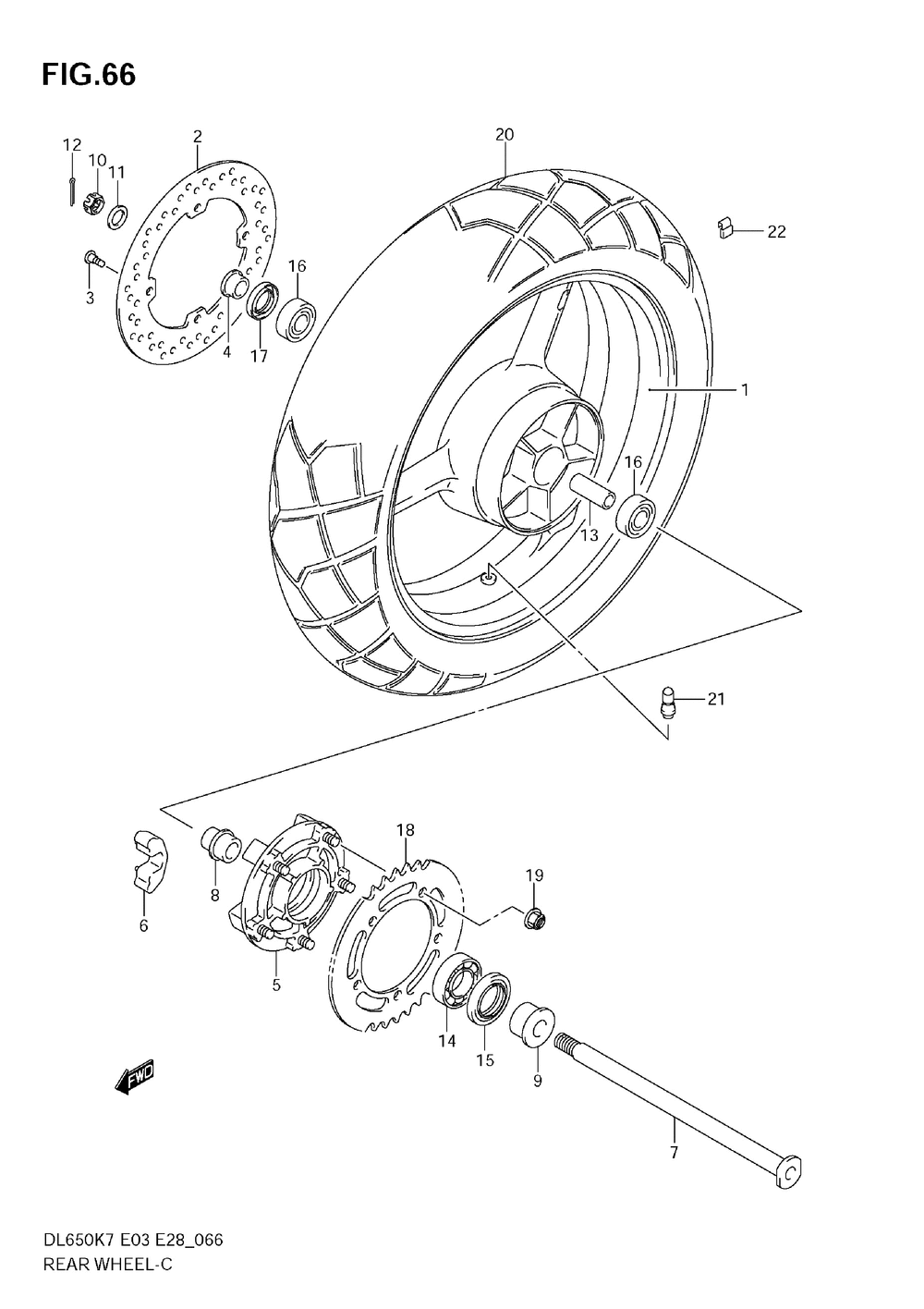

Rear wheel (dl650k7/k8/k9)

Suzuki DL650,A

oem код

название

цена

1-1

64111-06G10-019

Wheel, Rear (17m/cxmt4.00) (model K7/k8 (black) Model K9 For Yay,yme )

1-2

64111-06G10-YD8

Wheel, Rear(17m/ (model K9 For Yhg, Ypa (silver) )

69211-06G00

Disc, Rear Brake

09106-08160

Bolt, Disc

64741-10F00

Spacer, Rear Axle Rh No.2

64610-35F10

Drum, Rear Sprocket

64651-35F10

Absorber, Rear Hub Shock

64711-03F10

Ось задняя

64733-06G00

Retainer, Rear Sprocket Drum

Spacer, Rear Axle Lh

Гайка

Шайба

Шплинт

Spacer, Rear Hub Bearing

Bearing (32x65x17)

Seal (39x65x7)

Bearing, Rear Hub

Seal, Rear Wheel Bearing Rh

64511-27G00

Sprocket, Rear (nt:47-525)

08319-3110A

Nut, Upper

65110-06G10

Tire, Rear, 150/70r17m/c 69h (trail Wing 152 (bridgestone) Radial F )

43130-24A00

Valve Assy, Wheel Rim (tr412)

22-1

43222-73H10

Balancer, Wheel (10g)

22-2

43224-73H10

Balancer, Wheel (20g)

22-3

43226-73H10

Balancer, Wheel (30g) ( Refer To Fig.67(j- 5) For Dl650ak7/ak8/ak9 )

09262-32022

Bearing, 32x65x1
