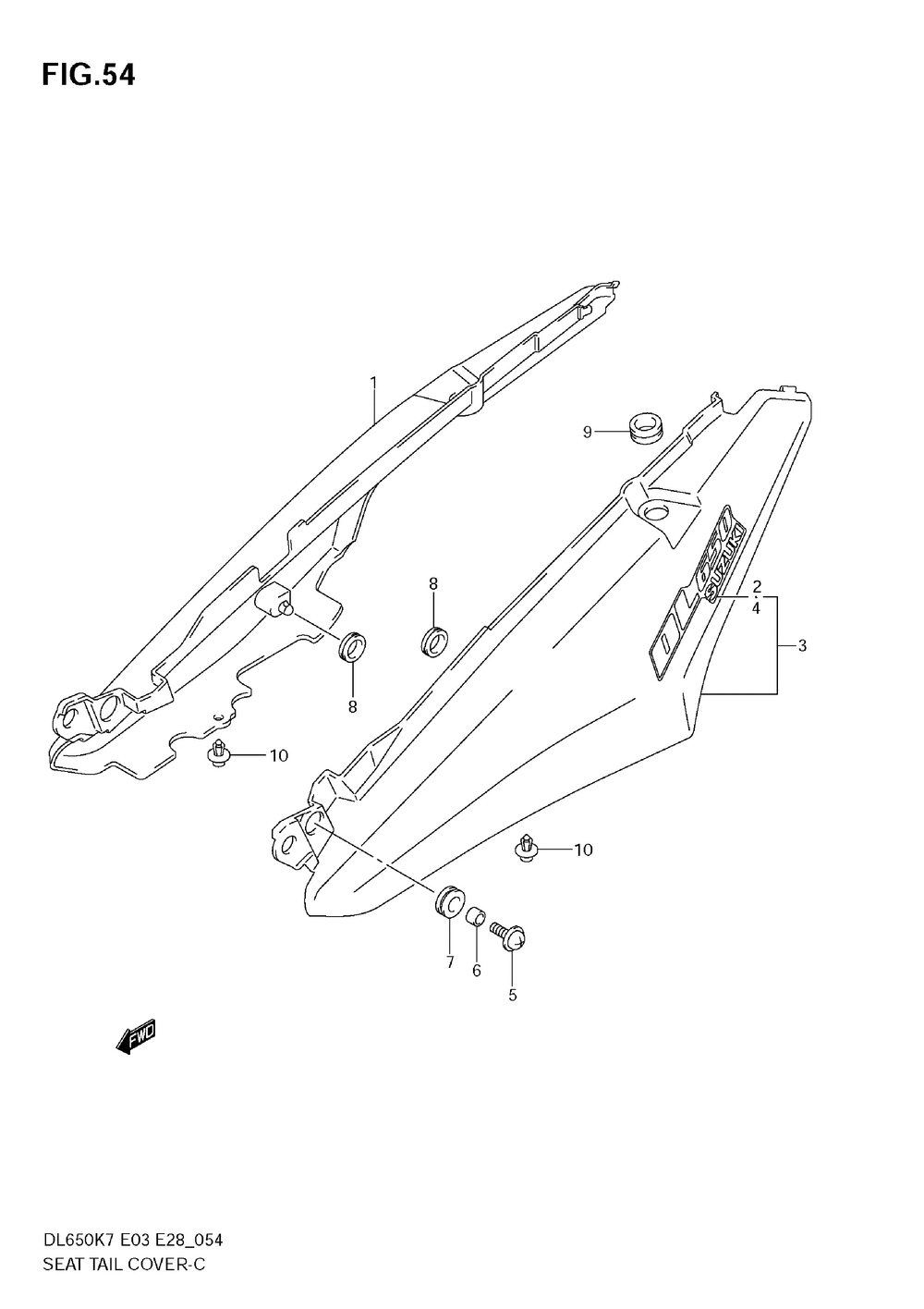

Seat tail cover (model k7) Оригинальные запчасти для мотоциклов Suzuki DL650,A (2009)

Seat tail cover (model k7)

Suzuki DL650,A

oem код

название

цена

1-1

45501-27G00-YHG

Cover Assy, Seat Tail Rh (for Yhg (gray) )

1-3

45501-27G00-4EX

Cover As, Seat T (for Ykv (black) )

1-4

45501-27G00-YKY

Cover Assy, Seat Tail Rh (for Yky (blue) )

2-1

68161-27G00-DTK

.emblem, Seat Tail Cover (for Yhg)

2-2

68161-27G00-DTL

.emblem, Seat Tail Cover (for Yhl)

2-3

68161-27G00-DTM

.emblem, Seat Tail Cover (for 4ex)

2-4

68161-27G00-DTN

.emblem, Seat Tail Cover (for Yky)

3-1

45502-27G00-YHG

Cover Assy, Seat Tail Lh (for Yhg (gray) )

3-3

45502-27G00-4EX

Cover, Seat Tail (for Ykv (black) )

3-4

45502-27G00-YKY

Cover Assy, Seat Tail Lh (for Yky (blue) )

09136-06081

Винт

09180-06300

Spacer, Choke Solenoid

09320-12068

Cushion, Tail Cover Rr Fr

09320-08018

Cushion, Brace

09320-15008

Cushion, Rear

09409-06314-5PK

Clip (black) ( Refer To Fig.54b(i- 5) For Model K9 )

4-1

68161-27G00-DTK

Emblem, Seat Tai (for Yhg)

4-3

68161-27G00-DTM

Emblem, Seat Tai (for 4ex)

4-4

68161-27G00-DTN

Emblem, Seat Tai (for Yky)
