Seat tail cover (model k8) Оригинальные запчасти для мотоциклов Suzuki DL650,A (2009)

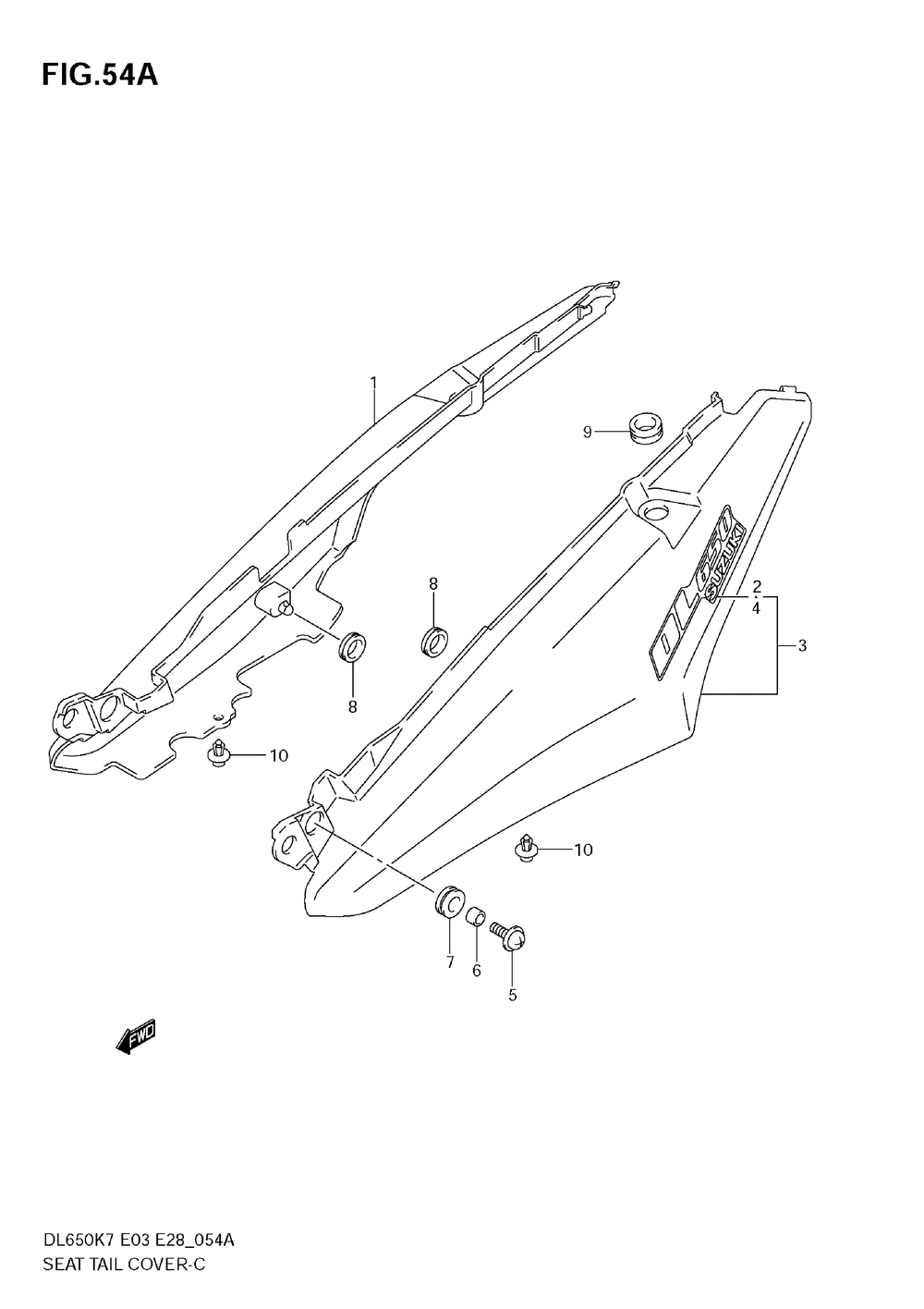

Seat tail cover (model k8)

Suzuki DL650,A

oem код

название

цена

1-1

45501-27G00-YHG

Cover Assy, Seat Tail Rh (for Yhg (gray) )

1-2

45501-27G00-YMF

Cover Assy, Seat (for Ymf (yellow) )

1-3

45501-27G00-4EX

Cover As, Seat T (for Ykv (black) )

2-1

68161-27G00-DTK

.emblem, Seat Tail Cover (for Yhg)

2-3

68161-27G00-DTM

.emblem, Seat Tail Cover (for 4ex)

2-4

68161-27G00-FBZ

Emblem, Seat Tai (for 5fx)

3-1

45502-27G00-YHG

Cover Assy, Seat Tail Lh (for Yhg (gray) )

3-2

45502-27G00-YMF

Cover Assy, Seat (for Ymf (yellow) )

3-3

45502-27G00-4EX

Cover, Seat Tail (for Ykv (black) )

09136-06081

Винт

09180-06300

Spacer, Choke Solenoid

09320-12068

Cushion, Tail Cover Rr Fr

09320-08018

Cushion, Brace

09320-15008

Cushion, Rear

09409-06314-5PK

Clip (black) ( Refer To Fig.54b(i- 5) For Model K9 )

2-2

68161-27G00-FCA

Emblem, Seat Tai (for Ymf)

4-1
