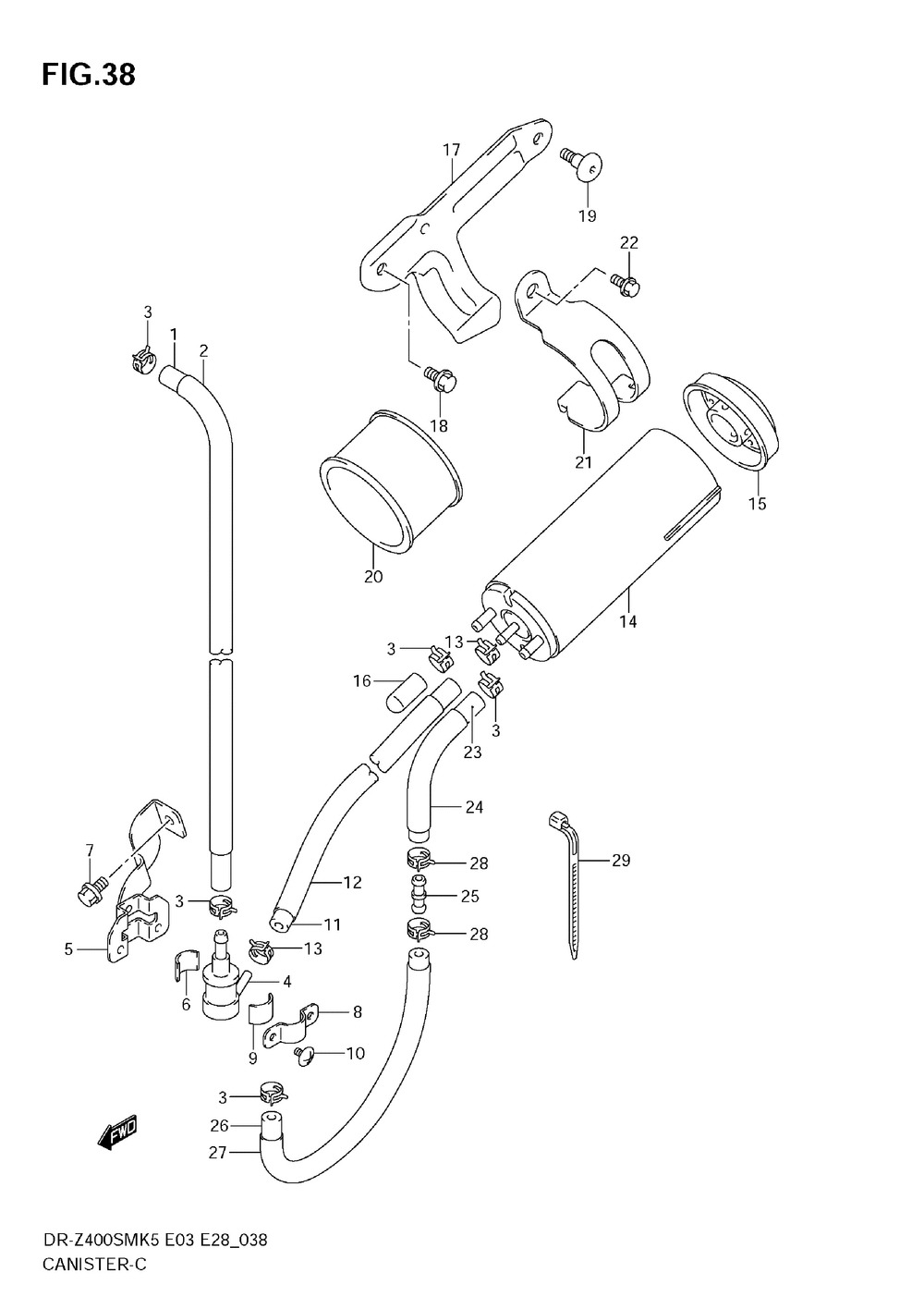

Адсорбер

Suzuki DR-Z400SM

Адсорбер

#

oem код

название

цена

1-1

Hose, Tank & Valve (model K5/k6/k7)

Hose, Tank & Valve (model K5/k6/k7)

1-2

Hose, Tank & Brt (model K8/k9)

Hose, Tank & Brt (model K8/k9)

2

09351-14152-600

Protector (l:600->340)

Protector (l:600->340)

3

Зажим

Зажим

4

Клапан

Клапан

5

Bracket, Valve

Bracket, Valve

6

.cushion

.cushion

7

Болт

Болт

8

Пластина

Пластина

10

Винт

Винт

11-1

Hose, Valve/canister (model K5/k6/k7)

Hose, Valve/canister (model K5/k6/k7)

11-2

Hose, Brthr Valv (model K8/k9)

Hose, Brthr Valv (model K8/k9)

12

09351-14152-00B

Protector (l:2000->950)

Protector (l:2000->950)

13

Зажим

Зажим

14

Канистра

Канистра

15

Крышка

Крышка

16

Cap, Fuel Joint

Cap, Fuel Joint

17

Bracket, Canister

Bracket, Canister

18

Болт

Болт

19

Bolt (6x16)

Bolt (6x16)

20

Cushion, Canister

Cushion, Canister

21

Holder, Canister

Holder, Canister

23-1

Hose, Canister Purge (model K5/k6/k7)

Hose, Canister Purge (model K5/k6/k7)

23-2

Hose, Cstr Purg (model K8/k9)

Hose, Cstr Purg (model K8/k9)

25

Union, 2way

Union, 2way

26-1

Hose, Carb Purge Front (model K5/k6/k7)

Hose, Carb Purge Front (model K5/k6/k7)

26-2

Hose, Cstr & Car (model K8/k9)

Hose, Cstr & Car (model K8/k9)

29-1

Стяжка L-140

Стяжка L-140

29-2

.clamp, Battery Cable

.clamp, Battery Cable

9

Подушка

Подушка

22

Болт

Болт

24

09351-14152-600

Protector, 14.5x (l:600->360)

Protector, 14.5x (l:600->360)

27

09351-14152-600

Protector, 14.5x (l:600->570)

Protector, 14.5x (l:600->570)

28

Clip (ca) Only

Clip (ca) Only
