Топливный бак Оригинальные запчасти для мотоциклов Suzuki DR-Z400SM (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

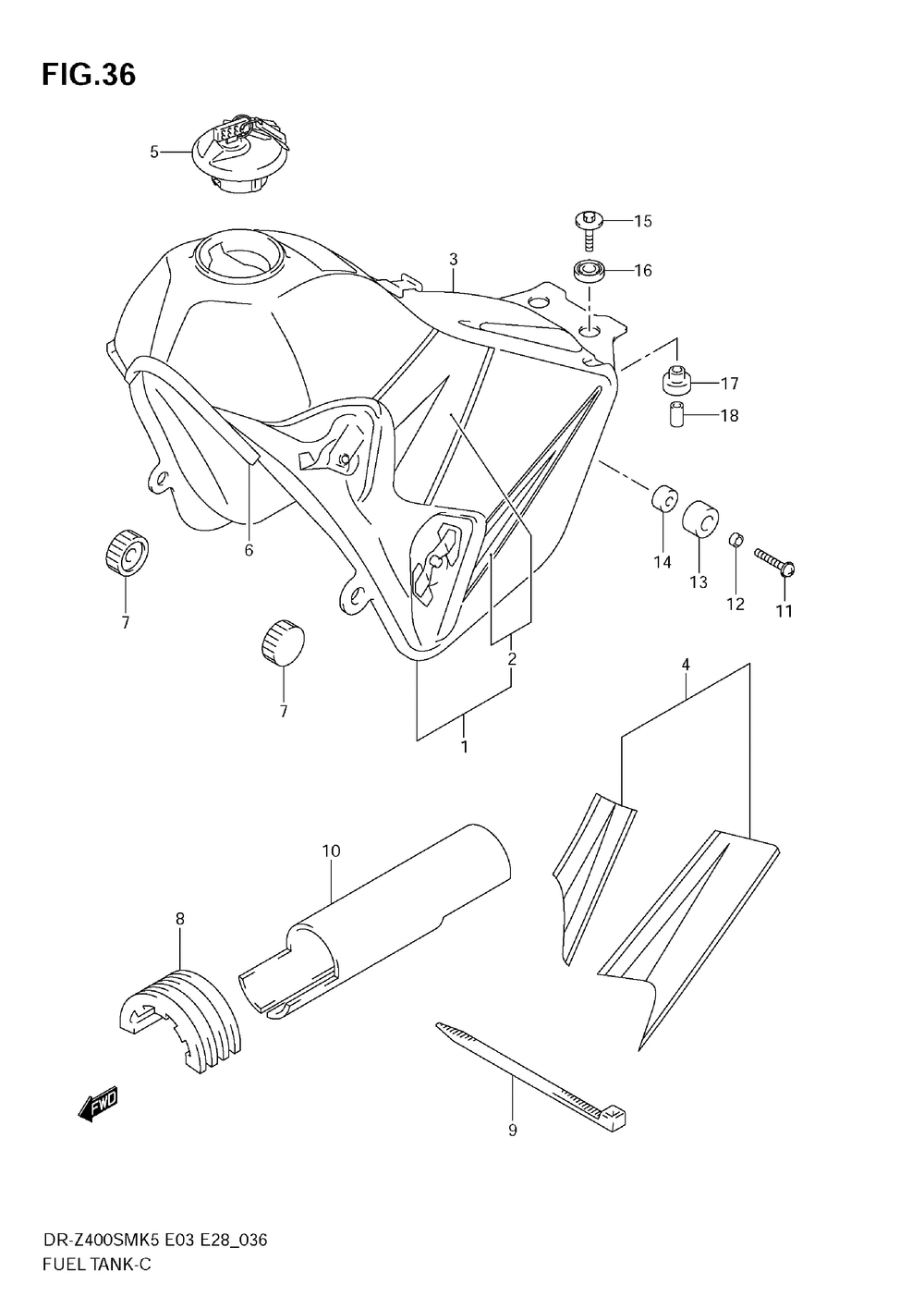

Топливный бак

Suzuki DR-Z400SM

Топливный бак

#

oem код

название

цена

1-1

49100-29F10-019

Tank Assy, Fuel (black) (model K5 E3,e28)

Tank Assy, Fuel (black) (model K5 E3,e28)

1-2

49100-29F10-YU1

Tank Assy, Fuel (yellow) (model K5 E3,e28)

Tank Assy, Fuel (yellow) (model K5 E3,e28)

1-3

49100-29F20-019

Tank Assy, Fuel( (model K5 E33)

Tank Assy, Fuel( (model K5 E33)

1-4

49100-29F20-YU1

Tank Assy, Fuel (yellow) (model K5 E33)

Tank Assy, Fuel (yellow) (model K5 E33)

2-1

68110-29FC0-BYK

.tape Set (model K5 For 019)

.tape Set (model K5 For 019)

2-2

68110-29FC0-AZR

.tape Set (model K5 For Yu1)

.tape Set (model K5 For Yu1)

3-1

49100-29F80-019

Tank Assy, Fuel (black) (model K6 E3,e28)

Tank Assy, Fuel (black) (model K6 E3,e28)

3-2

49100-29F80-YU1

Tank Assy, Fuel (yellow) (model K6 E3,e28)

Tank Assy, Fuel (yellow) (model K6 E3,e28)

3-3

49100-29F90-019

Tank Assy, Fuel (black) (model K6 E33)

Tank Assy, Fuel (black) (model K6 E33)

3-4

49100-29F90-YU1

Tank Assy, Fuel (yellow) (model K6 E33)

Tank Assy, Fuel (yellow) (model K6 E33)

4-1

68110-29FF0-CNM

.tape Set (model K6 For 019)

.tape Set (model K6 For 019)

4-2

68110-29FF0-CFK

.tape Set (model K6 For Yu1)

.tape Set (model K6 For Yu1)

5-1

Cap Set, Fuel Tank (e3,e28)

Cap Set, Fuel Tank (e3,e28)

5-2

Cap Set, Fuel Tank (e33)

Cap Set, Fuel Tank (e33)

6

68241-04X50-00B

Molding

Molding

7

Подушка

Подушка

8

Подушка

Подушка

9

Зажим

Зажим

10

Shield, Fuel Tank

Shield, Fuel Tank

12

Проставка

Проставка

13

Cushion, Side

Cushion, Side

14

Проставка

Проставка

15

Болт

Болт

16

Cushion, Upper

Cushion, Upper

17

Cushion, Lower

Cushion, Lower

18

Spacer ( Refer To Fig.36b(h- 7) For Model K9 )

Spacer ( Refer To Fig.36b(h- 7) For Model K9 )
