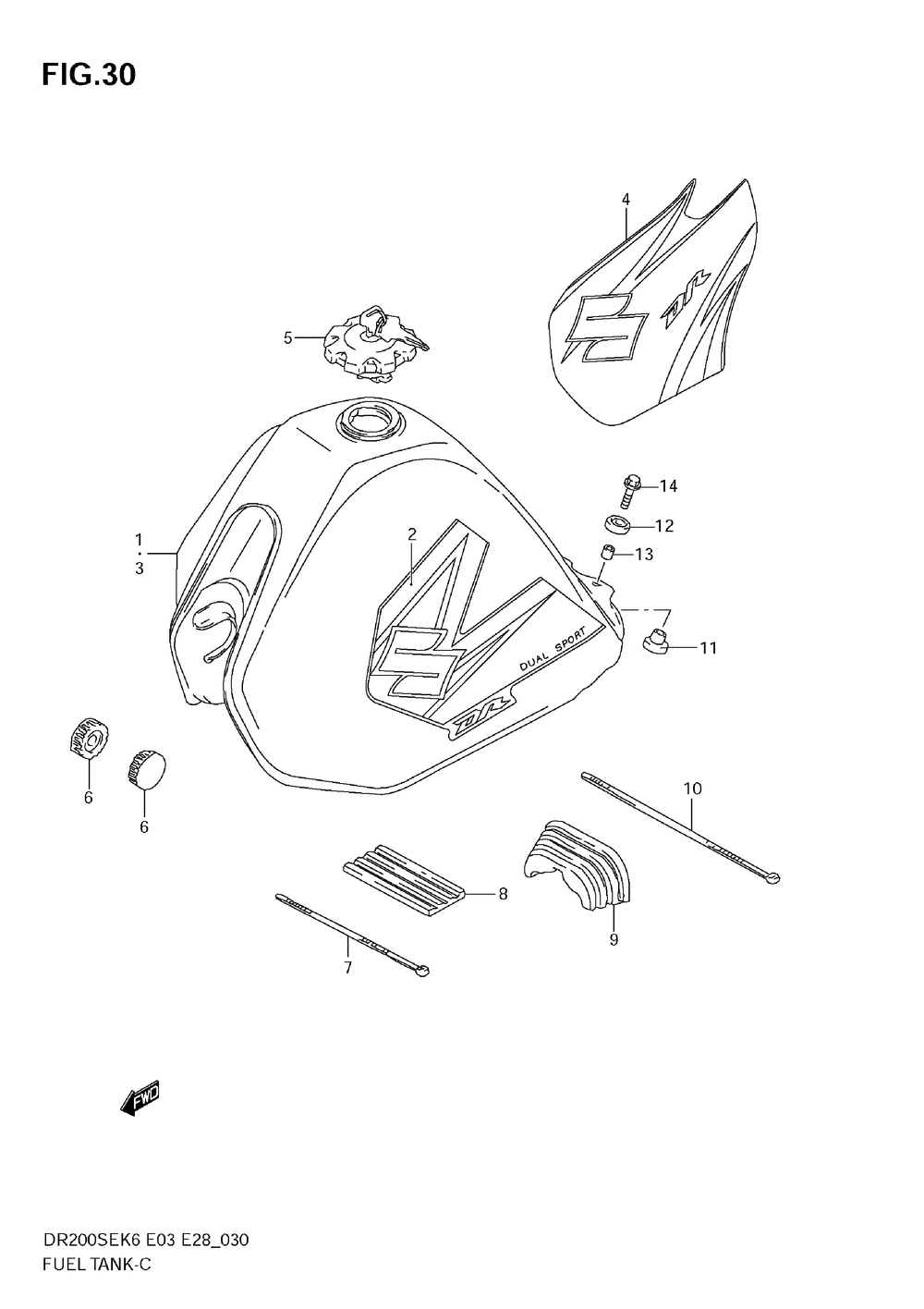

Топливный бак (model k6/k7) Оригинальные запчасти для мотоциклов Suzuki DR200SE (2009)

Топливный бак (model k6/k7)

Suzuki DR200SE

oem код

название

цена

1-1

44100-42AC0-YU1

Tank Assy, Fuel (yellow) (model K6 For Yu1)

1-2

44100-42AC0-YC2

Tank Assy, Fuel (blue) (model K6 For N9j)

1-3

44100-42AD0-YU1

Tank Assy, Fuel (yellow) (model K6 E33 For Yu1)

1-4

44100-42AD0-YC2

Tank Assy, Fuel (blue) (model K6 E33 For N9j)

2-1

68110-42A90-CET

.tape Set, Fuel Tank (model K6 For Yu1)

2-2

68110-42A90-CLK

.tape Set, Fuel Tank (model K6 For Yc2)

3-1

44100-42AE0-YU1

Tank Assy, Fuel (yellow) (model K7 For Yu1)

3-2

44100-42AE0-YC2

Tank Assy, Fuel (blue) (model K7 For N9j)

3-3

44100-42AF0-YU1

Tank Assy, Fuel (yellow) (model K7 E33 For Yu1)

3-4

44100-42AF0-YC2

Tank Assy, Fuel (blue) (model K7 E33 For N9j)

4-1

68110-42AA0-DRA

.tape Set (model K7 For Yu1)

4-2

68110-42AA0-DVM

.tape Set (model K7 For Yc2)

5-1

44200-12851

Cap Set, Fuel Tank

5-2

44200-05820

Cap Set, Fuel Tank (e33)

09329-10016

Подушка

09407-25402

.clamp

44541-14500

Cushion, Fuel Tank Upper

44542-14A00

Cushion, Fuel Tank Rear

Зажим

Cushion, Lower

Подушка

Проставка
