Картер Оригинальные запчасти для мотоциклов Suzuki DR650SE (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

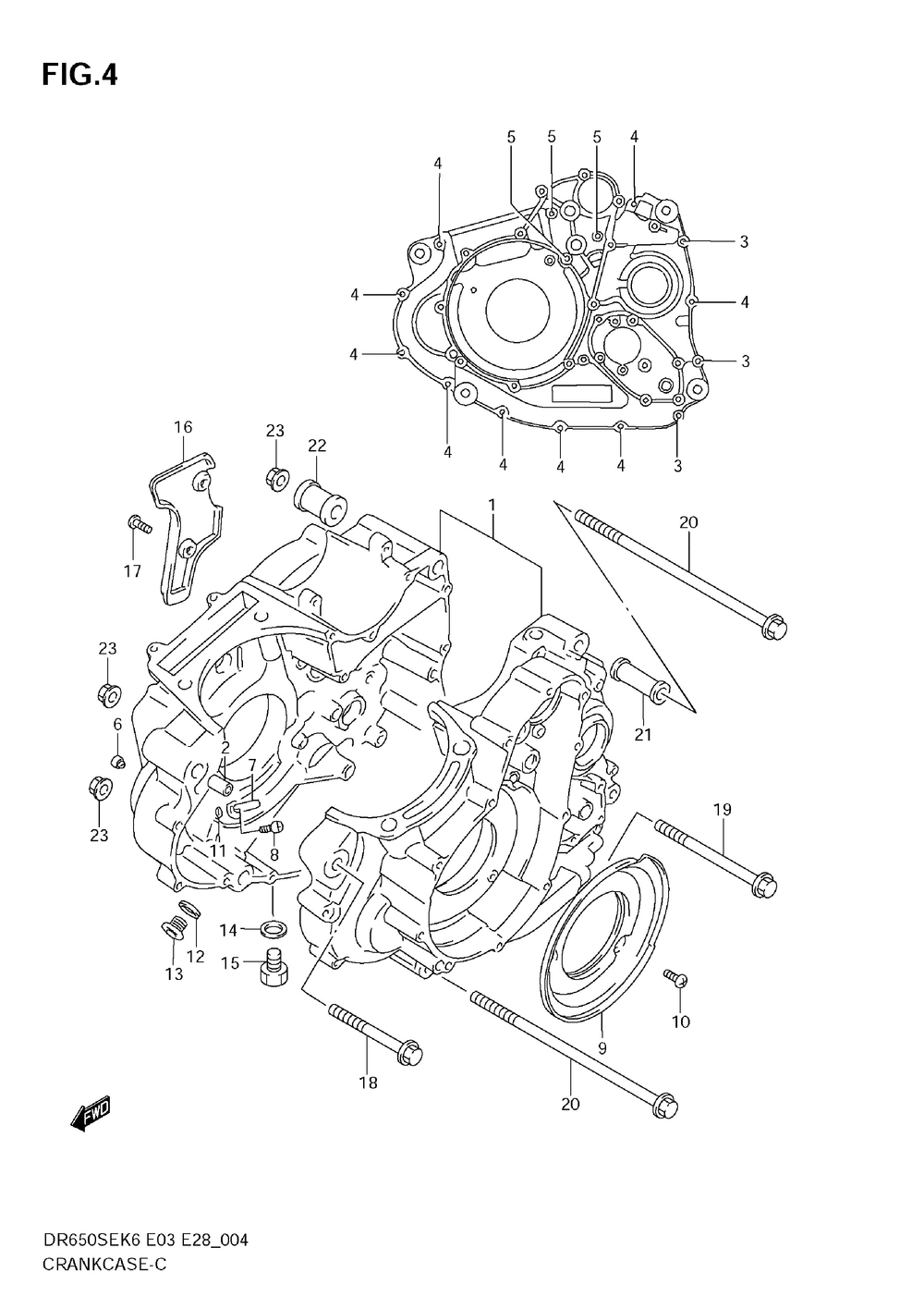

Картер

Suzuki DR650SE

Картер

#

oem код

название

цена

1-1

Crankcase Set (model K6)

Crankcase Set (model K6)

2

.pin, Idle Gear No.2 (l:27)

.pin, Idle Gear No.2 (l:27)

3

.bolt (l:60)

.bolt (l:60)

4

Bolt (6x40)

Bolt (6x40)

5-1

Bolt (model K6)

Bolt (model K6)

5-2

Bolt (model K7/k8/k9)

Bolt (model K7/k8/k9)

6

.jet, Oil Gallery

.jet, Oil Gallery

7

Jet, Piston Cooling

Jet, Piston Cooling

8

Болт

Болт

9

Separator, Oil Breather

Separator, Oil Breather

10-1

Screw (model K6)

Screw (model K6)

10-2

Screw (model K7/k8/k9)

Screw (model K7/k8/k9)

11

Кольцо

Кольцо

12

.gasket (14.1x18x1.5)

.gasket (14.1x18x1.5)

13

Plug, Cylinder Head

Plug, Cylinder Head

15

Plug, Oil Drain

Plug, Oil Drain

16

Крышка

Крышка

18

Bolt (10x100)

Bolt (10x100)

19

Bolt (10x130)

Bolt (10x130)

20

Bolt, Eng Mtg Lower

Bolt, Eng Mtg Lower

21

Spacer (l:65)

Spacer (l:65)

22

Spacer (l:27)

Spacer (l:27)

23

Гайка

Гайка

14

Прокладка

Прокладка

1-2

Crankcase Set (model K7/k8/k9)

Crankcase Set (model K7/k8/k9)

17-1

Screw (model K6)

Screw (model K6)

17-2

Screw (model K7/k8/k9)

Screw (model K7/k8/k9)
