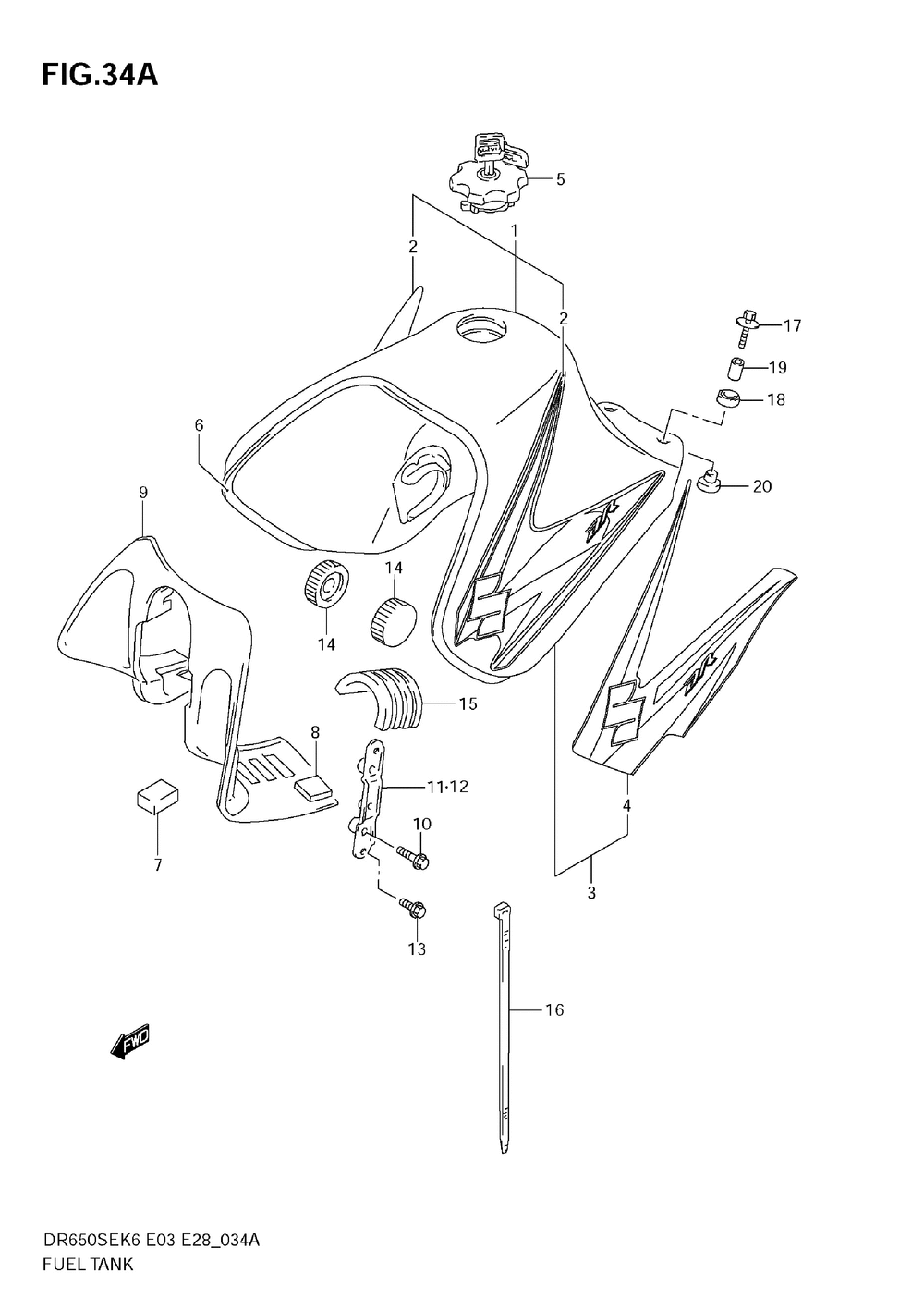

Топливный бак (model k8/k9) Оригинальные запчасти для мотоциклов Suzuki DR650SE (2009)

Топливный бак (model k8/k9)

Suzuki DR650SE

oem код

название

цена

1-1

44100-32EP0-019

Tank Assy, Fuel (model K8 For 019)

1-2

44100-32EP0-YKY

Tank Assy, Fuel (model K8 For Yky)

1-3

44100-32EQ0-019

Tank Assy, Fuel (model K8 E33 For 019)

1-4

44100-32EQ0-YKY

Tank Assy, Fuel (model K8 E33 For Yky)

2-1

68110-32EB0-FDC

Tape Set, Fuel T (model K8 For 019)

2-2

68110-32EB0-FDD

Tape Set, Fuel T (model K8 For Yky)

3-1

44100-32ER0-019

Tank Assy, Fuel (model K9 For 019)

3-2

44100-32ER0-30H

Tank Assy, Fuel (model K9 For 30h)

3-3

44100-32ES0-019

Tank Assy, Fuel (model K9 E33)

3-4

44100-32ES0-30H

Tank Assy, Fuel (model K9 E33)

4-1

68110-32EC0-GJB

Tape Set, Fuel T (model K9 For 019)

4-2

68110-32EC0-GJC

Tape Set, Fuel T (model K9 For 30h)

5-1

44200-13830

Cap Set, Fuel Tank

5-2

44200-05820

Cap Set, Fuel Tank (e33)

68241-32E00

Molding

51827-01A00

Cushion, Reservoir Tank Rh

Cushion, Tank Cover

Крышка

Болт

Bracket, Front Cover Rh

44290-32E00

Bracket, Front Cover Lh

Болт

Подушка, передняя

Cushion, Upper Rear

.clamp

Болт

Cushion, Upper

Проставка

Cushion, Lower
