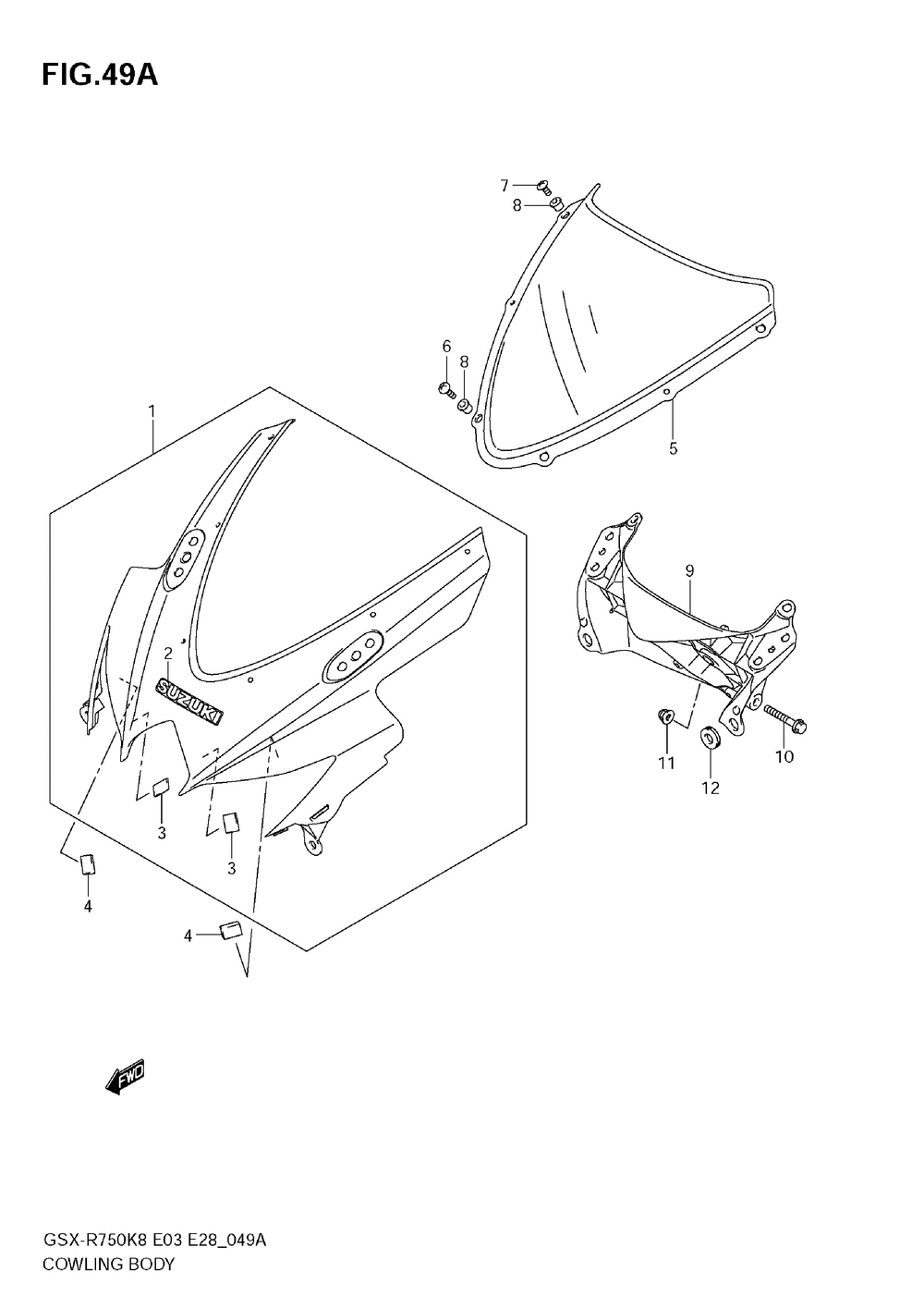

Cowling body (model k9)

Suzuki GSX-R750

Cowling body (model k9)

#

oem код

название

цена

1-1

94401-37H10-019

Body Assy, Cowli (for Cru)

Body Assy, Cowli (for Cru)

1-2

94401-37H10-YPA

Body Assy, Cowli (for Eah)

Body Assy, Cowli (for Eah)

1-4

94401-37H10-YSF

Body Assy, Cowli (for Glr)

Body Assy, Cowli (for Glr)

2-1

68641-19F00-YU8

.emblem (gray) (for 019)

.emblem (gray) (for 019)

2-2

68641-19F00-17U

.emblem, Rear (gray) (for Ypa)

.emblem, Rear (gray) (for Ypa)

2-3

68281-24F10-019

.emblem (black) (for Ymg)

.emblem (black) (for Ymg)

2-4

68641-19F00-YBD

Emblem, "suzuki" (for Ysf)

Emblem, "suzuki" (for Ysf)

3

Fastener, Cowlin

Fastener, Cowlin

4

Cushion, Body Co

Cushion, Body Co

5

Стекло

Стекло

6

Винт

Винт

7

Screw, Rear

Screw, Rear

8

.nut, Air Intk Inner Guide

.nut, Air Intk Inner Guide

9

Brace, Cowling

Brace, Cowling

10

Bolt, Oil Pump (s)

Bolt, Oil Pump (s)

11

Гайка

Гайка

12

.grommet ( : Glr=ybd(white), Ysf(blue) )

.grommet ( : Glr=ybd(white), Ysf(blue) )

9

Brace, Cowling

Brace, Cowling
