Rear master cylinder (gsx1300bkk8/k9) Оригинальные запчасти для мотоциклов Suzuki GSX1300BK,A B-KING (2009)

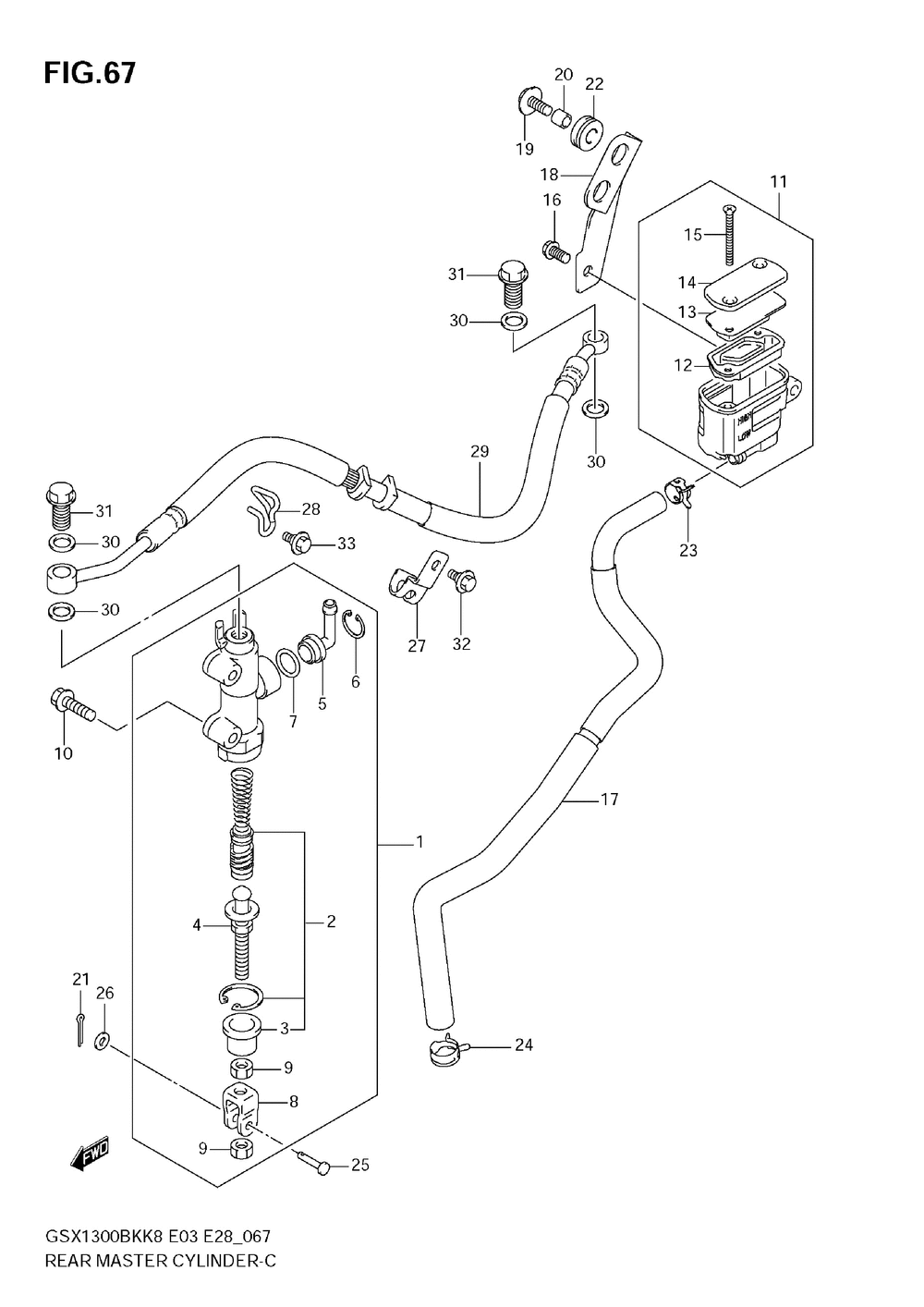

Rear master cylinder (gsx1300bkk8/k9)

Suzuki GSX1300BK,A B-KING

oem код

название

цена

Cylinder Assy, R

.piston / Cap Set

..boot

.rod, Push

.connector

.circlip

Кольцо

.yoke

Гайка

Screw, Rear

Tank Assy, Reser

.diaphragm

.plate, Diaphragm

Колпачек

Винт

Болт

Hose, Rr Reservo

Bracket, Rr Rese

Bolt (6x16)

Spacer ( Bracket )

.shaft, Shallow Drive Arm

09320-08021

.cushion, 8.5x20x8 ( Refer To Fig.67a(j- 8) For Gsx1300bkak8/ak9 )

Зажим

Зажим

Шплинт

Шайба

Guide, Rear Brak

Clamp, Rear Brak

Hose, Rear Brake

Washer (10x15x1.5)

Bolt, Fr Macter Cylinder

01550-0612A

Bolt ( Refer To Fig.67a(j- 8) For Gsx1300bkak8/ak9 )

01547-0612A

Болт
