Сцепление Оригинальные запчасти для мотоциклов Suzuki GSX1300R Hayabusa (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

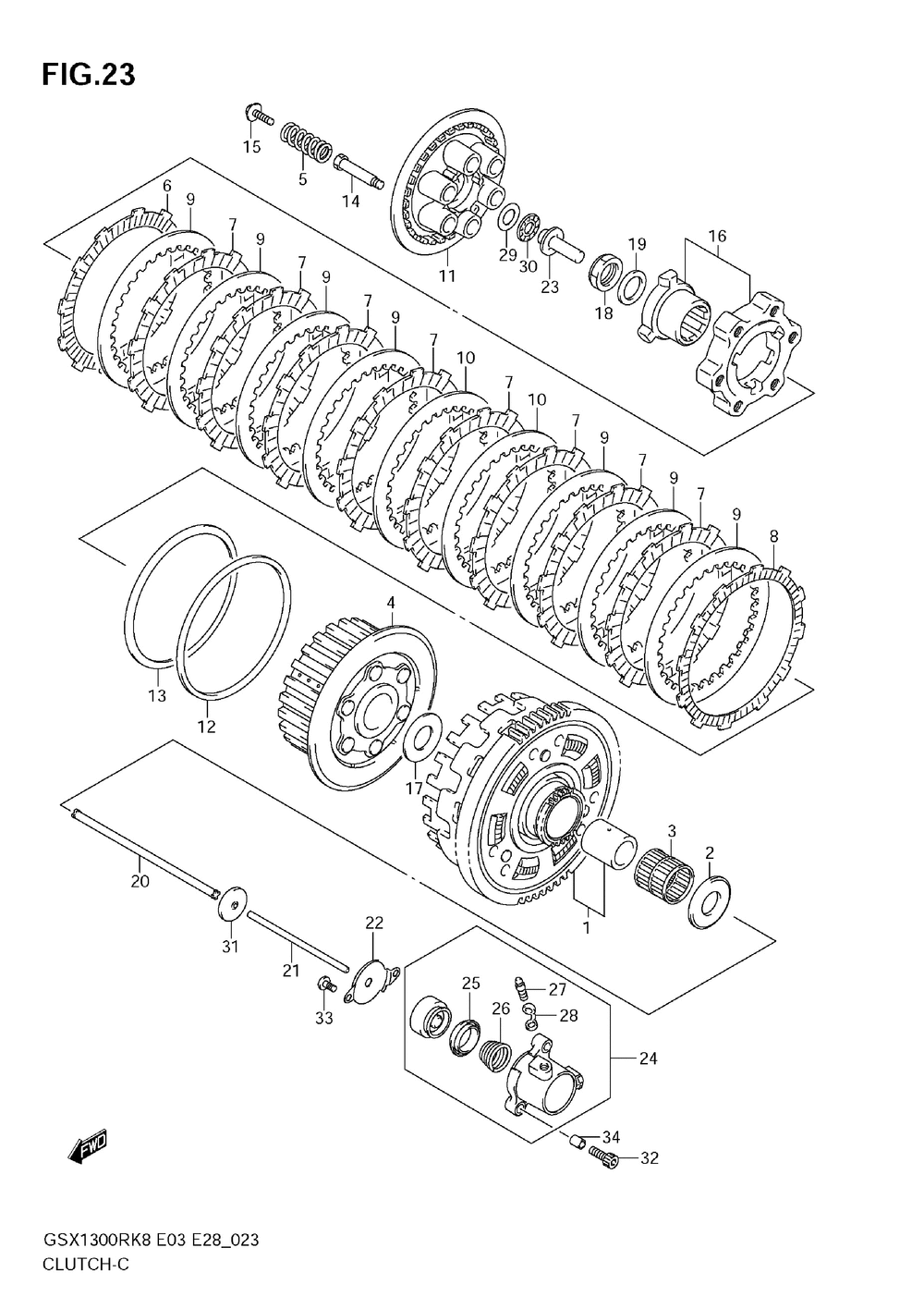

Сцепление

Suzuki GSX1300R Hayabusa

Сцепление

#

oem код

название

цена

1

Gear Assy, Prima (nt:83)

Gear Assy, Prima (nt:83)

2

Washer (25x54x2.4) (25x54x2.4)

Washer (25x54x2.4) (25x54x2.4)

3

Bearing (35x40x39.8) (35x40x39.8)

Bearing (35x40x39.8) (35x40x39.8)

4

Hub, Clutch Sleeve

Hub, Clutch Sleeve

5

Пружина

Пружина

6

Plate, Clutch Drive, No.2 (t:3.8)

Plate, Clutch Drive, No.2 (t:3.8)

7

Plate, Clutch Drive, No.1 (t:3.0)

Plate, Clutch Drive, No.1 (t:3.0)

8

Plate, Clutch Drive No.3 (t:3.8)

Plate, Clutch Drive No.3 (t:3.8)

9

Plate, Clutch Driven No.1 (t:2.0)

Plate, Clutch Driven No.1 (t:2.0)

10

Plate, Clutch Driven No.2 (t:2.3)

Plate, Clutch Driven No.2 (t:2.3)

11

Disk, Clutch Pressure

Disk, Clutch Pressure

12

Seat, Wave Washer

Seat, Wave Washer

13

Washer, Clutch Plate Wave

Washer, Clutch Plate Wave

14

Bolt, Clutch Spr

Bolt, Clutch Spr

15

Bolt, Clutch Spr

Bolt, Clutch Spr

16

Cam Set, Clutch

Cam Set, Clutch

17

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

18

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

19

Washer (24.2x35x2)

Washer (24.2x35x2)

20

Rod, Clutch Push, Rh

Rod, Clutch Push, Rh

21

Rod, Clutch Push, Lh

Rod, Clutch Push, Lh

22

Cover, Cylinder

Cover, Cylinder

23

Piece, Clutch Push

Piece, Clutch Push

24

Cylinder, Clutch

Cylinder, Clutch

25

.cup

.cup

26

Пружина

Пружина

27

Штуцер перепускной

Штуцер перепускной

28

.cap, Bleeder

.cap, Bleeder

29

Washer (15.5x28x1) (15.5x28x1.0)

Washer (15.5x28x1) (15.5x28x1.0)

30

Bearing (15x28x2) (15x28x2.0)

Bearing (15x28x2) (15x28x2.0)

31

Oil Seal (6x34x5.5) (6x34x5.5)

Oil Seal (6x34x5.5) (6x34x5.5)

32

Винт

Винт

33

Винт

Винт

34

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl
