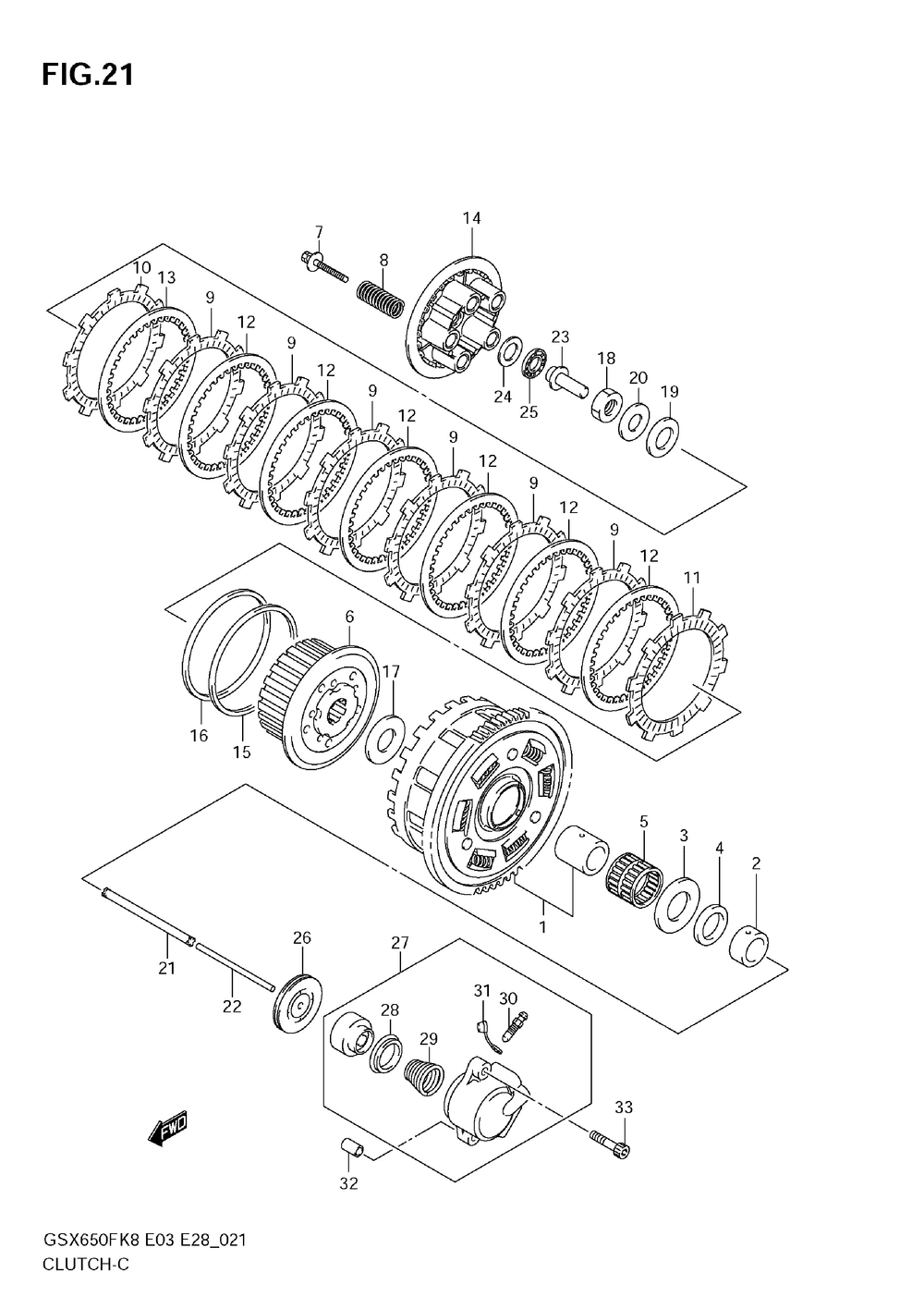

Сцепление

Suzuki GSX650F

Сцепление

#

oem код

название

цена

1

Gear Assy, Prima (nt:85)

Gear Assy, Prima (nt:85)

2

Spacer, Oil Pump Drive

Spacer, Oil Pump Drive

3

Washer (25x54x2.4)

Washer (25x54x2.4)

4

Washer, 25x30x3

Washer, 25x30x3

5

Bearing (35x40x26.8)

Bearing (35x40x26.8)

6

Hub, Clutch Slee

Hub, Clutch Slee

7

Bolt, Clutch Spring

Bolt, Clutch Spring

8

Пружина

Пружина

9

Plate, Clutch Dr

Plate, Clutch Dr

10

Plate, Clutch Sleeve

Plate, Clutch Sleeve

11

Plate, Clutch Drive No.3

Plate, Clutch Drive No.3

12

Plate, Clutch Dr (t:2.6)

Plate, Clutch Dr (t:2.6)

13

Plate, Clutch Dr (t:2.3)

Plate, Clutch Dr (t:2.3)

14

Disc, Clutch Pressure

Disc, Clutch Pressure

15

Seat, Wave Washer

Seat, Wave Washer

16

Washer, Clutch Plate

Washer, Clutch Plate

17

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

18

Nut, Clutch Sleeve Hub

Nut, Clutch Sleeve Hub

19

Washer, Clutch Sleeve Nut (25x38x1)

Washer, Clutch Sleeve Nut (25x38x1)

20

Washer (24.2x35x2) (24.2x35x2)

Washer (24.2x35x2) (24.2x35x2)

21

Rod, Clutch Push, Rh (l:161)

Rod, Clutch Push, Rh (l:161)

22

Rod, Clutch Push (l:138)

Rod, Clutch Push (l:138)

23

Piece, Clutch Push

Piece, Clutch Push

24

Washer (15.5x28x1) (15.5x28x1)

Washer (15.5x28x1) (15.5x28x1)

25

Bearing (15x28x2) (15x28x2)

Bearing (15x28x2) (15x28x2)

26

Seal, Oil, 6x34x5 (6x34x5.5)

Seal, Oil, 6x34x5 (6x34x5.5)

27

Cylinder, Clutch

Cylinder, Clutch

28

.cup

.cup

29

Пружина

Пружина

30

Штуцер перепускной

Штуцер перепускной

31

.cap, Bleeder

.cap, Bleeder

32

Pin, Cl Rlse Cyl

Pin, Cl Rlse Cyl

33

Bolt (6x30)

Bolt (6x30)
