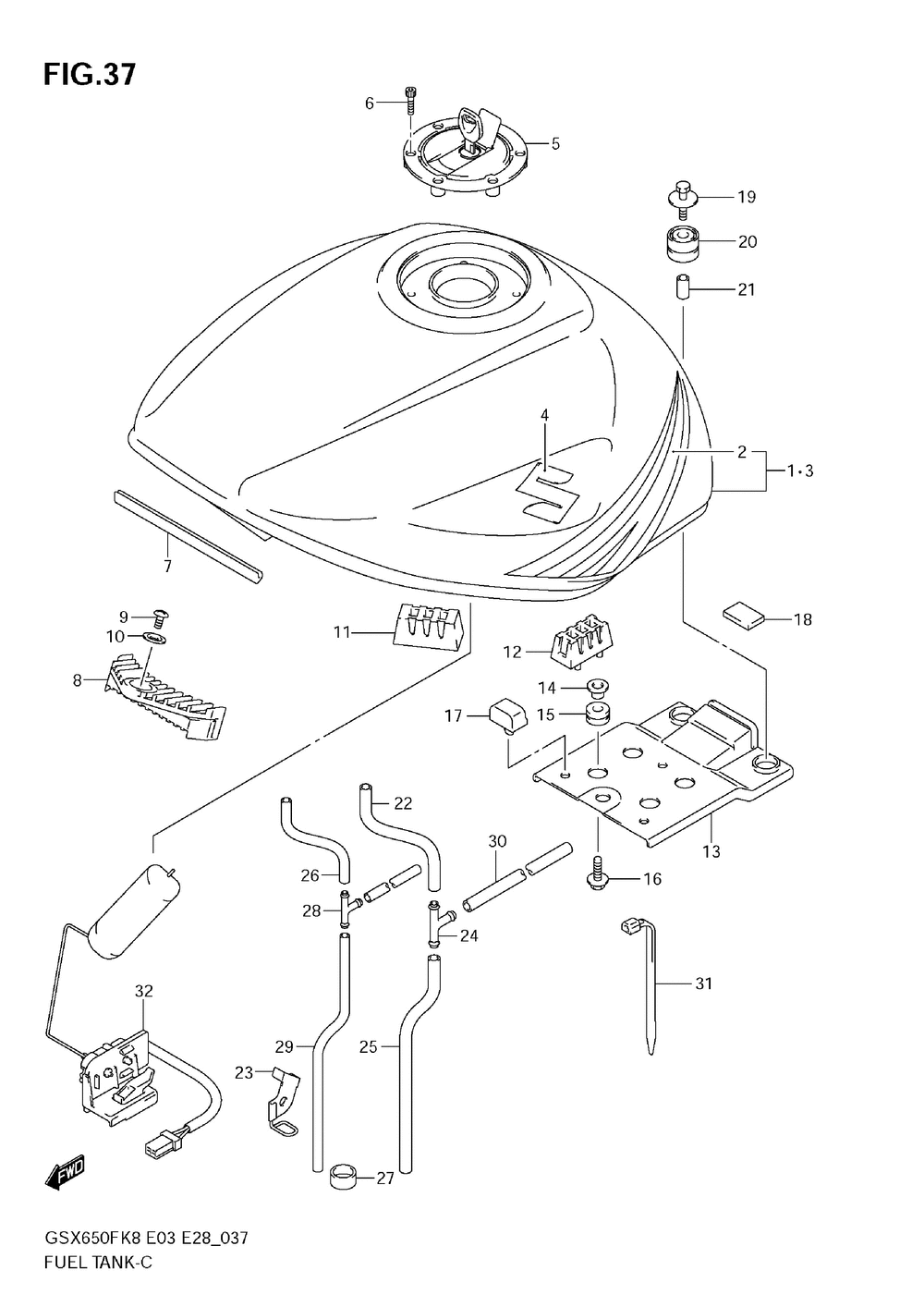

Топливный бак (model k8) Оригинальные запчасти для мотоциклов Suzuki GSX650F (2009)

Топливный бак (model k8)

Suzuki GSX650F

oem код

название

цена

1-1

44100-17H00-YKY

Tank Assy, Fuel (e3, E28 For Cwh)

1-2

44100-17H00-YAY

Tank Assy, Fuel (e3, E28 For Egr)

1-3

44100-17H20-YKY

Tank Assy, Fuel (e33 For Cwh)

1-4

44100-17H20-YAY

Tank Assy, Fuel (e33 For Egr)

2-1

68110-17H00-FJF

Tape Set, Fuel T (for Yky)

2-2

68110-17H00-FJG

Tape Set, Fuel T (for Yay)

44100-18H00-YAY

Tank Assy, Fuel (e28 For Yay)

68111-18G20

Эмблема

5-1

44200-16850

Cap Set, Fuel Tank (e3,e28)

5-2

44200-16870

Cap Set, Fuel Tank (e33)

Болт

Molding, Cover

Подушка, передняя

Винт

Шайба

.cushion

Cushion, Fuel Tank Side

Bracket, Fuel Ta

Шайба

Подушка

Болт (6X20)

Подушка

Подушка

Болт

Cushion, Fuel Ta

Spacer ( Refer To Fig.37a(f- 7) Model K9 )

44423-16G10

Hose, Water Drain

09367-08004

3 Way, Drain Hose

09352-70103-600

Cushion, R/con Cable Stopper

Hose, Vacuum

Hose, 13.5x16.5x

3 Way, Water Hose

Шланг

Шланг

.clamp, Battery Cable

34810-18H00

Gauge Assy, Fuel ( Refer To Fig.37a(f- 7) Model K9 )

44420-44AR0

Hose, 5x8.2x600
