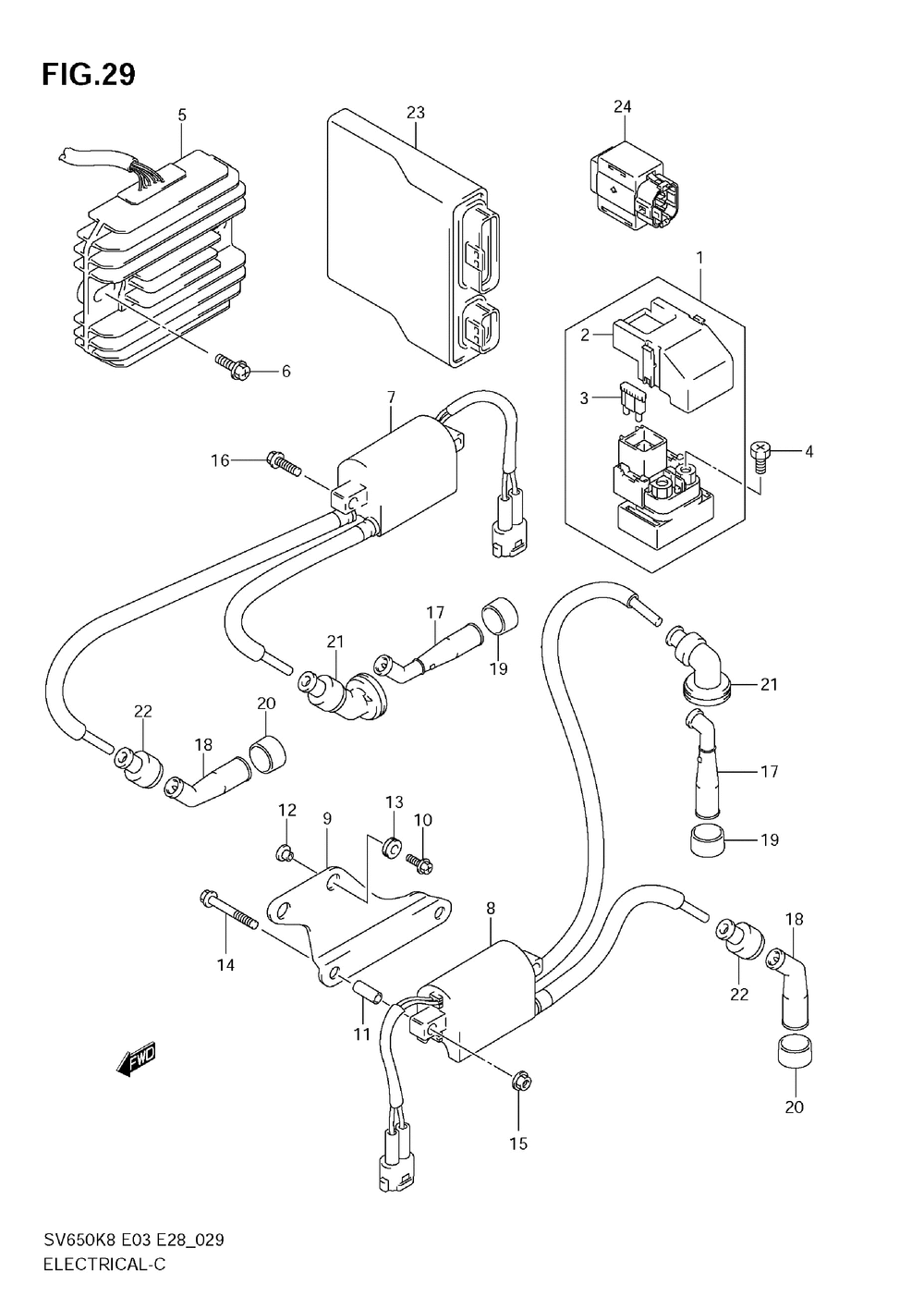

ЭЛЕКТРИКА

Suzuki SV650,S,A,F
Suzuki
#oem кодцена
1
31800-06G00
Relay Assy, Starting Motor
2
31861-47E00
.cover
3
09481-30101
.fuse (30a)
4
09128-06013
Bolt, Starting Motor (6x8)
5
32800-16G01
Регулятор напряжения
6
02162-0620B
Винт
7
33410-17GA0
Coil Assy, Ignition (l:380) (for Front)
8
33420-17GA0
Coil Assy, Ignition (l:350) (for Rear)
9
33424-17GA0
Bracket, Ign Coil Rear
10
09116-06130
Bolt, Air Cleaner Front
11
09180-06195
Spacer, Ign Coil Rear (6.4x10x18)
12
09180-06325
Spacer, Ign Coil Brkt (6.2x8.4x6.9)
13
09320-06017
Cushion, Ign Coil Brkt
14
01547-0640A
Болт
15
08316-1006A
Гайка
16
01547-0625A
Bolt, Belt Cooling Duct
17
33510-17G00
Cap Assy, Spark Plug (center)
18
33510-20E00
Cap Assy, Spark (side)
19
33541-23E10
Seal, Spark Plu
20
33541-47D00
Seal, Spark Plug Cap (side)
21
33542-17G01
Seal, High Tensi
22
33542-38B00
Seal, High Tension Cord
23-1
32920-17GC0
Control Unit, Fi (e3/e28)
23-2
32920-17GD0
Control Unit, Fi (e33)
24
33960-06G10
Sensor Assy, Fuel Cut
