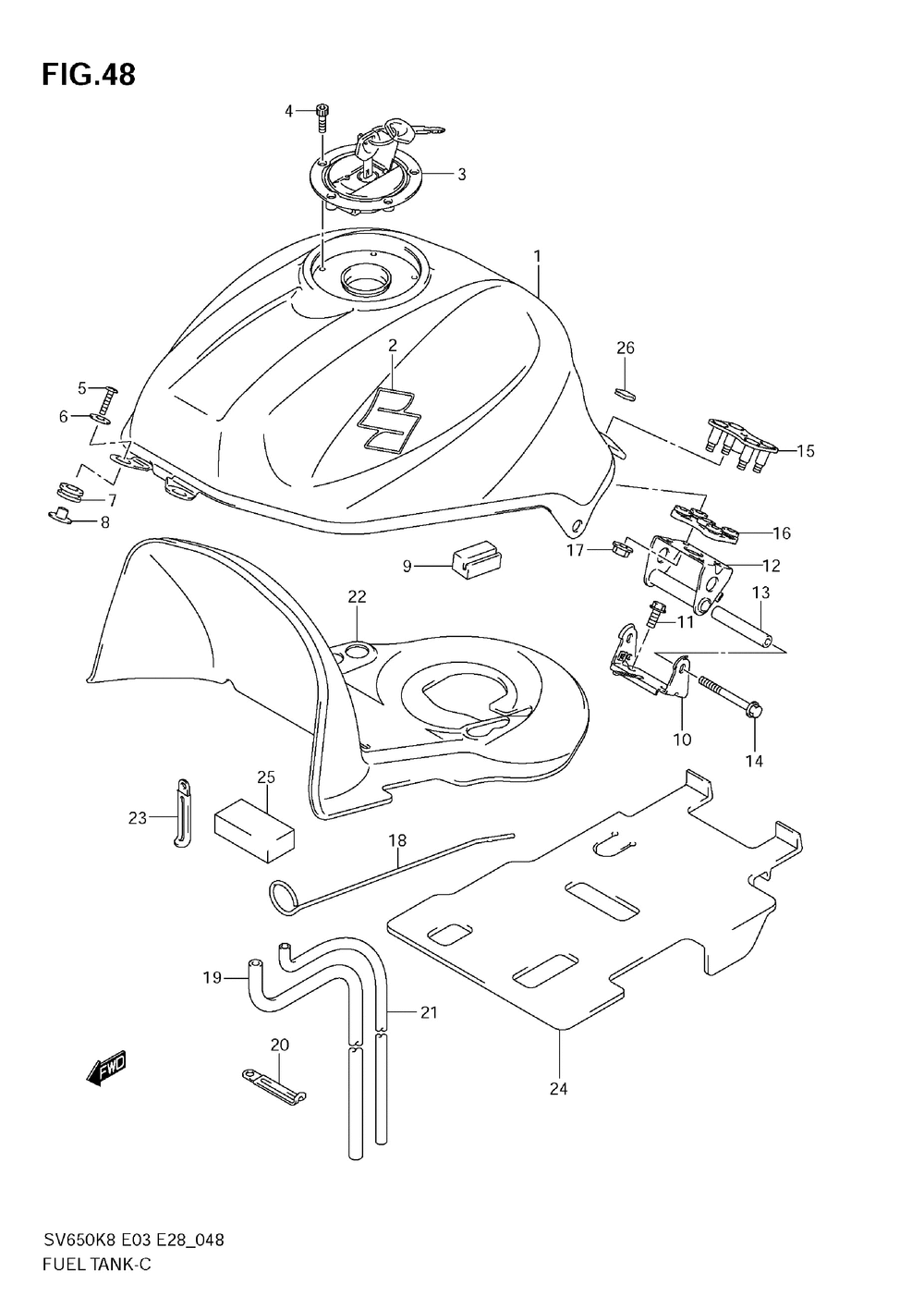

Топливный бак (model k8) Оригинальные запчасти для мотоциклов Suzuki SV650,S,A,F (2009)

Топливный бак (model k8)

Suzuki SV650,S,A,F

oem код

название

цена

1-1

44100-16G60-YAY

Tank Assy, Fuel (black) (e3,e28)

1-2

44100-16G60-YKZ

Tank Assy, Fuel (e3, E28)

1-3

44100-16G60-YLF

Tank Assy, Fuel( (e3, E28)

1-5

44100-16G81-YAY

Tank Assy, Fuel (black) (e33)

1-6

44100-16G81-YKZ

Tank Assy, Fuel( (e33)

1-7

44100-16G81-YLF

Tank Assy, Fuel( (e33)

68111-18G20

Эмблема

3-1

44200-16850

Cap Set, Fuel Tank (e3,e28)

3-2

44200-16860

Cap Set, Fuel Tank (e33)

Болт

Винт

Шайба

Подушка

Проставка

Cushion, Side

Bracket, Rear

Болт

Bracket, Center

Spacer, Joint

Bolt, Joint

Кронштейн, задний верхний

44542-16G00

Подушка

08319-3106B

Nut ( Refer To Fig.48a(f- 7) For Model K9 )

Stay, Fuel Tank

Hose, Water Drain

Clamp (l:95)

Трубка,резина

Shield, Tank Heat

24-1

44271-16G10

Sheet, Heat Rubber (without Abs)

44545-16G00

Cushion, Tank

68241-16G00

Molding, Tank ( Refer To Fig.48a(f- 7) For Model K9 )
