Shifting Оригинальные запчасти для мотоциклов Suzuki VL800,C,T Boulevard C50 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

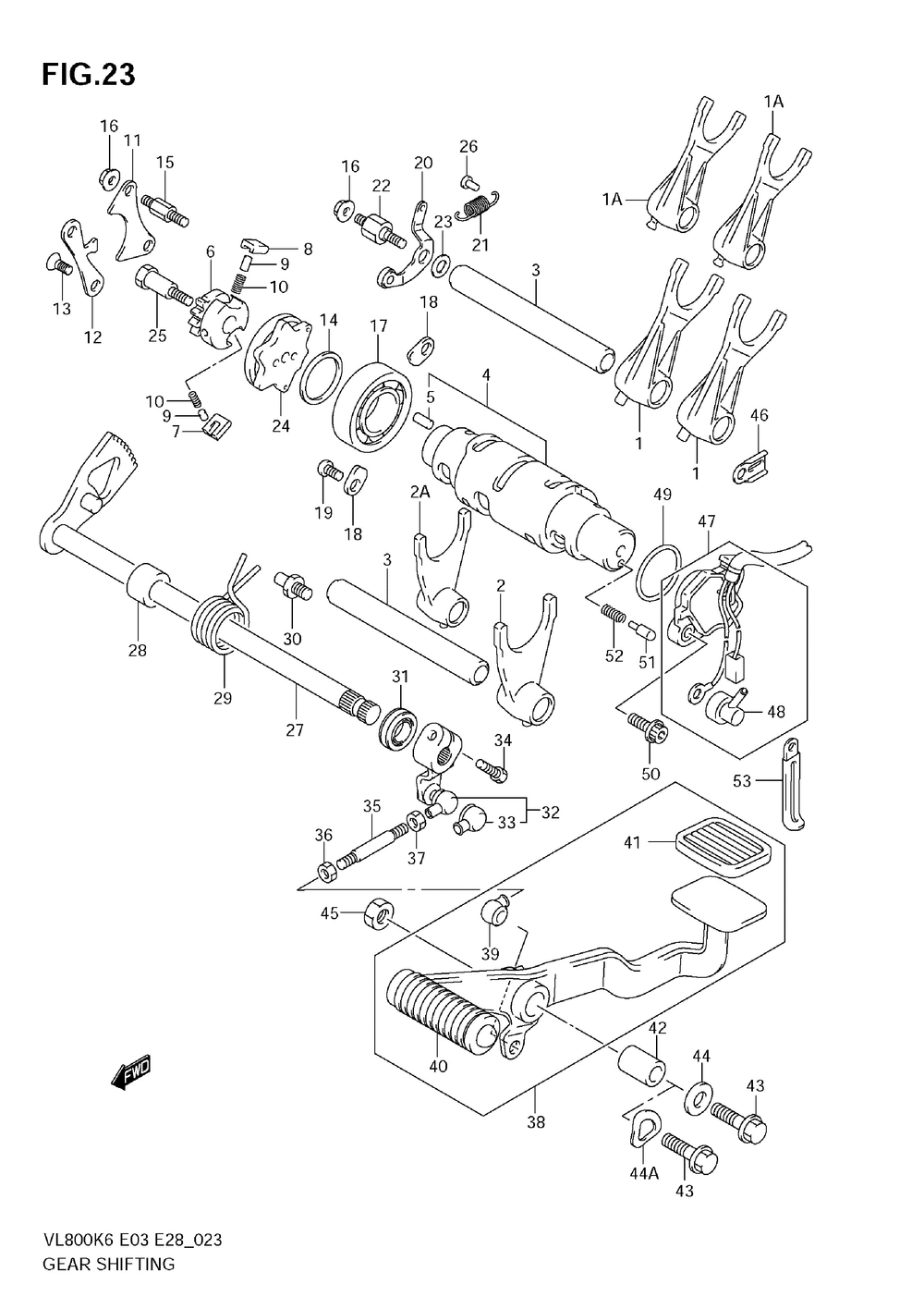

Shifting

Suzuki VL800,C,T Boulevard C50

Shifting

#

oem код

название

цена

1

Fork, Gear Shifting No.1 (model K6/k7/k8)

Fork, Gear Shifting No.1 (model K6/k7/k8)

1A

Fork, Gear Shift (model K9)

Fork, Gear Shift (model K9)

2

Fork, Gear Shifting No.2 (model K6/k7/k8)

Fork, Gear Shifting No.2 (model K6/k7/k8)

2A

Fork, Gear Shift (model K9)

Fork, Gear Shift (model K9)

3

Shaft, Gear Shifting Fork

Shaft, Gear Shifting Fork

4

Cam, Gear Shifting

Cam, Gear Shifting

5

Штифт

Штифт

6

Gear, Gear Shift Cam Driven

Gear, Gear Shift Cam Driven

7

Pawl, Gear Shift, No.1

Pawl, Gear Shift, No.1

8

Pawl, Gear Shift, No.2

Pawl, Gear Shift, No.2

9

Pin, Shift Pole (5x8)

Pin, Shift Pole (5x8)

10

Spring, Shift Pawl Return

Spring, Shift Pawl Return

11

Lifter, Pawl

Lifter, Pawl

12

Бегунок

Бегунок

13

Screw, Drive Shaft (6x12)

Screw, Drive Shaft (6x12)

14

Washer (25x32x3)

Washer (25x32x3)

15

Boss, Shift Pawl Lifter

Boss, Shift Pawl Lifter

16

Гайка

Гайка

17

Bearing (25x47x8)

Bearing (25x47x8)

18

Retainer, Shift Cam Bearing

Retainer, Shift Cam Bearing

19

Screw, Shift Cam (6x12)

Screw, Shift Cam (6x12)

20

Стопор

Стопор

21

Пружина

Пружина

22

Support, Cam Stopper

Support, Cam Stopper

23

Шайба

Шайба

24

Plate, Stopper

Plate, Stopper

25

Pin, Shift Cam

Pin, Shift Cam

26

Rivet, Spring Stopper

Rivet, Spring Stopper

27

Shaft, Gear Shifting

Shaft, Gear Shifting

28

Spacer (12x20x15.3)

Spacer (12x20x15.3)

29

Пружина

Пружина

30

Stopper, Return Spring

Stopper, Return Spring

31

Oil Seal (12x22x9)

Oil Seal (12x22x9)

32

Arm, Gear Shift Link

Arm, Gear Shift Link

33

.cover, Dust

.cover, Dust

34

Болт

Болт

35

Rod, Gear Shift

Rod, Gear Shift

36

Гайка

Гайка

37

Гайка

Гайка

38-1

Lever Assy, Gear Shift (model K6/k7/k8)

Lever Assy, Gear Shift (model K6/k7/k8)

38-2

Lever Assy, Gear (model K9)

Lever Assy, Gear (model K9)

40

.rubber, Gear Fr

.rubber, Gear Fr

41

.rubber, Gear Rr

.rubber, Gear Rr

42

Spacer, Gear Shift

Spacer, Gear Shift

43

Bolt, Gear Shift

Bolt, Gear Shift

44

Washer (model K6/k7/k8)

Washer (model K6/k7/k8)

44A

Washer (model K9)

Washer (model K9)

45

Гайка

Гайка

46

Clamp, Gear Shift

Clamp, Gear Shift

47

Base Assy, Gear Shift Term

Base Assy, Gear Shift Term

48

49

O Ring (d:2.4 Id:26.2)

O Ring (d:2.4 Id:26.2)

50

Болт

Болт

51

Contact

Contact

52

Пружина

Пружина

53

Зажим

Зажим
