E cover (model k9) Оригинальные запчасти для мотоциклов Suzuki VL800,C,T Boulevard C50 (2009)

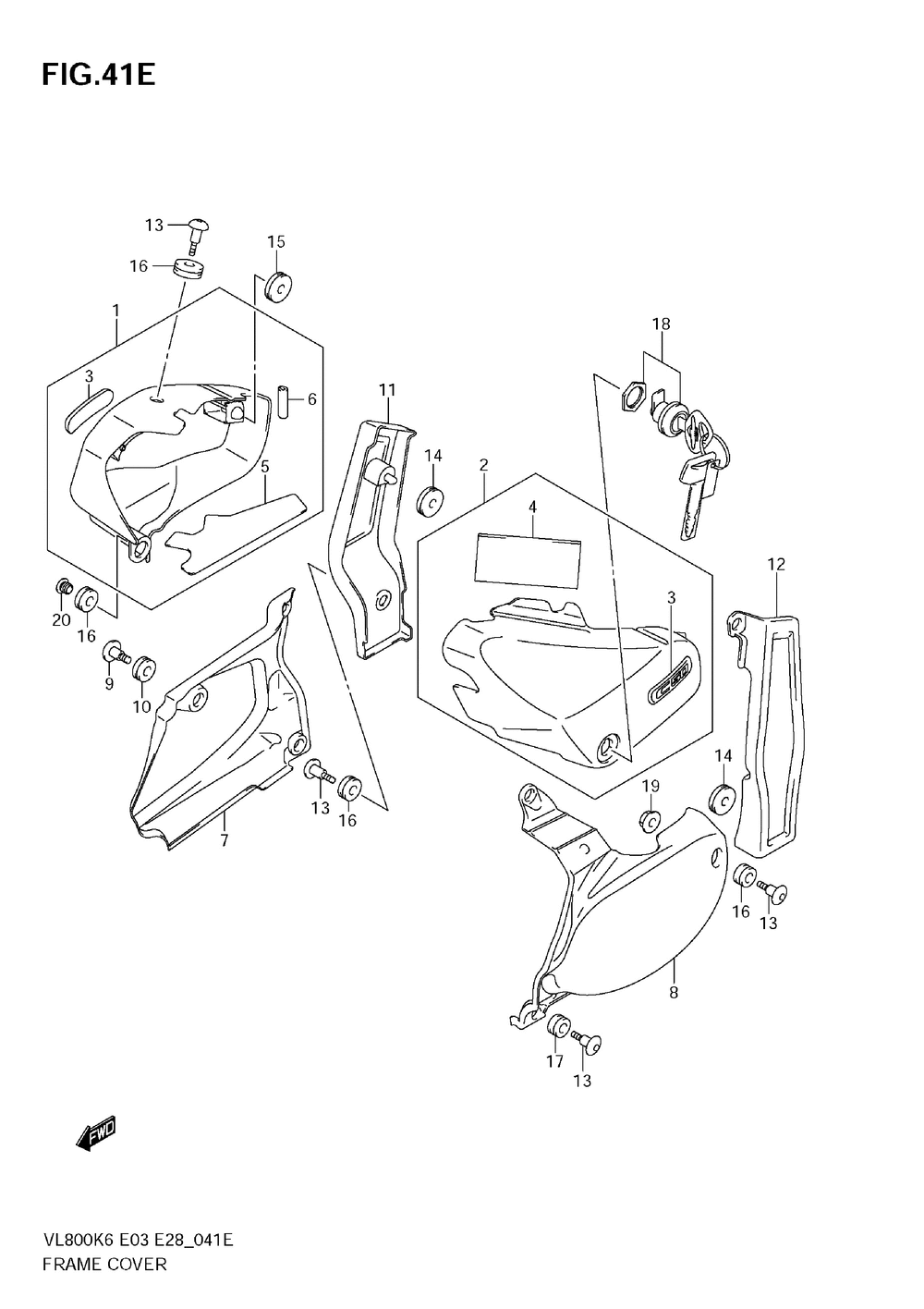

E cover (model k9)

Suzuki VL800,C,T Boulevard C50

oem код

название

цена

1-1

47110-41FT0-YAY

Cover Comp, Side (vl800 E3, E28)

1-2

47110-41FT0-YMK

Cover Comp, Side (vl800 E3, E28)

1-3

47110-41FT0-YLF

Cover Comp, Side (vl800c E3, E28 For Gdv )

1-4

47110-41FT0-YRE

Cover, Side, R(gr (vl800c E3, E28 For Gdu )

1-5

47110-41FN0-YAY

Cover Comp, Side (vl800t E3, E28 For Fke )

1-6

47110-41FN0-YRC

Cover Comp, Side (vl800t E3, E28 For Gdt )

1-7

47110-41FM0-YAY

Cover Comp, Side (vl800 E33)

1-8

47110-41FM0-YMK

Cover Comp, Side (vl800 E33)

1-9

47110-41FM0-YLF

Cover Comp, Side (vl800 E33 For Gdv)

1-10

47110-41FM0-YRE

Cover, Side, R(gr (vl800c E33 For Gdu)

1-11

47110-41FP0-YAY

Cover Comp, Side (vl800t E33 For Fke)

1-12

47110-41FP0-YRC

Cover Comp, Side (vl800t E33 For Gdt)

2-1

47210-41FL0-YAY

Cover Comp, Side (vl800)

2-2

47210-41FL0-YMK

Cover Comp, Side (vl800)

2-3

47210-41FL0-YLF

Cover Comp, Side (vl800c For Gdv)

2-4

47210-41FL0-YRE

Cover, Side, L(gr (vl800c For Gdu)

2-5

47210-41FM0-YAY

Cover Comp, Side (vl800t For Fke)

2-6

47210-41FM0-YRC

Cover Comp, Side (vl800t For Gdt)

3-1

68131-41F40

.emblem, C50 (vl800/c)

3-2

68131-41F50

.emblem, C50t (vl800t)

47217-41F00

Cushion, Luggage

47166-41F00

Shield, Frame Cover Rh

Molding

Cover, Side Lower Rh

Cover, Side Lower Lh

Screw, Side Cove

.cushion, 8.5x20x8 ( : Gdu=yre(green),ymd(white) )

47141-41F01-019

Cover, Side Rear Rh (black)

47241-41F00-019

Cover, Side Rear Lh (black)

Screw, Brace

Cushion, Brace

.grommet

Cushion, Lower

Cushion Box Front

Lock Set, Fuel Lid

Гайка

Заглушка
