Frame cover (model k8) Оригинальные запчасти для мотоциклов Suzuki VLR1800,T Boulevard C109R (2009)

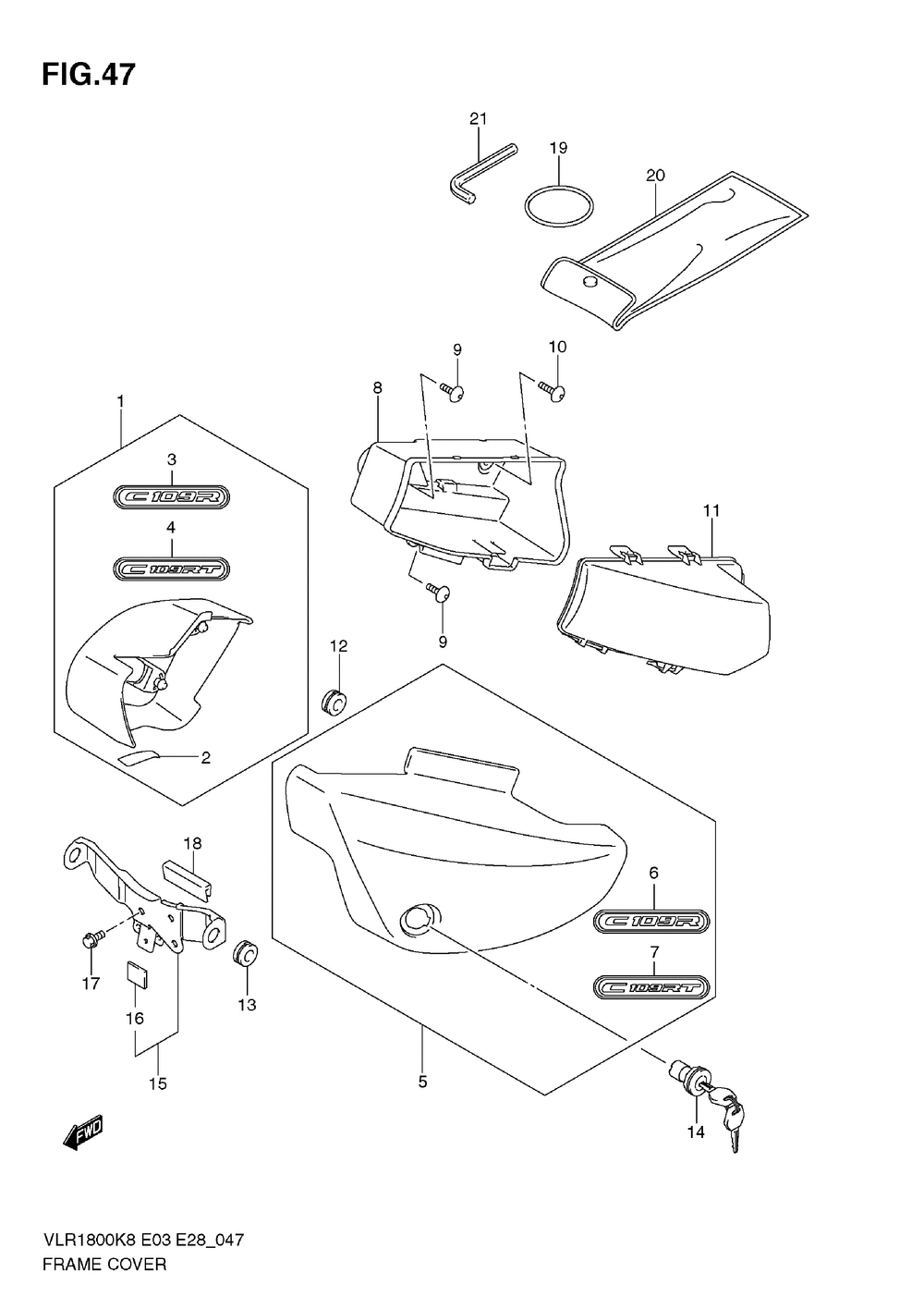

Frame cover (model k8)

Suzuki VLR1800,T Boulevard C109R

oem код

название

цена

1-1

47110-22H00-YAY

Cover Comp, Fram (vlr1800)

1-2

47110-22H00-YMK

Cover, Frame, R(r (vlr1800)

1-3

47110-22HA0-YAY

Cover Comp, Fram (vlr1800t For Fke)

1-4

47110-22HA0-YKZ

Cover Comp, Fram (vlr1800t For Fkf)

47166-22H00

Shield, Frame Co

68131-22H00

Emblem, "c109r" (vlr1800)

68131-22HA0

Emblem, "c109rt" (vlr1800t)

5-1

47210-22H00-YAY

Cover Comp, Fram (vlr1800)

5-2

47210-22H00-YMK

Cover, Frame, L(r (vlr1800)

5-3

47210-22HA0-YAY

Cover Comp, Fram (vlr1800t For Fke)

5-4

47210-22HA0-YKZ

Cover Comp, Fram (vlr1800t For Fkf)

Body, Luggage Bo

Винт

Screw, 6x10

Lid, Luggage Box

Cushion, Brace

Подушка

Lock Set, Frame

Bracket Comp, Fr

.cushion

Болт

Molding

Band, Fi Control (d:3.5,id:61

09800-21055

Tool Assy

21-1

09816-00050

Hexagon Spanner, 6

21-2

09816-00059

Spanner, Hexagon 5 ( Refer To Fig.47a(f-13) For Model K9 )
