Радиатор и Патрубки Оригинальные запчасти для мотоциклов Suzuki VZ1500 Boulevard M90 (2009)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

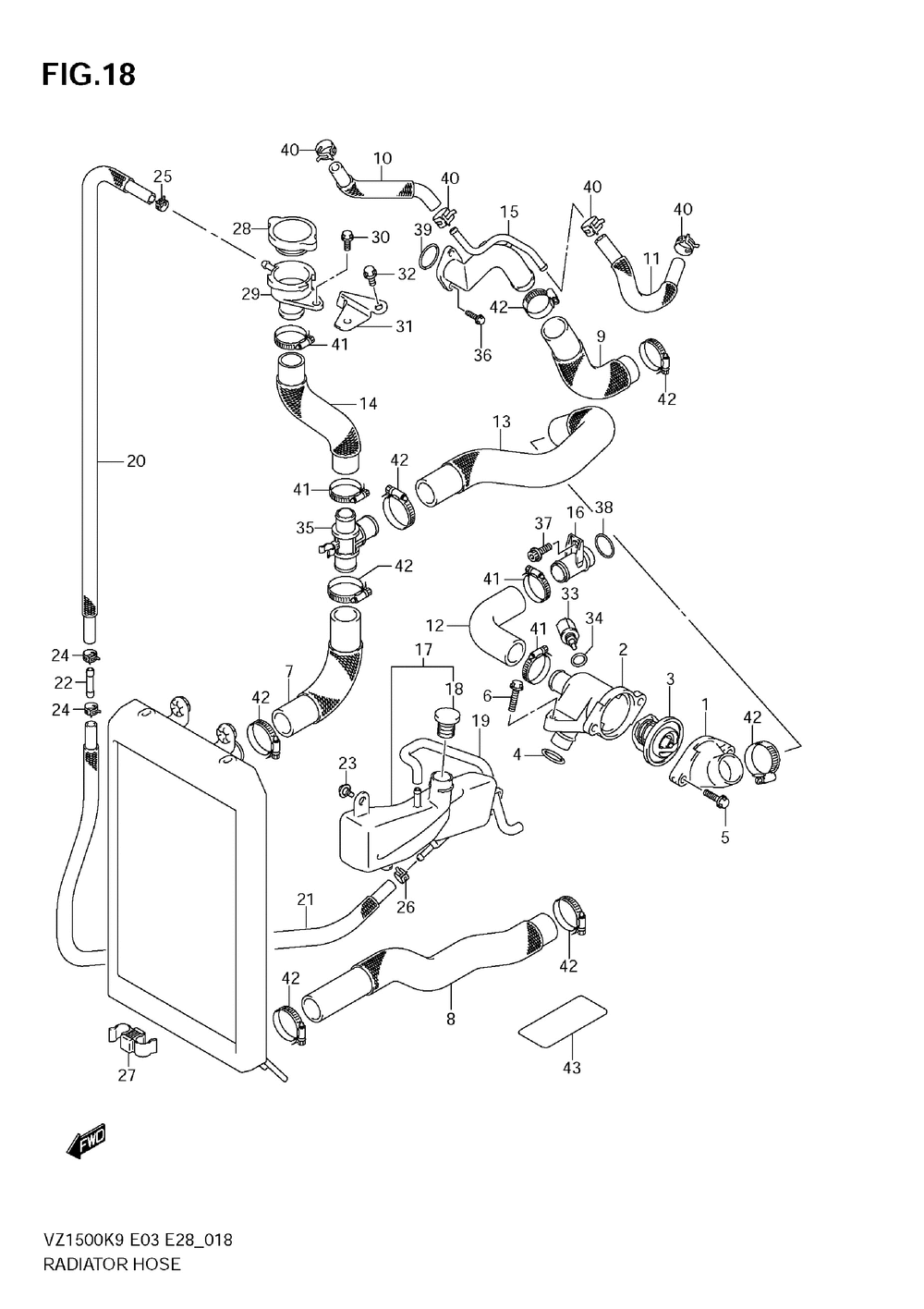

Радиатор и Патрубки

Suzuki VZ1500 Boulevard M90

Радиатор и Патрубки

#

oem код

название

цена

1

Cover, Thermosta

Cover, Thermosta

2

Connector, Therm

Connector, Therm

3

Термостат

Термостат

4

Кольцо

Кольцо

5

Болт

Болт

6

Bolt, Belt Cooling Duct

Bolt, Belt Cooling Duct

7

Hose, Radiator I

Hose, Radiator I

8

Hose, Radiator O

Hose, Radiator O

9

Hose, Cylinder I

Hose, Cylinder I

10

Hose, Water Bypa

Hose, Water Bypa

11

Hose, Water Bypa

Hose, Water Bypa

12

Hose, Rear Cyl H

Hose, Rear Cyl H

13

Hose, Thermostat

Hose, Thermostat

14

Hose, Conduction

Hose, Conduction

15

Pipe Comp, Cyl W

Pipe Comp, Cyl W

16

Union, Connector Hose

Union, Connector Hose

17

Tank Assy, Reser

Tank Assy, Reser

18

.cap, Reservoir Tank

.cap, Reservoir Tank

19

Hose, Rsvr Tank

Hose, Rsvr Tank

20

Hose, Rsvr Tank

Hose, Rsvr Tank

21

09352-50901-600

Hose, Reservoir Tank Inlet (l:600->500)

Hose, Reservoir Tank Inlet (l:600->500)

22

Union, 2way

Union, 2way

23

Болт М6x12

Болт М6x12

24

Зажим

Зажим

25

Зажим

Зажим

26

.clamp, Battery Cable

.clamp, Battery Cable

27

Зажим

Зажим

28

Крышка радиатора

Крышка радиатора

29

Conduction, Radiator

Conduction, Radiator

31

Bracket, Conduct

Bracket, Conduct

32

Болт

Болт

33

Sensor, Water Te

Sensor, Water Te

34

Прокладка

Прокладка

35

Joint, 3 Way

Joint, 3 Way

36

Screw, Radiator Side

Screw, Radiator Side

37

Bolt, Piston Cooling Jet

Bolt, Piston Cooling Jet

39

O Ring (d:2.4 Id:26.2)

O Ring (d:2.4 Id:26.2)

40

Зажим

Зажим

41

Зажим

Зажим

42

09402-38511-a05

09402-38511-a05

43

Tape (30x75x0.2)

Tape (30x75x0.2)
