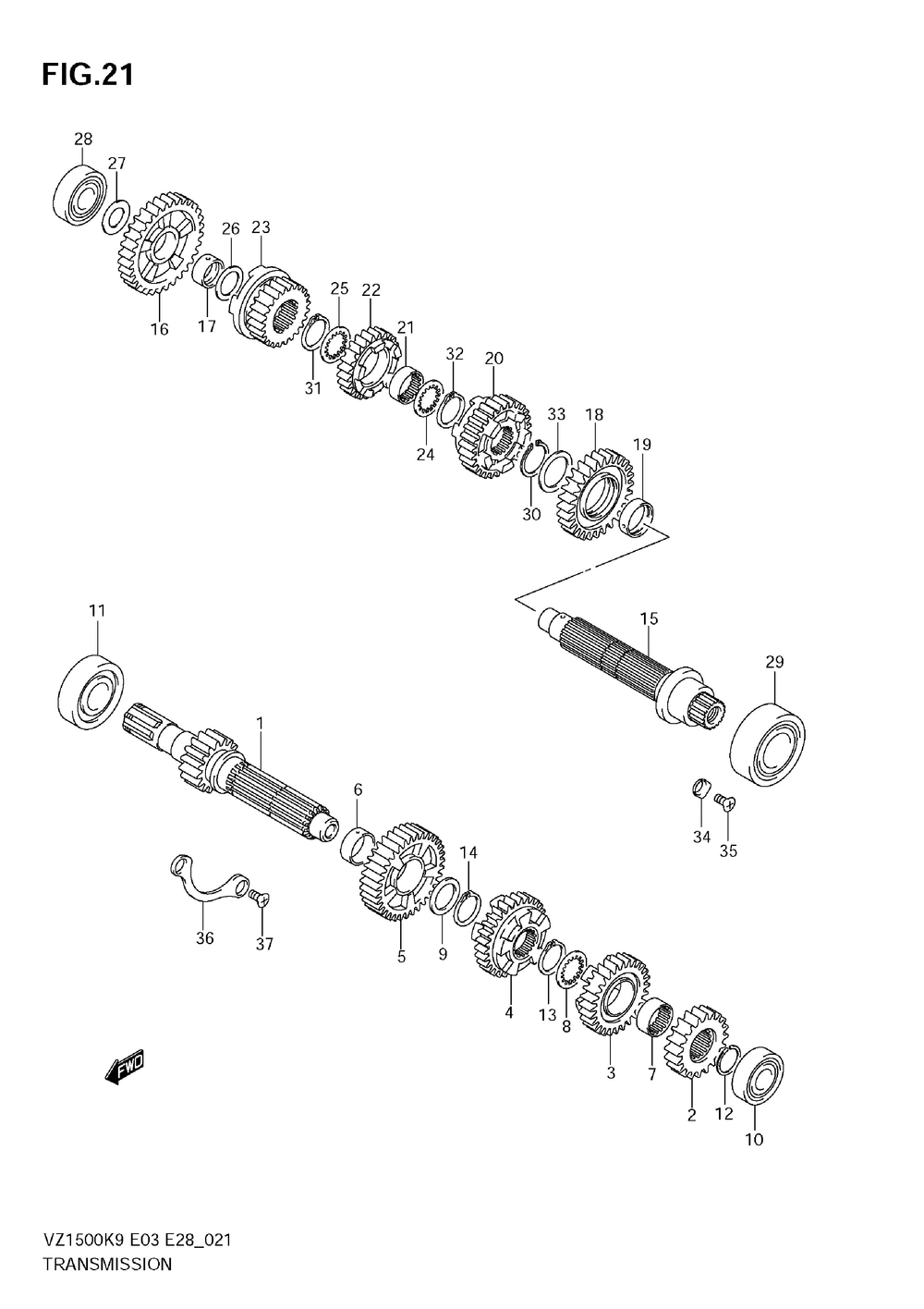

ТРАНСМИССИЯ

Suzuki VZ1500 Boulevard M90
Suzuki
#oem кодцена
1
24120-40H00
Shaft, Cntr
2
24221-48G00
Gear, 2nd Drive (nt:20)
3
24231-48G00
Gear, 3rd Drive (nt:28)
4
24241-40H00
Gear, 4th Drive
5
24251-40H00
Gear, 5th Drive
6
24252-24F10
Bush, 5th Drive
7
24262-24F10
Bush, 4th Drive
8
09167-27003
Washer, 6th Drive
9
09181-27014
Washer, 5th Drive (27x36x2.5)
10
09262-20080
Bearing, Cntr, L (20x52x15)
11
09262-25153
Bearing, 25x62x1 (25x62x17)
12
09380-27004
Circlip, 2nd Drive
13
09380-27006
Circlip, 5th & 6th Drive
15
24130-40H00
Вал ведущий
16
24311-48G00
Gear, 1st Driven (nt:35)
17
24312-24F10
Bush, 1st Driven
18
24321-48G01
Gear, 2nd Driven (nt:28)
19
24322-48G00
Bush, 2nd Driven Gear
20
24331-40H00
Gear, 3rd Driven
21
24332-24F10
Bush, 3rd & 4th Driven
22
24341-40H00
Gear, 4th Driven
23
24351-40H00
Gear, 5th Driven
24
09167-30008
Washer, 3rd Driven Gear Lh (lh)
26
09181-22223
Washer, 1st Driven Lh (22x34x1,rh)
27
09181-24005
Washer, 1st Driven Lh (24x34x1,lh)
28
09262-22024
Bearing, Drive Shaft, Lh (22x56x16)
29
09267-35004
Bearing, 35x72x2
30
09380-30009
Circlip, 2nd Driven
33
08211-30403
Washer, 2nd Driven Gear
34
24741-20A00
Обойма подшипника
35
09126-06011
Screw, Drive Shaft (6x12)
36
24741-27A00
Retainer, Cntr Shaft
