Electrical (model k9 e3,e28) Оригинальные запчасти для мотоциклов Suzuki VZ800,Z Boulevard M50 (2009)

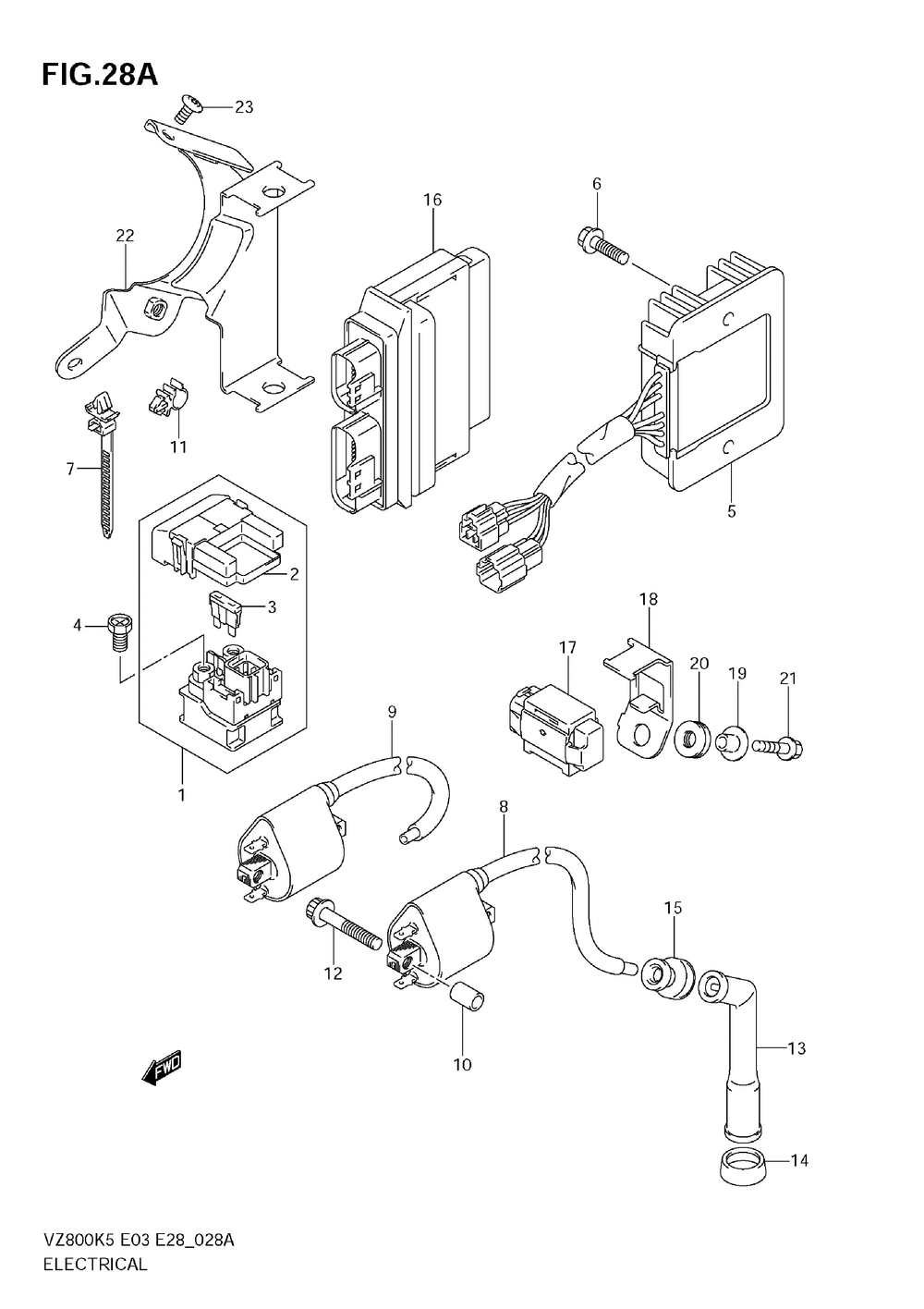

Electrical (model k9 e3,e28)

Suzuki VZ800,Z Boulevard M50

oem код

название

цена

31800-21E20

Relay Assy, Starting Motor

31861-47E00

.cover

09481-30101

.fuse (30a)

09128-06013

Bolt, Starting Motor (6x8)

Регулятор напряжения

Винт

Clamp (l:90)

Coil Assy, Ignition (l:380) (for Lh)

33420-41F10

Coil Assy, Ignition (for Rh)

09180-06195

Spacer, Ign Coil Rear

Зажим

Bolt, 5x35

Колпачек свечи

Seal, Spark Plug Cap (side)

33542-38B00

Seal, High Tension Cord

32920-39GB0

Control Unit, Fi

33960-06G10

Sensor Assy, Fuel Cut

33961-41F00

Bracket, Fuel Cut

09180-06325

Spacer, Ign Coil Brkt

09320-06017

Cushion, Ign Coil Brkt

01547-0616A

Bolt, Rr Brake Pipe Clamp

44880-43H00

Bracket, Fi Cont

09139-06108

Screw ( Refer To Fig.28b(f- 4) For Model K9 E33 )
