Evap system (model k5/k6/k7/k8 e33) Оригинальные запчасти для мотоциклов Suzuki VZ800,Z Boulevard M50 (2009)

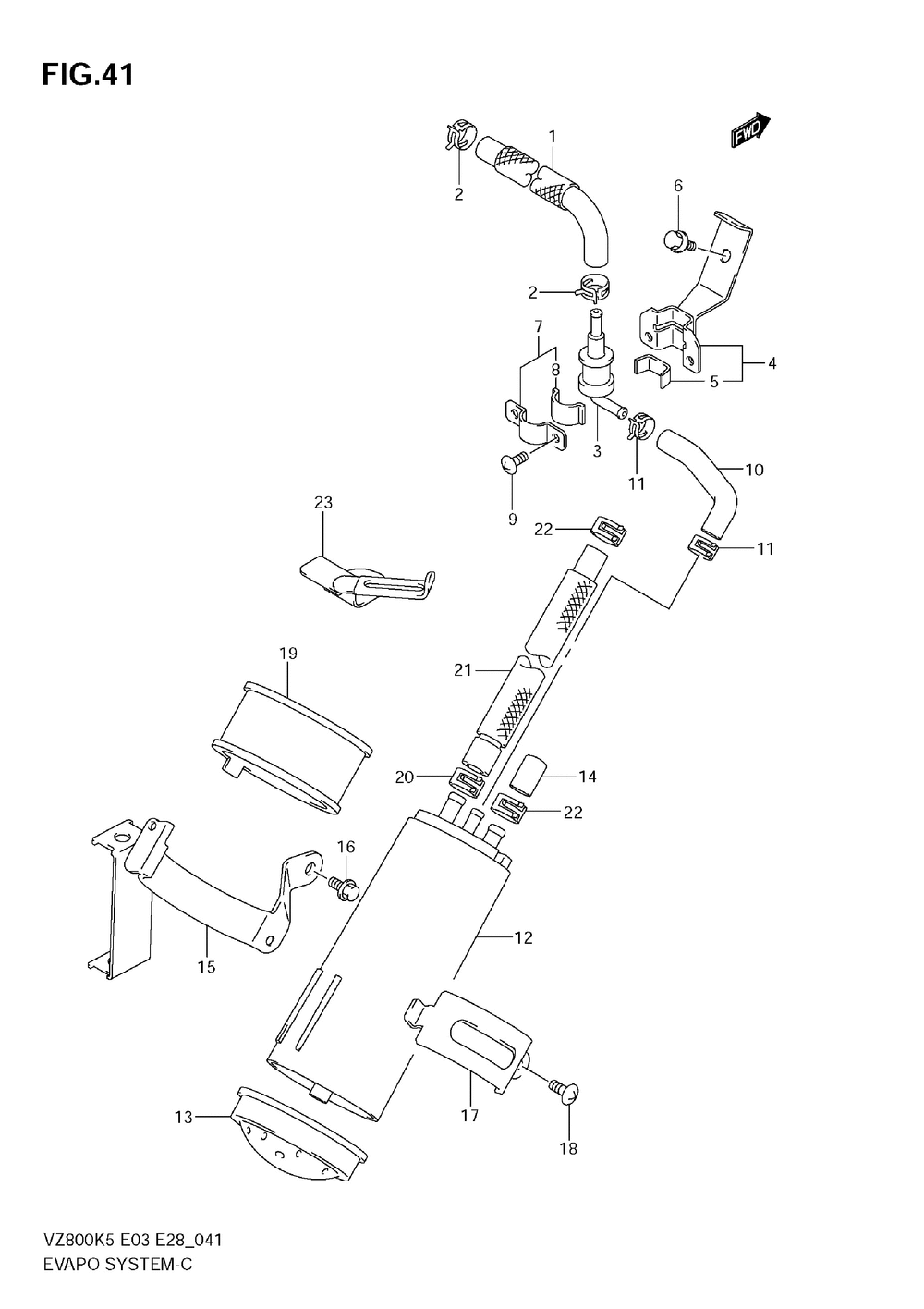

Evap system (model k5/k6/k7/k8 e33)

Suzuki VZ800,Z Boulevard M50

oem код

название

цена

1-1

44434-41F20

Hose, Tank & Valve Upper (model K5/k6/k7)

1-2

44434-39G00

Hose, Tank & Brt (model K8)

09401-11413

Зажим

44240-17C00

Клапан

44890-41F00

Bracket, Breather Valve

44894-24A00

.cushion

6-1

01550-0612A

Bolt (model K5/k6)

6-2

01550-0612B

Bolt (model K7/k8)

44892-24A00

Пластина

9-1

02142-0408B

Screw (model K5/k6)

10-1

44435-41F10

Hose, Valve & Canister (model K5/k6/k7)

10-2

44435-39G00

Hose, Brthr Valv (model K8)

Канистра

Крышка

Cap, Fuel Joint

Bracket, Canister

Винт

Holder, Canister

18-1

02142-0610A

Screw, Bracket (model K5/k6)

18-2

02142-0610B

Screw (model K7/k8)

44883-26E00

Cushion, Canister

20-1

09401-11415

Clip (model K5/k6/k7)

20-2

09401-12404

Clip (model K8)

21-1

44438-41F10

Hose, Throttle Body (model K5/k6/k7)

21-2

44436-39G00

Hose, Cstr Purge (model K8)

44480-41F00

Clamp, Evapo Hose ( Refer To Fig.41a(h-12) For Model K9 E33 )
