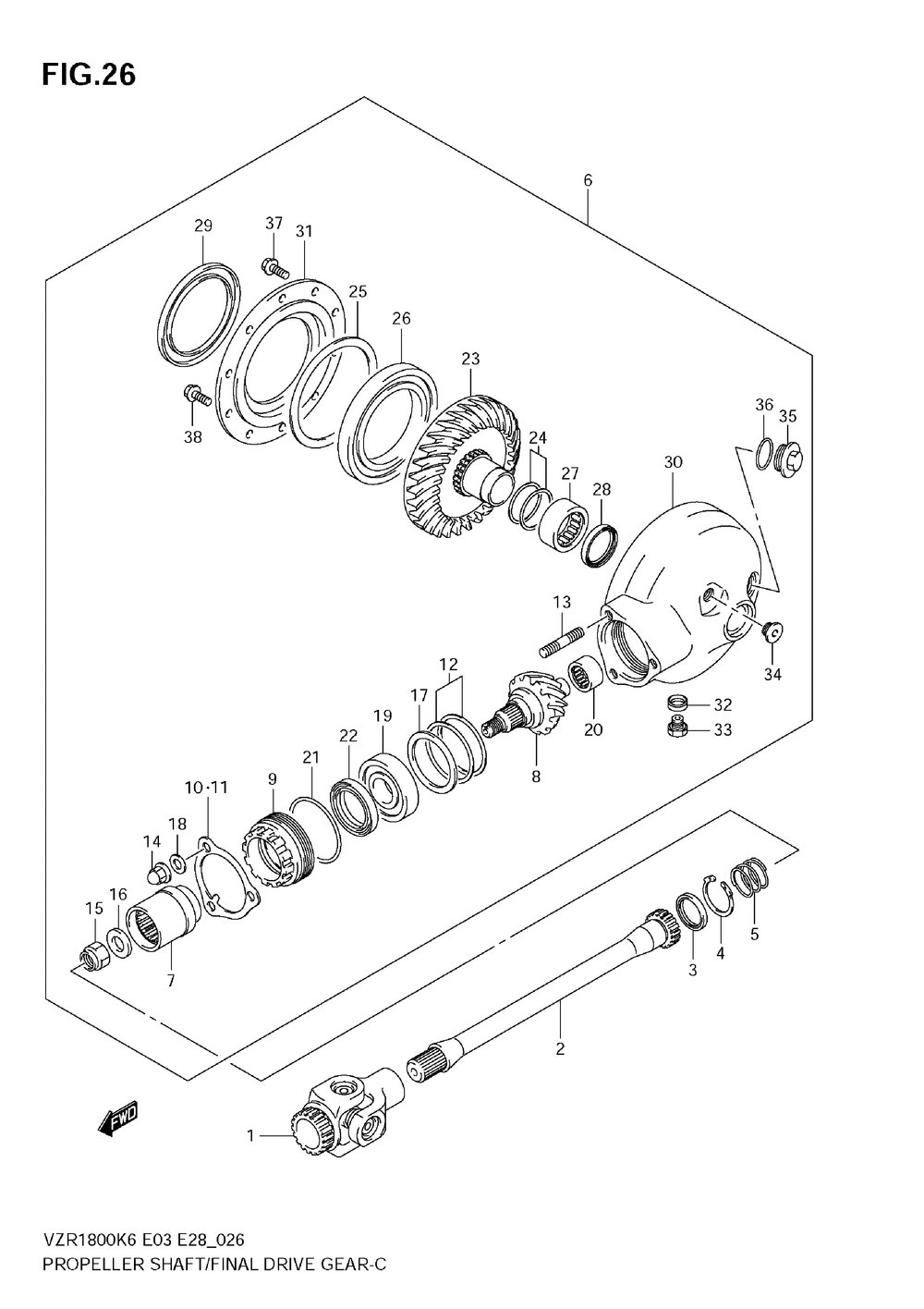

Propeller shaft/final drive gear (model k6/k7)

Suzuki VZR1800,N,Z Boulevard M109R
Suzuki
#oem кодцена
1
27100-48G20
Yoke, Universal
2
27151-48G10
Вал гребного винта
3
09283-30026
Seal, Coupling Oil
4
09381-40003
.circlip
5
09440-30008
Spring, Propeller Shaft
6
27300-48811
Gear & Case Set
7
27172-24A00
.coupling, Final Drive Gear
8
27311-24A03
.gear, Final Drive Bevel
9
27312-24A02
.stopper, Final Drive Be
10
27313-38B00
.plate, Bearing Stopper
11
27313-38B10
.plate, Bearing Stopper
12
27445-24810
.shim Set, Final Drive Gear (t:0.30/0.35/0.40 0.50/0.60 )
13
09108-10106
Шпилька
14
09159-10026
Гайка
15
09159-16003
Nut, Sec Driven Bevel Couplin
16
09160-16029
Washer, Drive Shaft (16x29x4)
17
09160-54001
.washer, Final Drive Bearing (54x68x1.5)
18
09164-10008
Шайба
19
09262-28023
.bearing, Final Drive Gear (28x68x18)
20
09263-20062
Bearing, Idle Shaft (20x34x18)
21
09280-64003
O Ring (d:3.1 Id:63.9) (dd:3.1, Id:63.9)
22
09283-47002
.seal, Final Drive Oil (45.5x58x7)
23
27320-48G00
.gear, Final Driven
24
27326-48811
.shim Set, Final Driven, L (t:0.95/1.05/1.10/1.20 1.45/1.50 )
25
27327-38810
.shim Set, Final Drive, R (t:0.35/0.40/0.50/0.60)
26
09262-85001
.bearing, Final Driven Gear, (85x130x14)
27
09263-40016
.bearing, Final Driven Gear,
28
09283-38026
.seal, Final Driven, L ( )
29
09289-85001
.seal, Final Driven, R ( Refer To Fig.26a(d-12) For Model K8/k9 )
30
27450-48G00
.case, Final Gear
31
27461-38B00
.case, Final Gear Bearing
32
09168-14004
.gasket (14.1x18x1.5) (13.8x18.8x4.8)
33
09247-14002
.plug, Oil Drain
34
09248-16012-A05
.plug, Final Gear Case
35
09259-30007
.plug, Gear Oil Filler
36
09280-26006
O Ring (d:3.1, Id:26.4) (dd:3.1, Id:26.4)
37
01550-0825A
Болт
38
01550-1025A
Bolt, Drive Gear ( Refer To Fig.26a(d-12) For Model K8/k9 )
