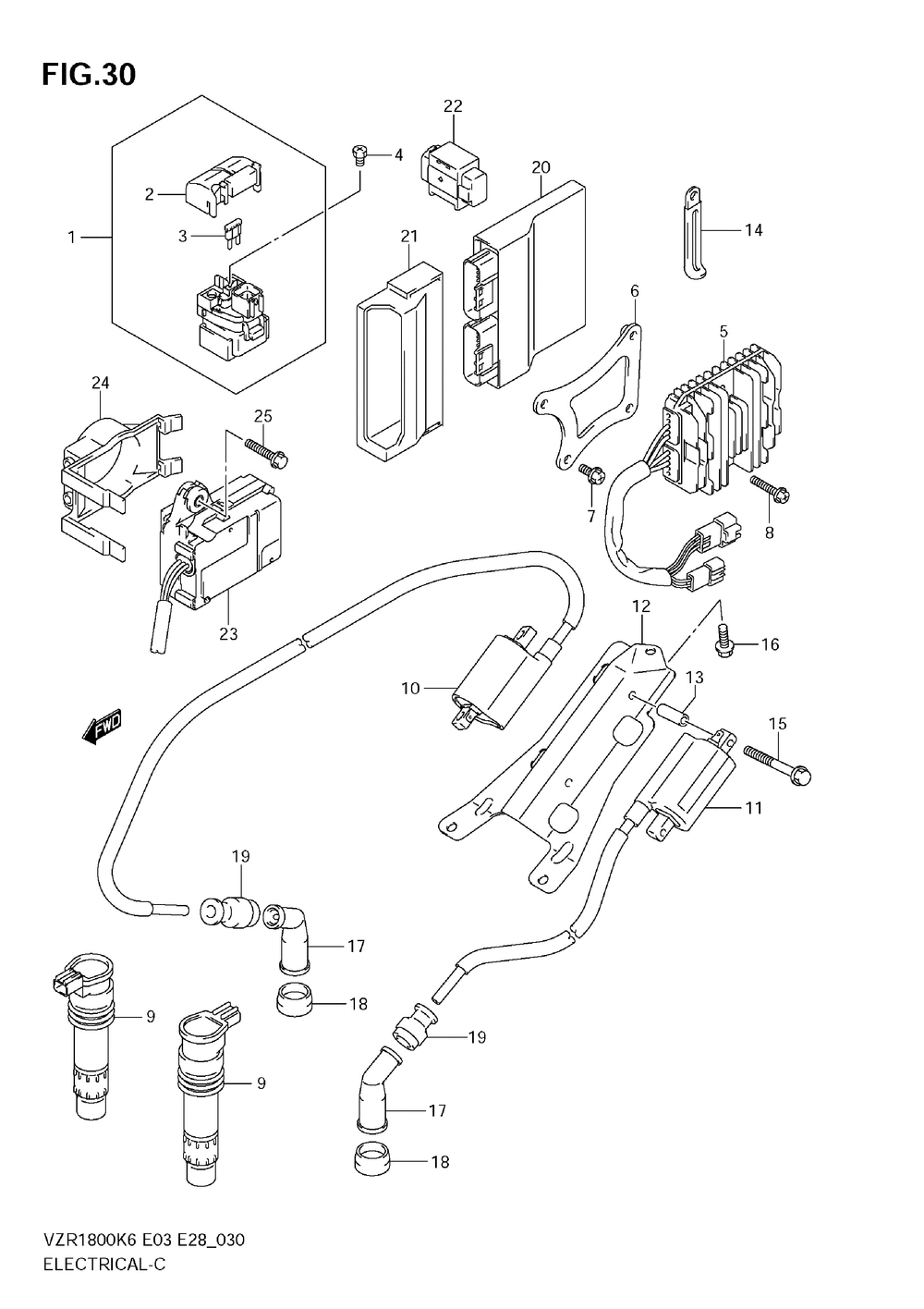

ЭЛЕКТРИКА Оригинальные запчасти для мотоциклов Suzuki VZR1800,N,Z Boulevard M109R (2009)

ЭЛЕКТРИКА

Suzuki VZR1800,N,Z Boulevard M109R

oem код

название

цена

Relay Assy, Star

.cover

.fuse (30a)

Bolt, Starting Motor (6x8)

5-1

32800-10G00

Rectifier Assy (model K6/k7)

5-2

32800-10G10

Rectifier Assy (model K8/k9)

Bracket, Rect Ftg

Винт

Болт

Катушка зажигания

Coil Assy, Ignition Front

33410-48G00

Coil Assy, Ignition Rear

33414-48G00

Bracket, Ignition Coil

09180-06195

Spacer, Ign Coil Rear (6.4x10x18)

09404-06434

Clamp (l:95) (for Rectifier)

01547-0535A

Bolt, Ignition Coil

01550-0616A

Болт

33510-20E00

Cap Assy, Spark (side)

33541-47D00

Seal, Spark Plug Cap (side)

33542-38B00

Seal, High Tension Cord

20-1

32920-48G10

Control, Unit, Fi (model K6/k7)

20-2

32920-48G50

Control Unit, Fi (model K8/k9)

32980-48G00

Holder, Fi Control Unit

33960-06G10

Sensor Assy, Fuel Cut

33970-48G00

Actuator Assy, Exhaust Contro

33973-48G00

Cover, Actuator

01560-0625A

Bolt, Actuator
