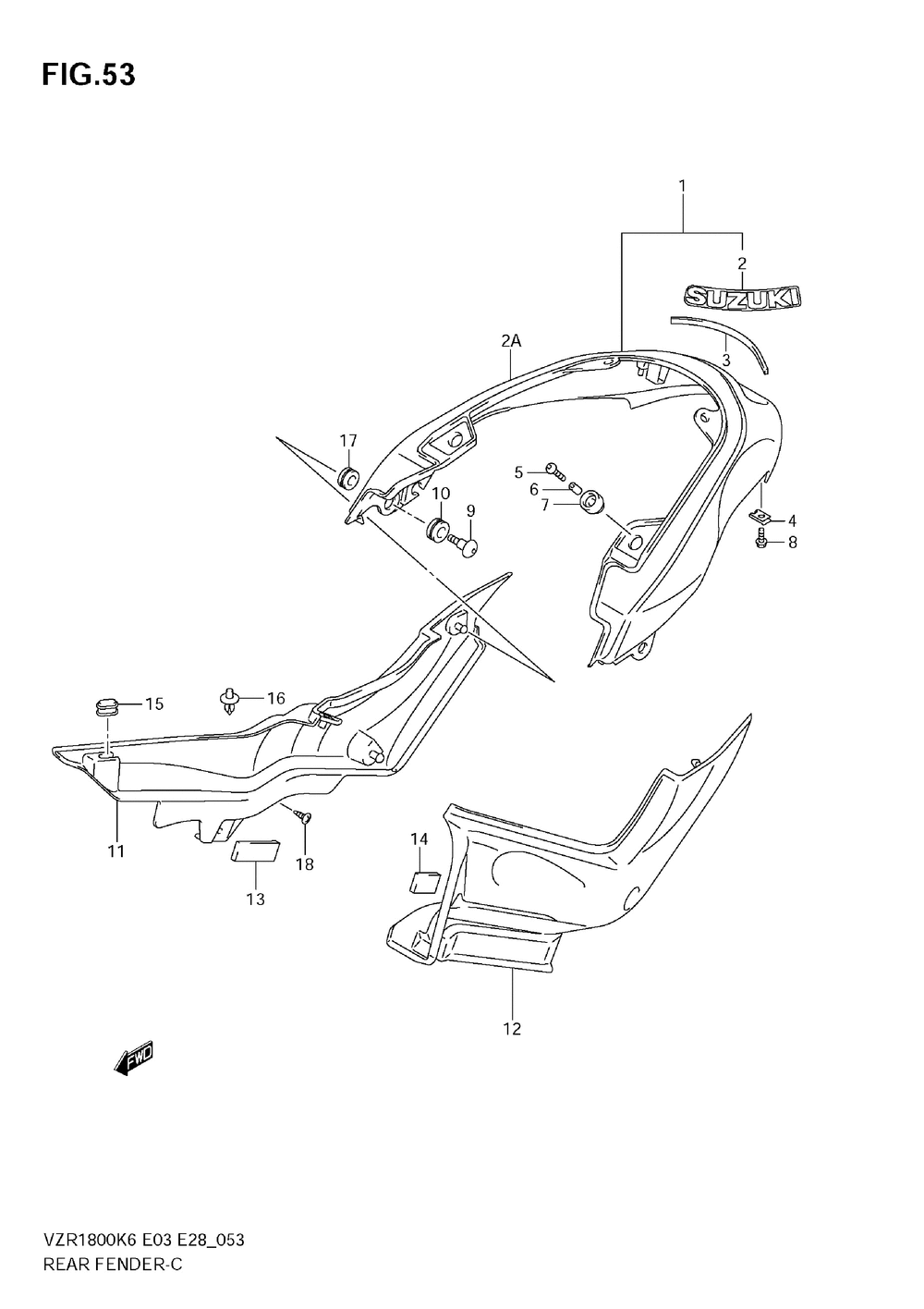

Rear fender (vzr1800k6/k7) Оригинальные запчасти для мотоциклов Suzuki VZR1800,N,Z Boulevard M109R (2009)

Rear fender (vzr1800k6/k7)

Suzuki VZR1800,N,Z Boulevard M109R

oem код

название

цена

1-1

63110-48G00-YAY

Fender, Rear (black)

1-2

63110-48G00-YD8

Fender, Rear (silver) (model K6)

1-3

63110-48G00-YLD

Fender, Rear (blue) (model K6)

2-1

68641-19F00-YD8

.emblem, Rear (silver) (for Yay,yld,yhl)

2-2

68641-19F00-17U

.emblem, Rear (gray) (for Yd8,yc3)

2A-1

63110-48G00-YC3

Fender, Rear (white) (model K7)

2A-2

63110-48G00-YHL

Fender, Rear (red) (model K7)

Cushion, Lamp

Гайка

Болт

Проставка

Подушка

Винт

Screw, Brace

Подушка

11-1

63171-48G00-YAY

Cover, Rear Fender Rh (black)

11-2

63171-48G00-YD8

Cover, Rear Fender Rh (silver (model K6)

11-3

63171-48G00-YLD

Cover, Rear Fender Rh (blue) (model K6)

11-4

63171-48G00-YC3

Cover, Rear Fender Rh (white) (model K7)

11-5

63171-48G00-YHL

Cover, Rear Fender Rh (red) (model K7)

12-1

63181-48G00-YAY

Cover, Rear Fender Lh (black)

12-2

63181-48G00-YD8

Cover, Rear Fender Lh (silver (model K6)

12-3

63181-48G00-YLD

Cover, Rear Fender Lh (blue) (model K6)

12-4

63181-48G00-YC3

Cover, Rear Fender Lh (white) (model K7)

12-5

63181-48G00-YHL

Cover, Rear Fender Lh (red) (model K7)

Cushion, Rh

Cushion, Lh

Cushion, Cover

Клипса (черн.)

.grommet

Screw ( Refer To Fig.53c(i-11) For Vzr1800k9/nk9 )
