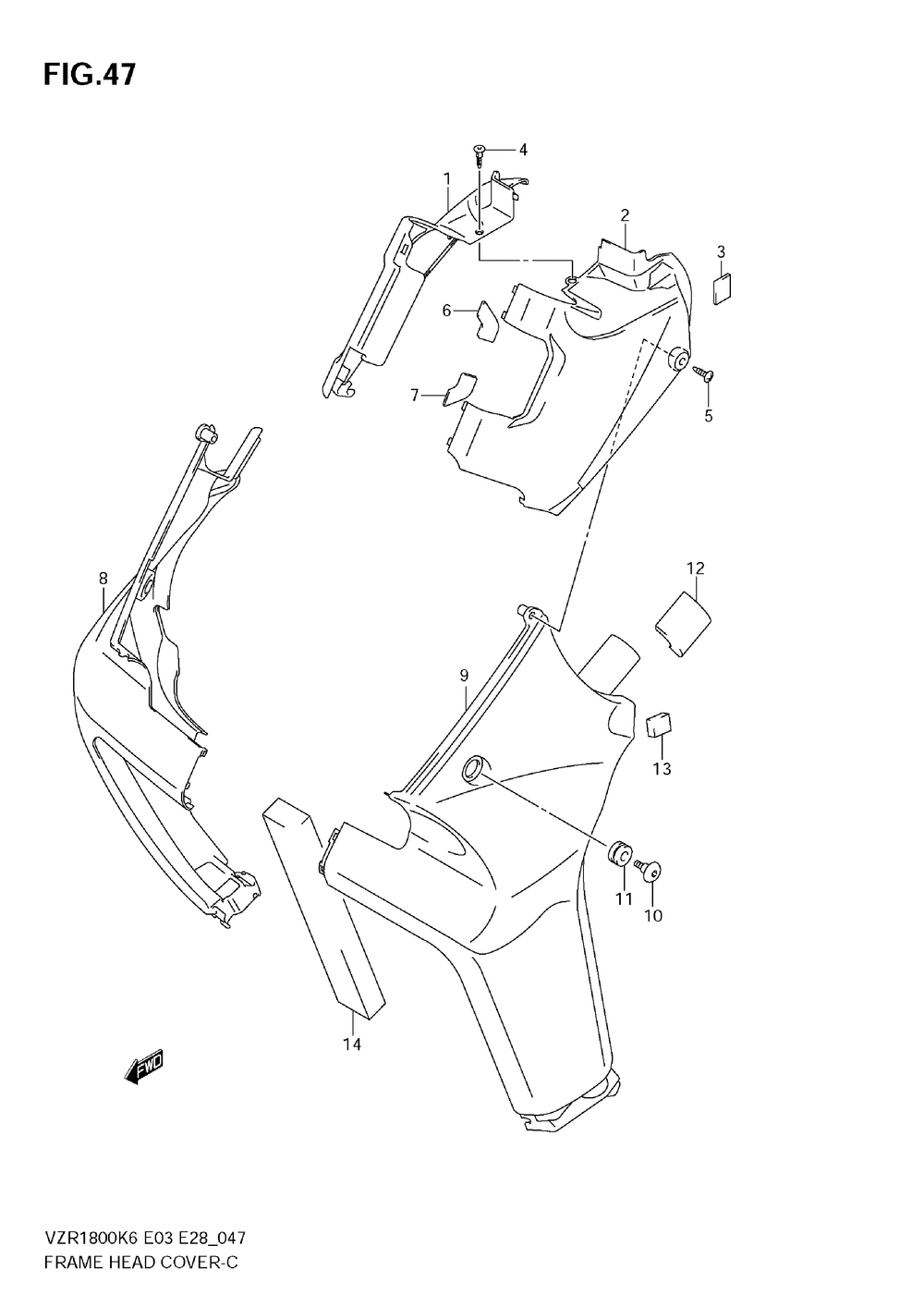

Frame head cover (vzr1800k6/k7)

Suzuki VZR1800,N,Z Boulevard M109R

oem код

название

цена

1-1

47350-48G00-YAY

Cover, Frame Hea

1-2

47351-48G00-YD8

Cover, Frame Head Rh (silver) (model K6)

1-3

47351-48G00-YLD

Cover, Frame Head Rh (blue) (model K6)

1-4

47351-48G00-YC3

Cover, Frame Head Rh (white) (model K7)

1-5

47350-48G00-YHL

Cover, Frame Hea (model K7)

2-1

47361-48G00-YAY

Cover, Frame Head Lh (black)

2-2

47361-48G00-YD8

Cover, Frame Head Lh (silver) (model K6)

2-3

47361-48G00-YLD

Cover, Frame Head Lh (blue) (model K6)

2-4

47361-48G00-YC3

Cover, Frame Head Lh (white) (model K7)

2-5

47361-48G00-YHL

Cover, Frame Head Lh (red) (model K7)

Cushion, Center

Клипса (черн.)

Винт

Tape, Upper Lh

Tape, Lower Lh

8-1

47551-48G00-YAY

Cover, Frame Body Rh (black)

8-2

47551-48G00-YD8

Cover, Frame Body Rh (silver) (model K6)

8-3

47551-48G00-YLD

Cover, Frame Body Rh (blue) (model K6)

8-4

47551-48G00-YC3

Cover, Frame Body Rh (white) (model K7)

8-5

47551-48G00-YHL

Cover, Frame Body Rh (red) (model K7)

9-1

47561-48G00-YAY

Cover, Frame Body Lh (black)

9-2

47561-48G00-YD8

Cover, Frame Body Lh (silver) (model K6)

9-3

47561-48G00-YLD

Cover, Frame Body Lh (blue) (model K6)

9-4

47561-48G00-YC3

Cover, Frame Body Lh (white) (model K7)

9-5

47561-48G00-YHL

Cover, Frame Body Lh (red) (model K7)

Screw, Brace

Подушка

Подушка

Cushion, Lower Rh ( Refer To Fig.47c(h-11) For Vzr1800k9/nk9 )
