Side cover (vzr1800k6/k7) Оригинальные запчасти для мотоциклов Suzuki VZR1800,N,Z Boulevard M109R (2009)

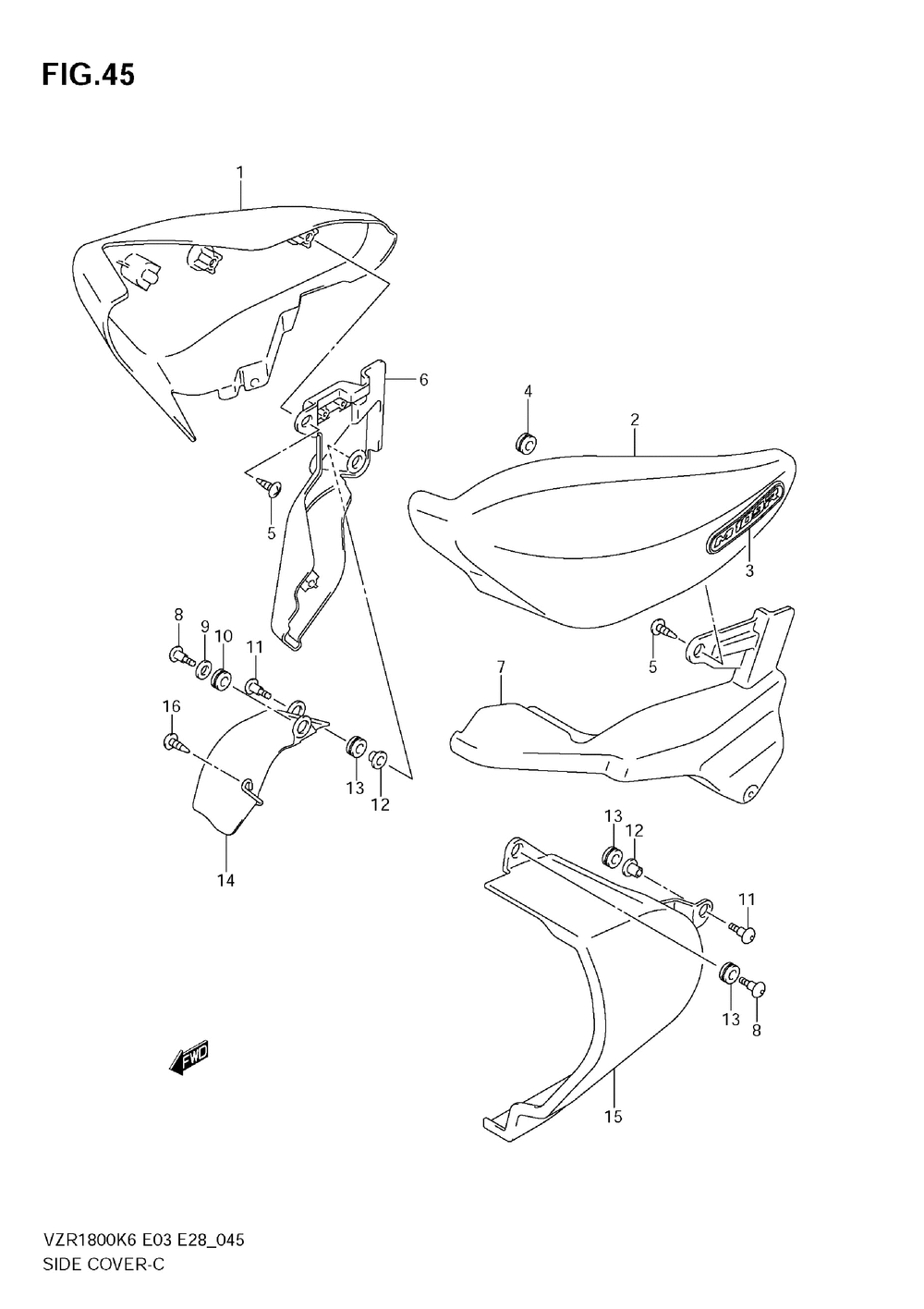

Side cover (vzr1800k6/k7)

Suzuki VZR1800,N,Z Boulevard M109R

oem код

название

цена

1-1

47110-48G00-YAY

Cover, Frame Rh (black)

1-2

47110-48G00-YD8

Cover, Frame Rh (silver) (model K6)

1-3

47110-48G00-YLD

Cover, Frame Rh (blue) (model K6)

1-4

47110-48G00-YC3

Cover, Frame Rh (white) (model K7)

1-5

47110-48G00-YHL

Cover, Frame Rh (red) (model K7)

2-1

47210-48G00-YAY

Cover, Frame Lh (black)

2-2

47210-48G00-YD8

Cover, Frame Lh (silver) (model K6)

2-3

47210-48G00-YLD

Cover, Frame Lh (blue) (model K6)

2-4

47210-48G00-YC3

Cover, Frame Lh (white) (model K7)

2-5

47210-48G00-YHL

Cover, Frame Lh (red) (model K7)

.emblem

.grommet

Винт

Cover, Side Lower Rh

Cover, Side Lower Lh

Screw, Brace

Шайба

Cushion, Lower

Винт

Проставка

.cushion, 8.5x20x8

Cover, Lower Rh

15-1

47231-48G00

Cover, Lower Lh (model K6)

15-2

47231-48G10

Cover, Lower Lh (model K7)

47250-48G00

Bracket Comp, Lo (not Illustrated Refer To Fig.45c(h- 6) For Vzr1800k9/nk9 )
