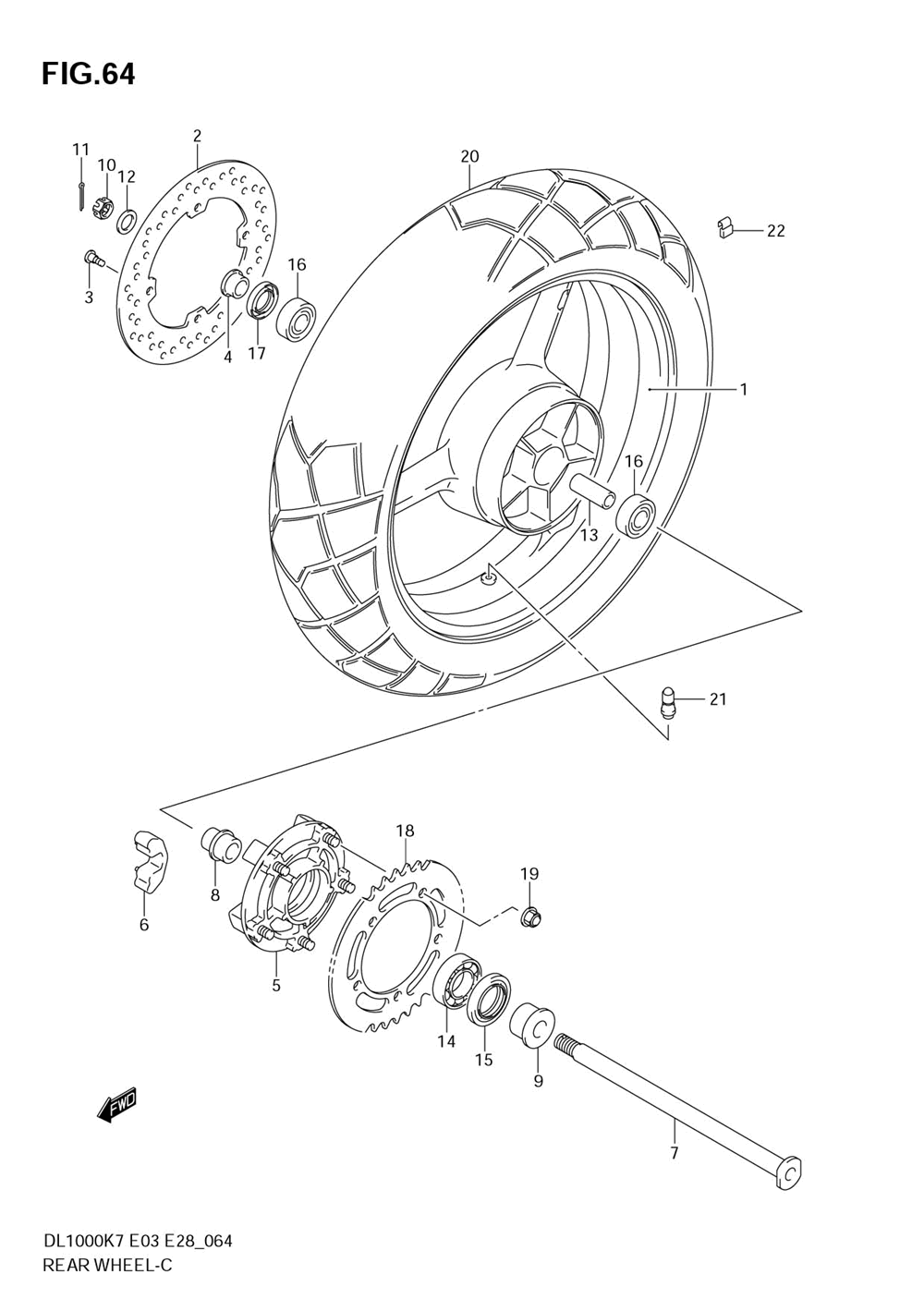

Заднее колесо

Suzuki DL1000 V-STROM

Заднее колесо

#

oem код

название

цена

1

64111-06G01-019

Wheel, Rear, 17m/cxmt4.00 ()

Wheel, Rear, 17m/cxmt4.00 ()

2

Disc, Rear Brake ()

Disc, Rear Brake ()

3

Bolt, Disc ()

Bolt, Disc ()

4

Spacer, Rear Axle Rh No.2 ()

Spacer, Rear Axle Rh No.2 ()

5

Drum, Rear Sprocket ()

Drum, Rear Sprocket ()

6

Absorber, Rear Hub Shock ()

Absorber, Rear Hub Shock ()

7

Axle, Rear ()

Axle, Rear ()

8

Retainer, Rear Sprocket Drum ()

Retainer, Rear Sprocket Drum ()

9

Spacer, Rr Axle, L ()

Spacer, Rr Axle, L ()

10

Гайка

Гайка

11

Pin ()

Pin ()

12

Шайба

Шайба

13

Spacer, Rear Hub Bearing ()

Spacer, Rear Hub Bearing ()

14

Bearing (32x65x17) ()

Bearing (32x65x17) ()

15

Seal (39x65x7) ()

Seal (39x65x7) ()

16

Bearing, Rear Hub ()

Bearing, Rear Hub ()

17

Seal, Rear Wheel Bearing Rh ()

Seal, Rear Wheel Bearing Rh ()

18

Sprocket, Rear, Nt:41-525 ()

Sprocket, Rear, Nt:41-525 ()

19

Гайка

Гайка

20

Tire, Rear, 150/70r17m/c 69h (bridgestonetrail Wing 152 Radial F)

Tire, Rear, 150/70r17m/c 69h (bridgestonetrail Wing 152 Radial F)

21

Нипель

Нипель
