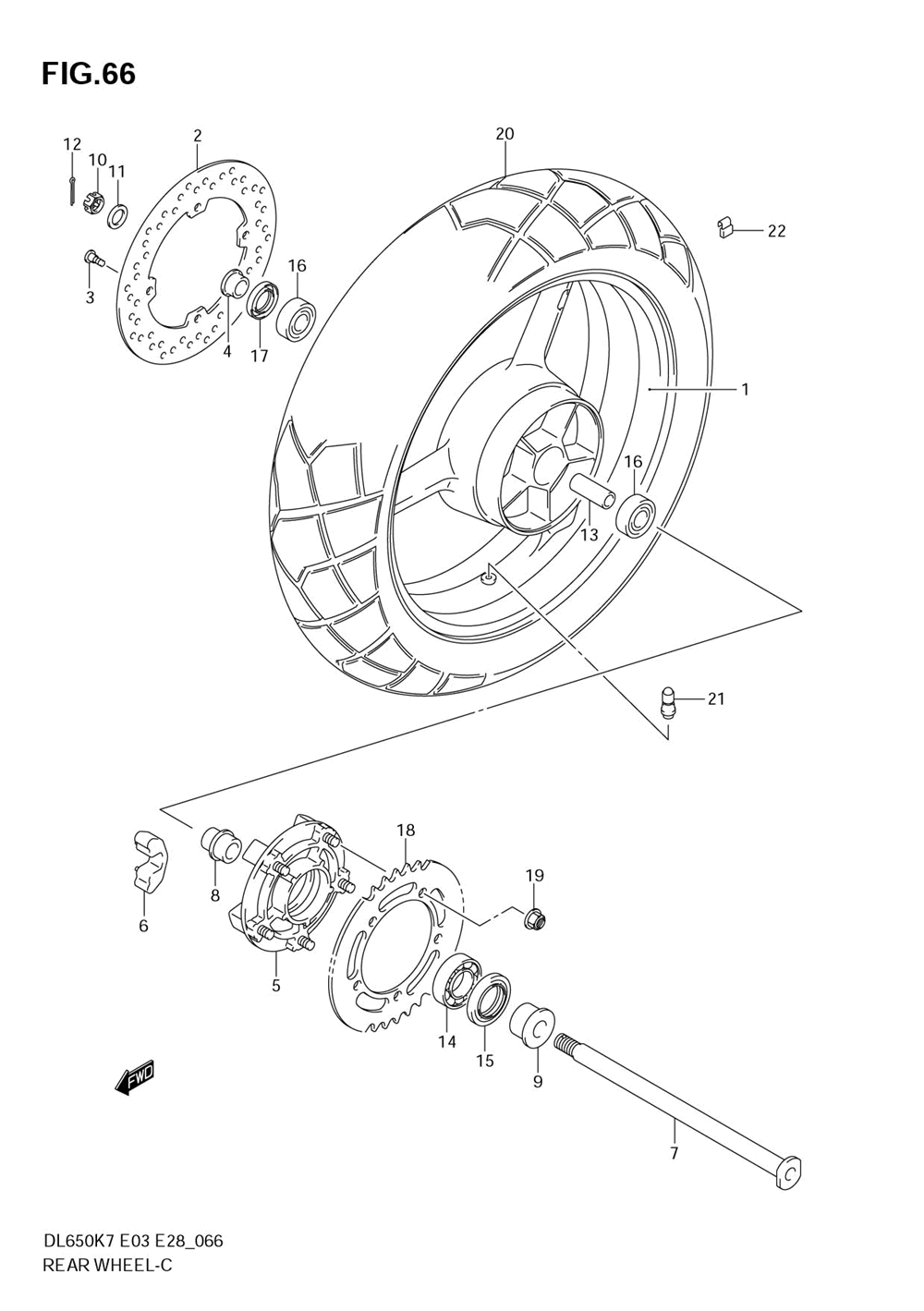

Rear wheel (dl650k7/k8)

Suzuki DL650 V-STROM

Rear wheel (dl650k7/k8)

#

oem код

название

цена

1

64111-06G10-019

Wheel, Rear (17m/cxmt4.00) ()

Wheel, Rear (17m/cxmt4.00) ()

2

Disc, Rear Brake ()

Disc, Rear Brake ()

3

Bolt, Disc ()

Bolt, Disc ()

4

Spacer, Rear Axle Rh No.2 ()

Spacer, Rear Axle Rh No.2 ()

5

Drum, Rear Sprocket ()

Drum, Rear Sprocket ()

6

Absorber, Rear Hub Shock ()

Absorber, Rear Hub Shock ()

7

Axle, Rear ()

Axle, Rear ()

8

Retainer, Rear Sprocket Drum ()

Retainer, Rear Sprocket Drum ()

9

Spacer, Rear Axle Lh ()

Spacer, Rear Axle Lh ()

10

Гайка

Гайка

11

Шайба

Шайба

12

Pin, Cotter ()

Pin, Cotter ()

13

Spacer, Rear Hub Bearing ()

Spacer, Rear Hub Bearing ()

14

Bearing (32x65x17) ()

Bearing (32x65x17) ()

15

Seal (39x65x7) ()

Seal (39x65x7) ()

16

Bearing, Rear Hub ()

Bearing, Rear Hub ()

17

Seal, Rear Wheel Bearing Rh ()

Seal, Rear Wheel Bearing Rh ()

18

Sprocket, Rear (nt:47-525) ()

Sprocket, Rear (nt:47-525) ()

19

Nut, Upper ()

Nut, Upper ()

20

Tire, Rear, 150/70r17m/c 69h (trail Wing 152 Radial F)

Tire, Rear, 150/70r17m/c 69h (trail Wing 152 Radial F)

21

Нипель

Нипель
