Front bracket Оригинальные запчасти для мотоциклов Suzuki DL650 V-STROM (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

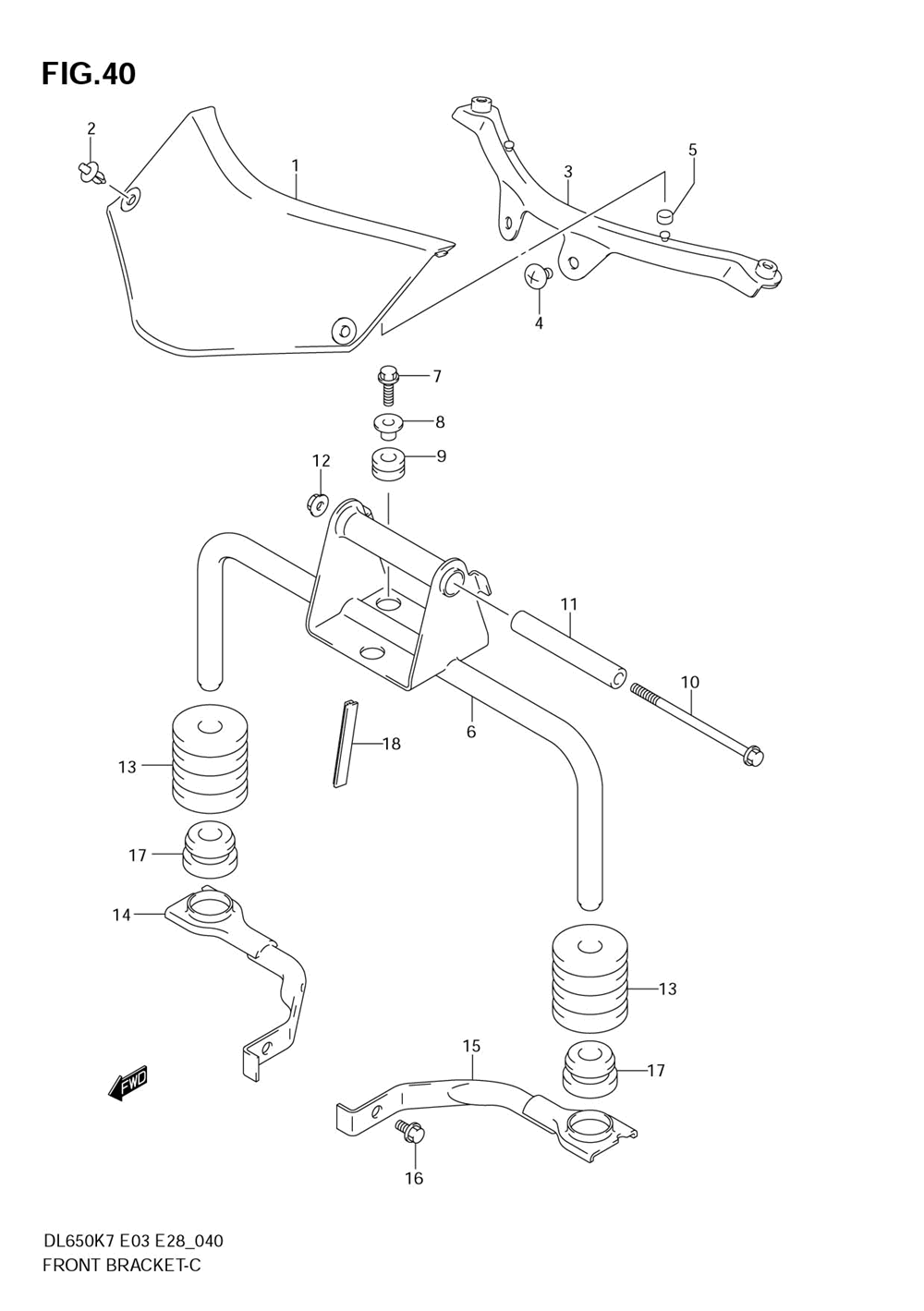

Front bracket

Suzuki DL650 V-STROM

Front bracket

#

oem код

название

цена

1

44171-06G10-291

Cover, Front (black) ()

Cover, Front (black) ()

2

09409-06314-5PK

Clip (black) ()

Clip (black) ()

3

Bracket, Cover ()

Bracket, Cover ()

4-1

Screw (model K7)

Screw (model K7)

4-2

Screw (model K8)

Screw (model K8)

5

Cushion, Cover ()

Cushion, Cover ()

6

Bracket, Front ()

Bracket, Front ()

7-1

Bolt (model K7)

Bolt (model K7)

7-2

Bolt (model K8)

Bolt (model K8)

8

Шайба

Шайба

9

Cushion ()

Cushion ()

10

Болт

Болт

11

Spacer, Joint ()

Spacer, Joint ()

12-1

.nut (model K7)

.nut (model K7)

12-2

Nut (model K8)

Nut (model K8)

13

Cushion ()

Cushion ()

14

Bracket, Side Rh ()

Bracket, Side Rh ()

15

Bracket, Side Lh ()

Bracket, Side Lh ()

16-1

Bolt (model K7)

Bolt (model K7)

16-2

Bolt (model K8)

Bolt (model K8)

17

Cushion ()

Cushion ()

18-1

68241-04X50-300

Molding, Cover ()

Molding, Cover ()
