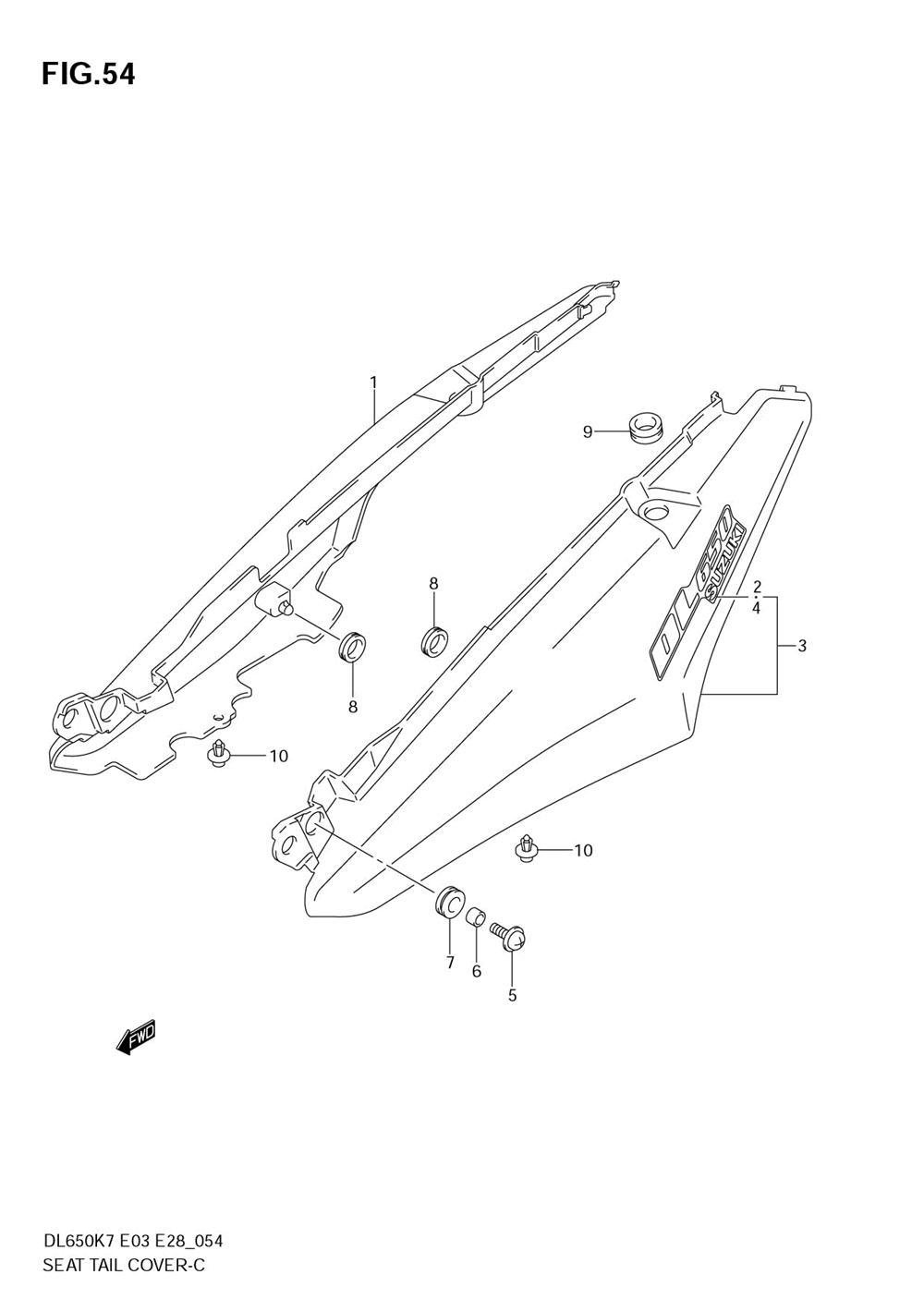

Seat tail cover (model k7)

Suzuki DL650 V-STROM

Seat tail cover (model k7)

#

oem код

название

цена

1-1

45501-27G00-YHG

Cover Assy, Seat Tail Rh (for Yhg)

Cover Assy, Seat Tail Rh (for Yhg)

1-3

45501-27G00-4EX

Cover As, Seat T (for Ykv)

Cover As, Seat T (for Ykv)

1-4

45501-27G00-YKY

Cover Assy, Seat Tail Rh (for Yky)

Cover Assy, Seat Tail Rh (for Yky)

2-1

68161-27G00-DTK

.emblem, Seat Tail Cover (for Yhg)

.emblem, Seat Tail Cover (for Yhg)

2-2

68161-27G00-DTL

.emblem, Seat Tail Cover (for Yhl)

.emblem, Seat Tail Cover (for Yhl)

2-3

68161-27G00-DTM

.emblem, Seat Tail Cover (for 4ex)

.emblem, Seat Tail Cover (for 4ex)

2-4

68161-27G00-DTN

.emblem, Seat Tail Cover (for Yky)

.emblem, Seat Tail Cover (for Yky)

3-1

45502-27G00-YHG

Cover Assy, Seat Tail Lh (for Yhg)

Cover Assy, Seat Tail Lh (for Yhg)

3-3

45502-27G00-4EX

Cover, Seat Tail (for Ykv)

Cover, Seat Tail (for Ykv)

3-4

45502-27G00-YKY

Cover Assy, Seat Tail Lh (for Yky)

Cover Assy, Seat Tail Lh (for Yky)

5

Screw, Front ()

Screw, Front ()

6

Spacer, Choke Solenoid ()

Spacer, Choke Solenoid ()

7

Cushion, Tail Cover Rr Fr ()

Cushion, Tail Cover Rr Fr ()

8

Cushion, Brace ()

Cushion, Brace ()

9

Cushion, Rear ()

Cushion, Rear ()

10

09409-06314-5PK

Clip (black) ()

Clip (black) ()
