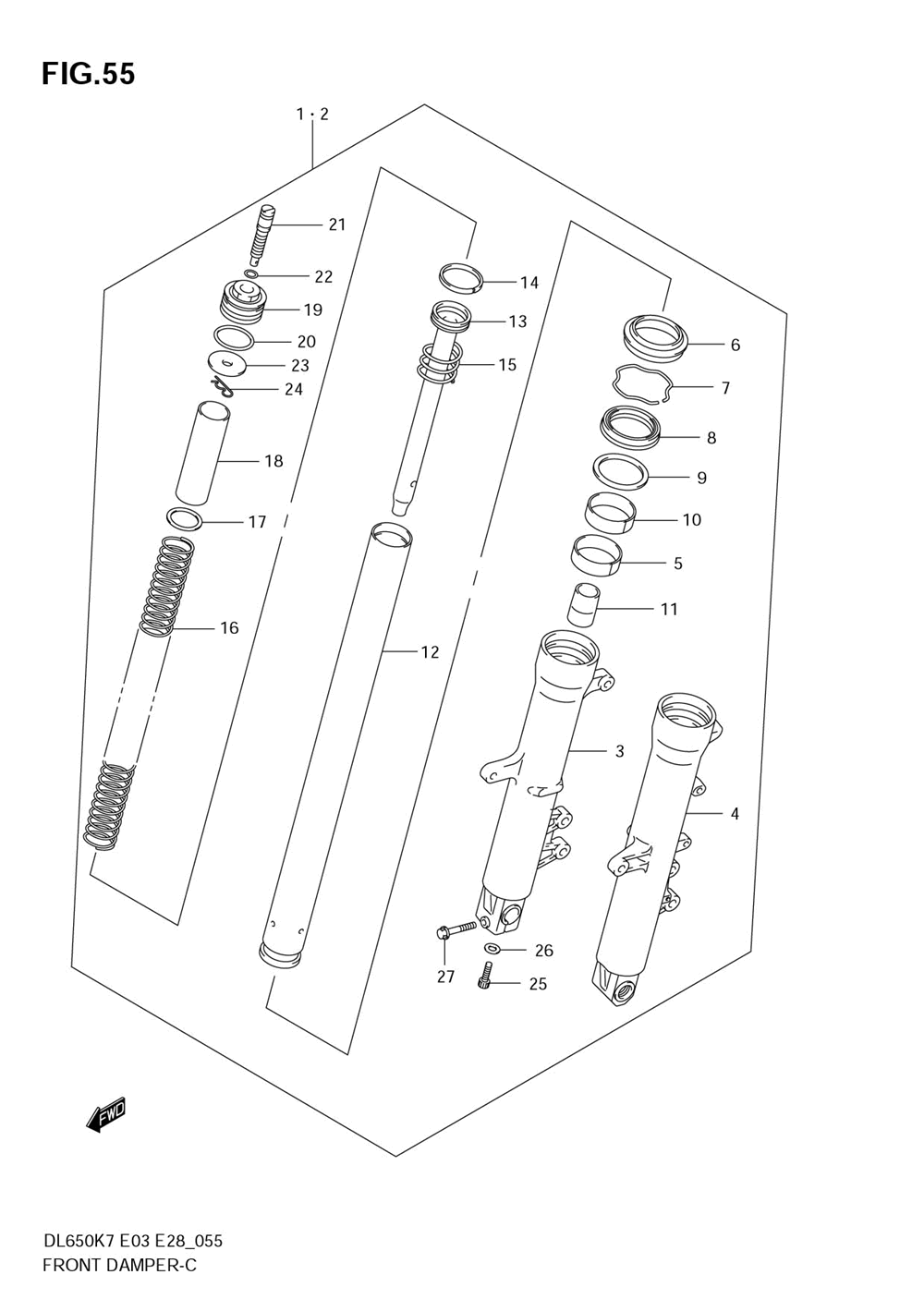

Передняя вилка

Suzuki DL650 V-STROM

Передняя вилка

#

oem код

название

цена

1

Damper Assy, Front Fork Rh ()

Damper Assy, Front Fork Rh ()

2

Damper Assy, Front Fork Lh ()

Damper Assy, Front Fork Lh ()

3

Tube, Outer Rh ()

Tube, Outer Rh ()

4

Tube, Outer Lh ()

Tube, Outer Lh ()

5

.bush, Slide ()

.bush, Slide ()

6

.seal, Dust ()

.seal, Dust ()

7

.ring, Stopper ()

.ring, Stopper ()

8

.seal, Oil ()

.seal, Oil ()

9

.spacer, Seal ()

.spacer, Seal ()

10

.bush, Guide ()

.bush, Guide ()

11

.piece, Oil Lock ()

.piece, Oil Lock ()

12

.tube, Inner ()

.tube, Inner ()

13

.cylinder ()

.cylinder ()

14

.ring, Piston ()

.ring, Piston ()

15

()

()

16

.spring, Front ()

.spring, Front ()

17

.seat, Spring Lower ()

.seat, Spring Lower ()

18

.collar, Spring ()

.collar, Spring ()

19

.bolt, Fork ()

.bolt, Fork ()

20

.o Ring ()

.o Ring ()

21

.adjuster Bolt, Spring ()

.adjuster Bolt, Spring ()

22

O Ring (d:2.5, Id:13.8) ()

O Ring (d:2.5, Id:13.8) ()

23

.seat, Spring ()

.seat, Spring ()

24

.pin, Seat Spring ()

.pin, Seat Spring ()

25

.bolt ()

.bolt ()

26

.gasket ()

.gasket ()

27

Bolt (rh)

Bolt (rh)
