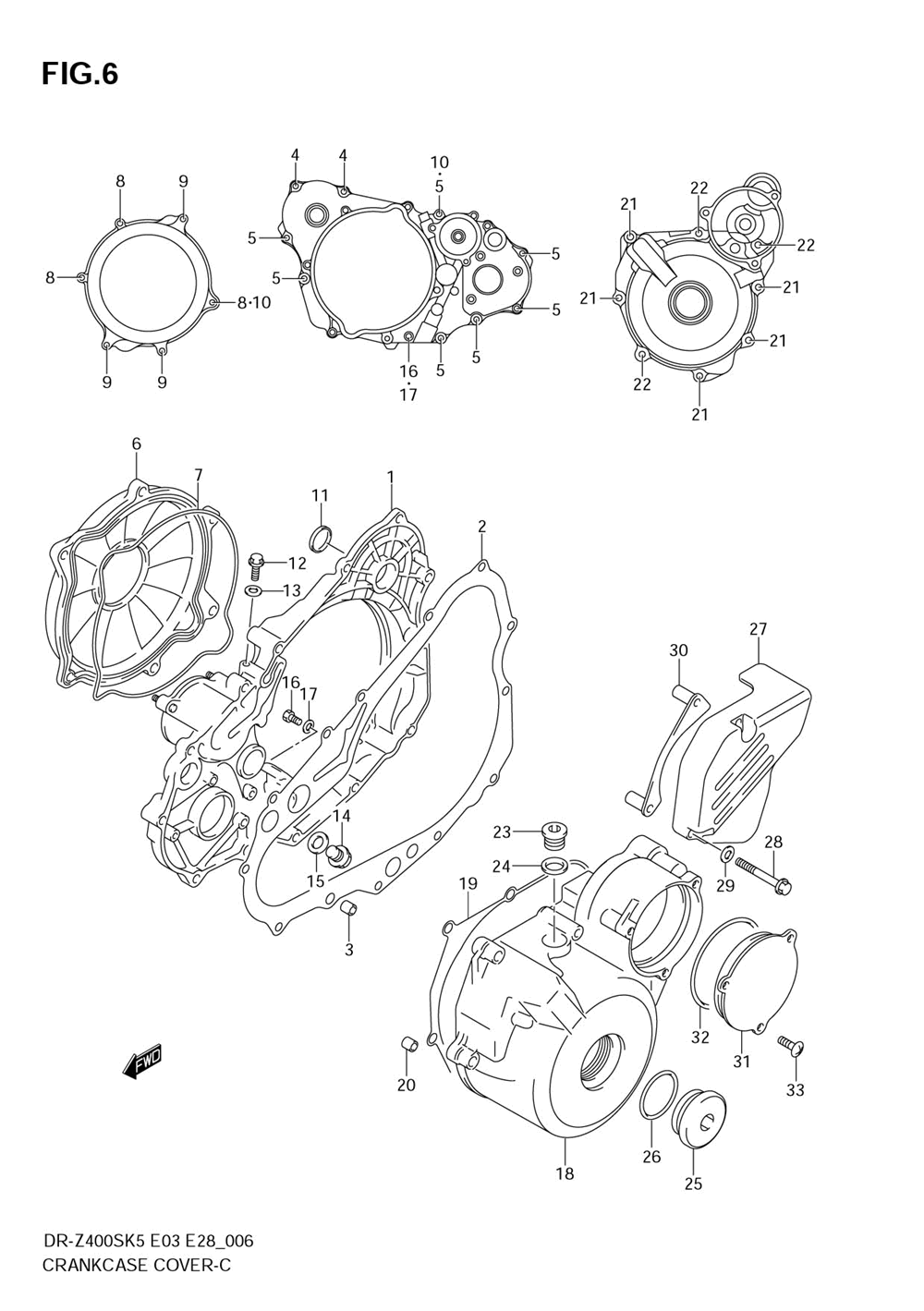

Крышки картера

Suzuki DR Z400S

Крышки картера

#

oem код

название

цена

1

Cover, Clutch Inner ()

Cover, Clutch Inner ()

2

Gasket, Clutch Cover ()

Gasket, Clutch Cover ()

3

Dowel Pin ()

Dowel Pin ()

4-1

Bolt, Thermostat Cover (model K5/k6)

Bolt, Thermostat Cover (model K5/k6)

4-2

Bolt (model K7/k8)

Bolt (model K7/k8)

5-1

Bolt (model K5/k6)

Bolt (model K5/k6)

5-2

Bolt, Magneto Cover (model K7/k8)

Bolt, Magneto Cover (model K7/k8)

6

Cover, Clutch Outer ()

Cover, Clutch Outer ()

7

O Ring, Clutch Outer Cover ()

O Ring, Clutch Outer Cover ()

9-1

Bolt (model K5/k6)

Bolt (model K5/k6)

9-2

.bolt (model K7/k8)

.bolt (model K7/k8)

10

Washer, Oil Gallery Exhaust ()

Washer, Oil Gallery Exhaust ()

11

Plug, Clutch Cover Kick ()

Plug, Clutch Cover Kick ()

12-1

Bolt 6x12 Blk 8 (model K5/k6)

Bolt 6x12 Blk 8 (model K5/k6)

12-2

Bolt, Push Rod Guide (model K7/k8)

Bolt, Push Rod Guide (model K7/k8)

14

Plug, Oil Level ()

Plug, Oil Level ()

15

Gasket, Oil Level Plug ()

Gasket, Oil Level Plug ()

16-1

Bolt (model K5/k6)

Bolt (model K5/k6)

16-2

Bolt (model K7/k8)

Bolt (model K7/k8)

17

Gasket (6.2x11x1.2) ()

Gasket (6.2x11x1.2) ()

18

Cover, Magneto ()

Cover, Magneto ()

19

Gasket, Magneto Cover ()

Gasket, Magneto Cover ()

22-1

Bolt (model K5/k6)

Bolt (model K5/k6)

22-2

Bolt (model K7/k8)

Bolt (model K7/k8)

23

Plug, Oil Gallery ()

Plug, Oil Gallery ()

24

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

25

09259-36016-20H

Plug, Crankshaft Hole ()

Plug, Crankshaft Hole ()

26

O Ring (id:32.7, Dd:3.1) ()

O Ring (id:32.7, Dd:3.1) ()

27

Cover, Engine Sprocket ()

Cover, Engine Sprocket ()

28-1

Bolt (model K5/k6)

Bolt (model K5/k6)

28-2

Bolt (model K7/k8)

Bolt (model K7/k8)

29

Washer (6.5x14x2) ()

Washer (6.5x14x2) ()

30

Plate, Front Chain Guide ()

Plate, Front Chain Guide ()

31

Cover, Starter Idle Gear ()

Cover, Starter Idle Gear ()

32

O Ring (d:2.6, Id:69.6) ()

O Ring (d:2.6, Id:69.6) ()

33-1

Screw (model K5/k6)

Screw (model K5/k6)

33-2

Screw (model K7/k8)

Screw (model K7/k8)
