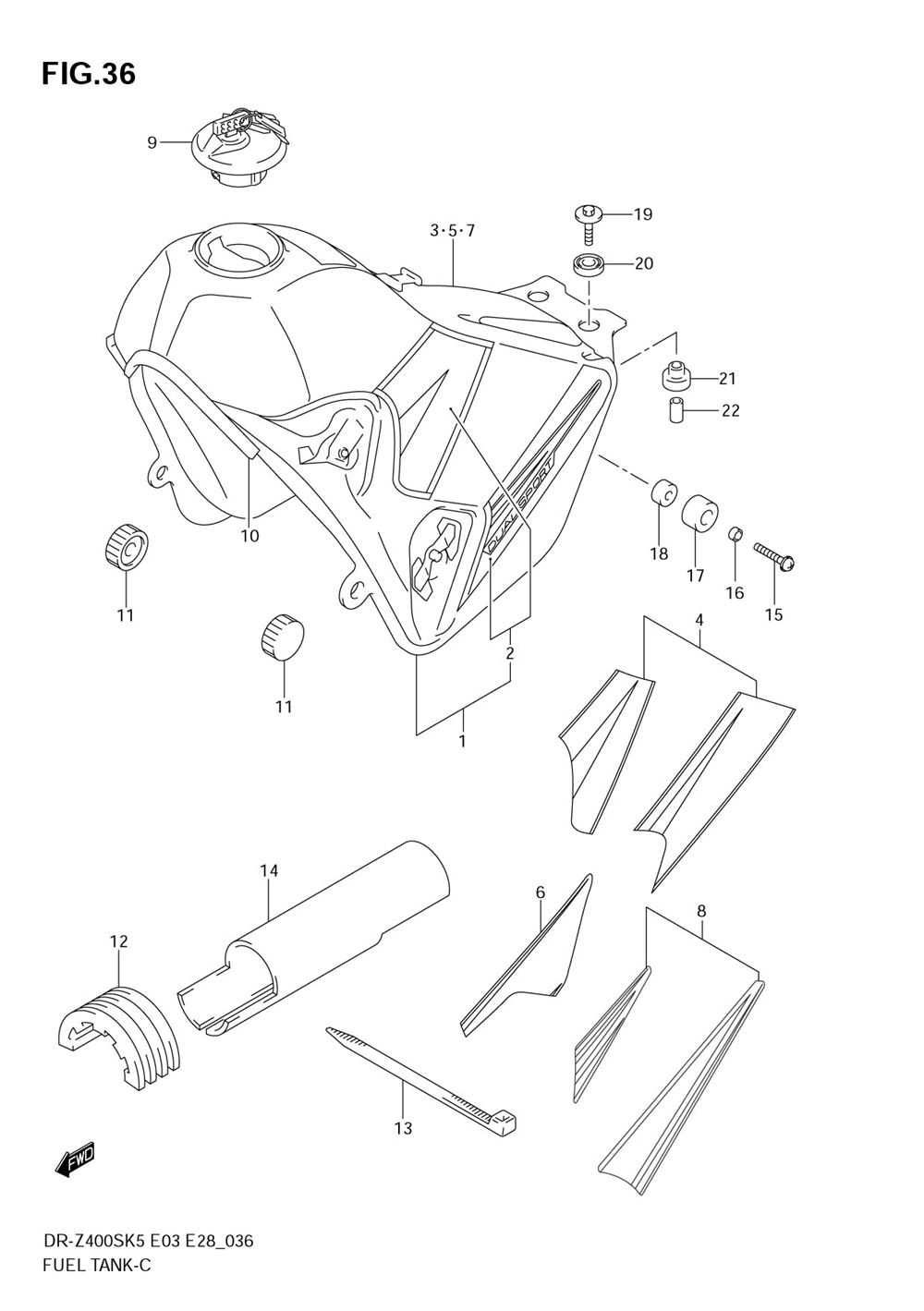

ТОПЛИВНЫЙ БАК Оригинальные запчасти для мотоциклов Suzuki DR Z400S (2008)

ТОПЛИВНЫЙ БАК

Suzuki DR Z400S

oem код

название

цена

1-1

44100-29FG0-YU1

Tank Assy, Fuel (yellow) (model K5 E3,e28 For Yu1)

1-2

44100-29FG0-YC2

Tank Assy, Fuel (blue) (model K5 E3,e28 For N9j)

1-3

44100-29FH0-YU1

Tank Assy, Fuel (yellow) (model K5 E33 For Yu1)

1-4

44100-29FH0-YC2

Tank Assy, Fuel (blue) (model K5 E33 For N9j)

2-1

68110-29FB0-AZR

.tape Set (model K5 For Yu1)

2-2

68110-29FB0-BEV

.tape Set (model K5 For Yc2)

3-1

49100-29F50-YU1

Tank Assy, Fuel (yellow) (model K6 E3,e28 For Yu1)

3-2

49100-29F50-YC2

Tank Assy, Fuel (blue) (model K6 E3,e28 For N9j)

3-3

49100-29F60-YU1

Tank Assy, Fuel (yellow) (model K6 E33 For Yu1)

3-4

49100-29F60-YC2

Tank Assy, Fuel (blue) (model K6 E33 For N9j)

4-1

68110-29FE0-CFK

.tape Set (model K6 For Yu1)

4-2

68110-29FE0-CMF

.tape Set (model K6 For Yc2)

5-1

49100-29FC0-YU1

Tank Assy, Fuel (yellow) (model K7 E3,e28 For Yu1)

5-2

49100-29FC0-YC2

Tank Assy, Fuel (blue) (model K7 E3,e28 For N9j)

5-3

49100-29FD0-YU1

Tank Assy, Fuel (yellow) (model K7 E33 For Yu1)

5-4

49100-29FD0-YC2

Tank Assy, Fuel (blue) (model K7 E33 For N9j)

6-1

68110-29FH0-DUN

.tape Set (model K7 For Yu1)

6-2

68110-29FH0-DUP

.tape Set (model K7 For Yc2)

7-1

49100-29FL0-YKY

Tank Assy, Fuel (model K8 E3, E28 For Yky)

7-2

49100-29FL0-019

Tank Assy, Fuel (model K8 E3, E28 For 019)

7-3

49100-29FM0-YKY

Tank Assy, Fuel (model K8 E3, E33 For Yky)

7-4

49100-29FM0-019

Tank Assy, Fuel (model K8 E3, E33 For 019)

8-1

68110-29FU0-EVJ

Tape Set, Fuel T (model K8 For Yky)

8-2

68110-29FU0-EVE

Tape Set, Fuel T (model K8 For 019)

9-1

44200-29820

Cap Set, Fuel Tank (e3,e28)

9-2

44200-05820

Cap Set, Fuel Tank (e33)

68241-04X50-00B

Molding ()

09329-10016

Cushion ()

44541-29F00

Cushion, Fuel Tank ()

Clamp ()

Shield, Fuel Tank ()

Винт

Spacer ()

Cushion, Side ()

Spacer ()

Болт

Cushion, Upper ()

Cushion, Lower ()

Spacer ()
