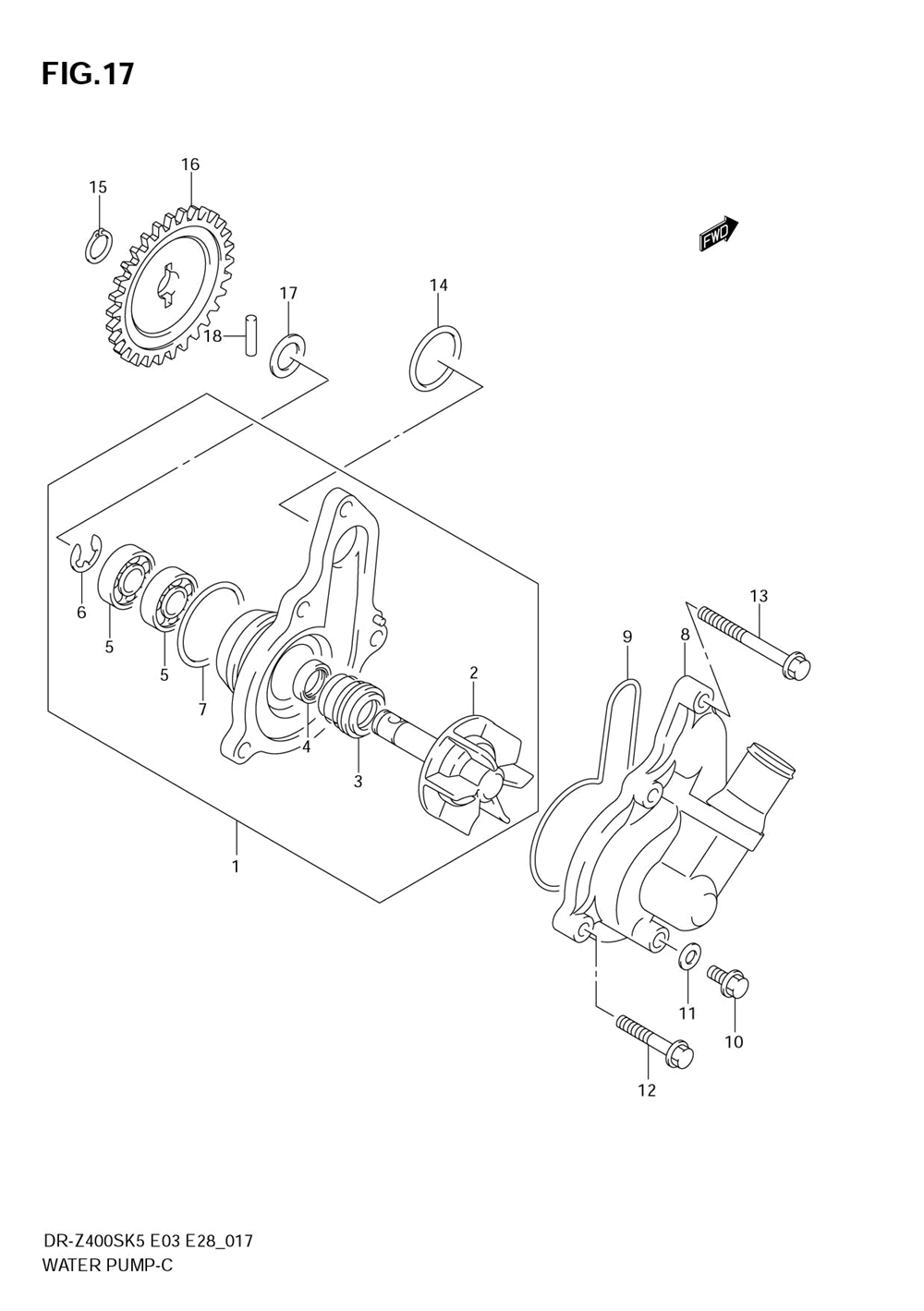

ВОДЯНОЙ НАСОС Оригинальные запчасти для мотоциклов Suzuki DR Z400S (2008)

ВОДЯНОЙ НАСОС

Suzuki DR Z400S

oem код

название

цена

1-1

17400-29F00

Pump Assy, Water (model K5)

1-2

17400-29F10

Pump Assy, Water (model K6/k7/k8)

2-1

17491-29F00

.impeller Shaft (model K5)

2-2

17491-29F10

.impeller Shaft (model K6/k7/k8)

17470-02F10

.seal, Water Pump Shaft ()

4-1

17419-29F00

.oil Seal (model K5)

4-2

09283-10004

.oil Seal, 10x21x5 (model K6/k7/k8)

.bearing ()

.e Ring ()

.o Ring ()

Case, Water Pump ()

O Ring ()

Болт

Gasket, Drain Bolt ()

09103-06204

Bolt (6x30) ()

09103-06209

Болт

09280-22001

O Ring, D:2.4, Id:21.8 ()

08331-3110A

Circlip ()

17461-29F00

Gear, Water Pump Driven ()

09181-10158

Шайба

09261-04001

Pin (4x18.5) ()
