Картер Оригинальные запчасти для мотоциклов Suzuki DR650SE (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

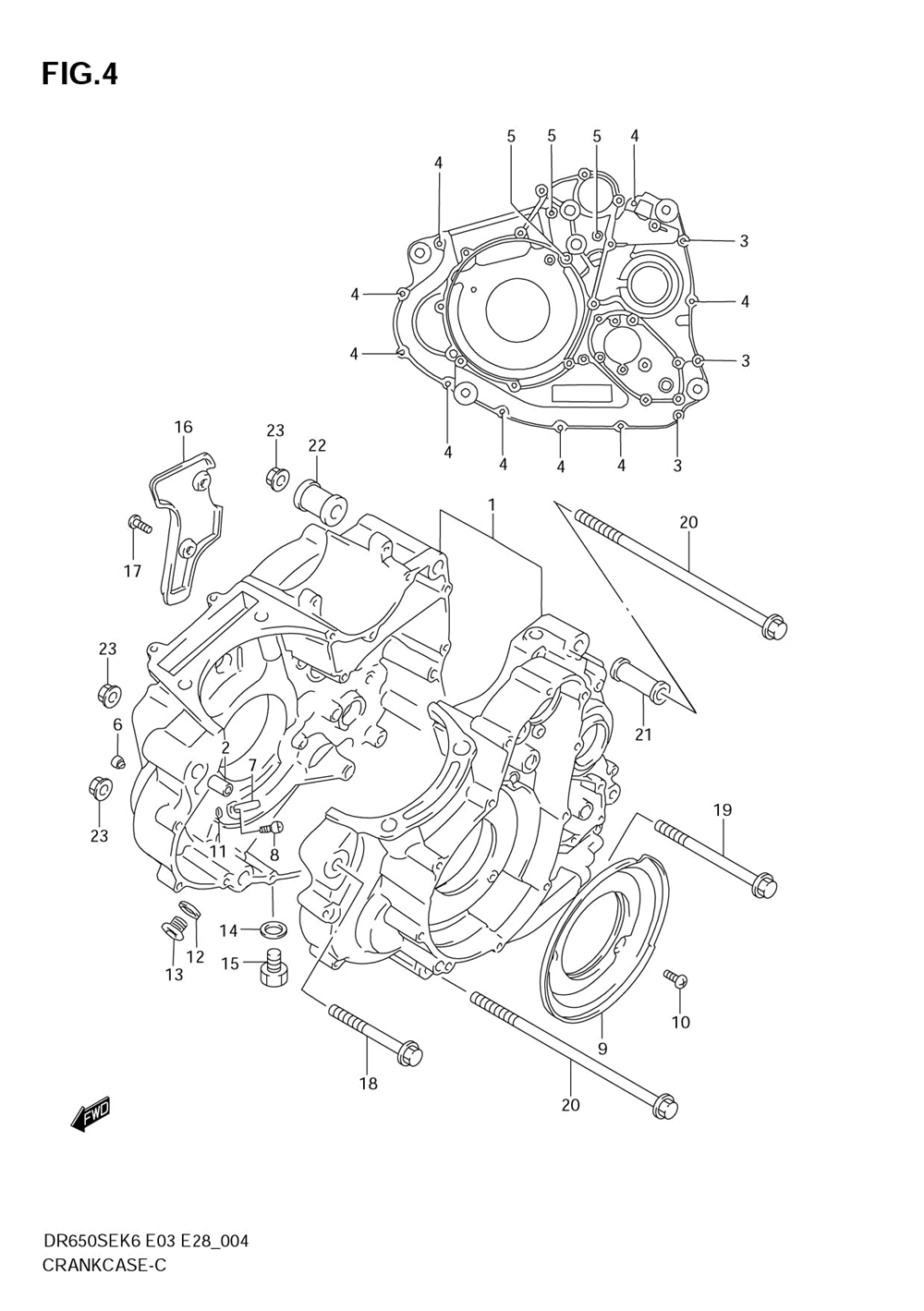

Картер

Suzuki DR650SE

Картер

#

oem код

название

цена

1-1

Crankcase Set (model K6)

Crankcase Set (model K6)

2

.pin, Idle Gear No.2 (l:27) ()

.pin, Idle Gear No.2 (l:27) ()

3

.bolt (l:60) ()

.bolt (l:60) ()

4

Bolt (6x40) ()

Bolt (6x40) ()

5-1

Bolt (model K6)

Bolt (model K6)

5-2

Bolt (model K7/k8)

Bolt (model K7/k8)

6

.jet, Oil Gallery ()

.jet, Oil Gallery ()

7

Jet, Piston Cooling ()

Jet, Piston Cooling ()

8

Болт

Болт

9

Separator, Oil Breather ()

Separator, Oil Breather ()

10-1

Screw (model K6)

Screw (model K6)

10-2

Screw (model K7/k8)

Screw (model K7/k8)

11

O Ring, Oil Gallery Jet ()

O Ring, Oil Gallery Jet ()

12

.gasket (14.1x18x1.5) ()

.gasket (14.1x18x1.5) ()

13

Plug, Oil Gallery ()

Plug, Oil Gallery ()

15

Plug, Oil Drain ()

Plug, Oil Drain ()

16

Cover, Breather ()

Cover, Breather ()

18

Bolt (10x100) ()

Bolt (10x100) ()

19

Bolt (10x130) ()

Bolt (10x130) ()

20

Bolt, Eng Mtg Lower ()

Bolt, Eng Mtg Lower ()

21

Spacer (l:65) ()

Spacer (l:65) ()

22

Spacer (l:27) ()

Spacer (l:27) ()

23

Гайка

Гайка
