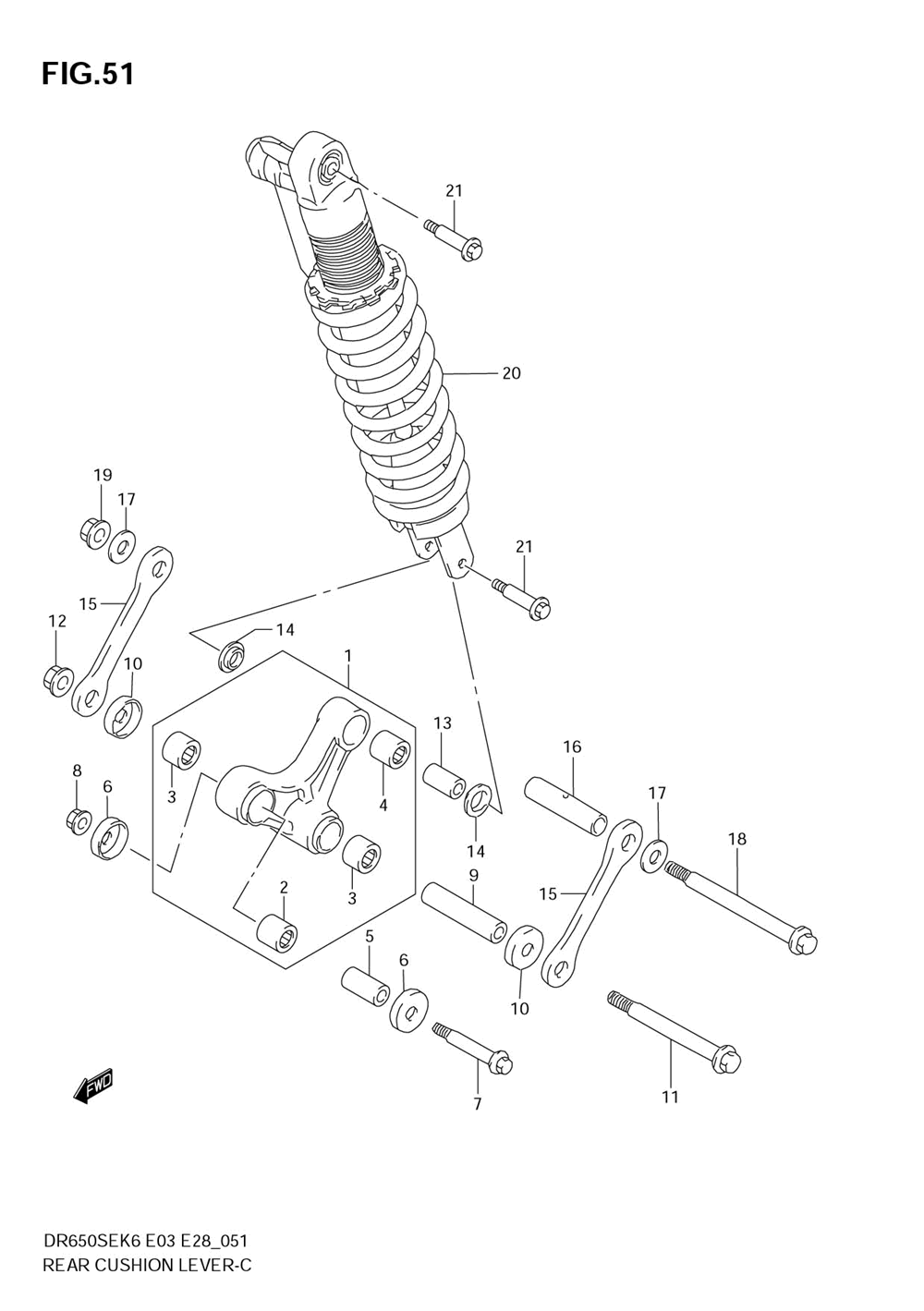

Втулки заднего рычага

Suzuki DR650SE
Suzuki
#oem кодцена
1
62600-32840
Lever Set, Rear Cushion ()
2
09263-20073
.bearing, Front (20x27x30) ()
3
09263-21012
.bearing (21x27x20) ()
4
09263-17027
.bearing, Rear (17x24x20) ()
5
62317-27C10
Spacer, Front (12x20x34) ()
6
62162-28E00
Seal, Front Dust ()
7
62658-01C60
Bolt, Front (12x65) ()
8-1
08319-3112A
Nut (model K6)
9
62626-13E00
Spacer, Center (15x21x74) ()
10
62682-13E00
Seal, Center Dust ()
11
62621-27C20
Bolt, Center (14x109) ()
12
08319-3114A
Nut, Rear Cushion Rod ()
13
62684-40A10
Spacer, Rear Cushion Lever ()
14
62624-13E00
Seal, Rear Dust ()
15
62641-32E00
Rod, Rear Cushion Lever ()
16
62626-14D00
Spacer, Center ()
17
08211-14321
Thrust Washer ()
18
62621-17C00
Bolt, Rod (14x112) ()
20-1
62100-32E10-28W
Absorber Assy, Rear Shock (e3,e33 Model K6 For N9je3,e33 Model K7/k8)
20-2
62100-32E10-YKS
Absorber Assy, Rear Shock (e3,e33 Model K6 For Yu1)
21
62648-14500
Болт
