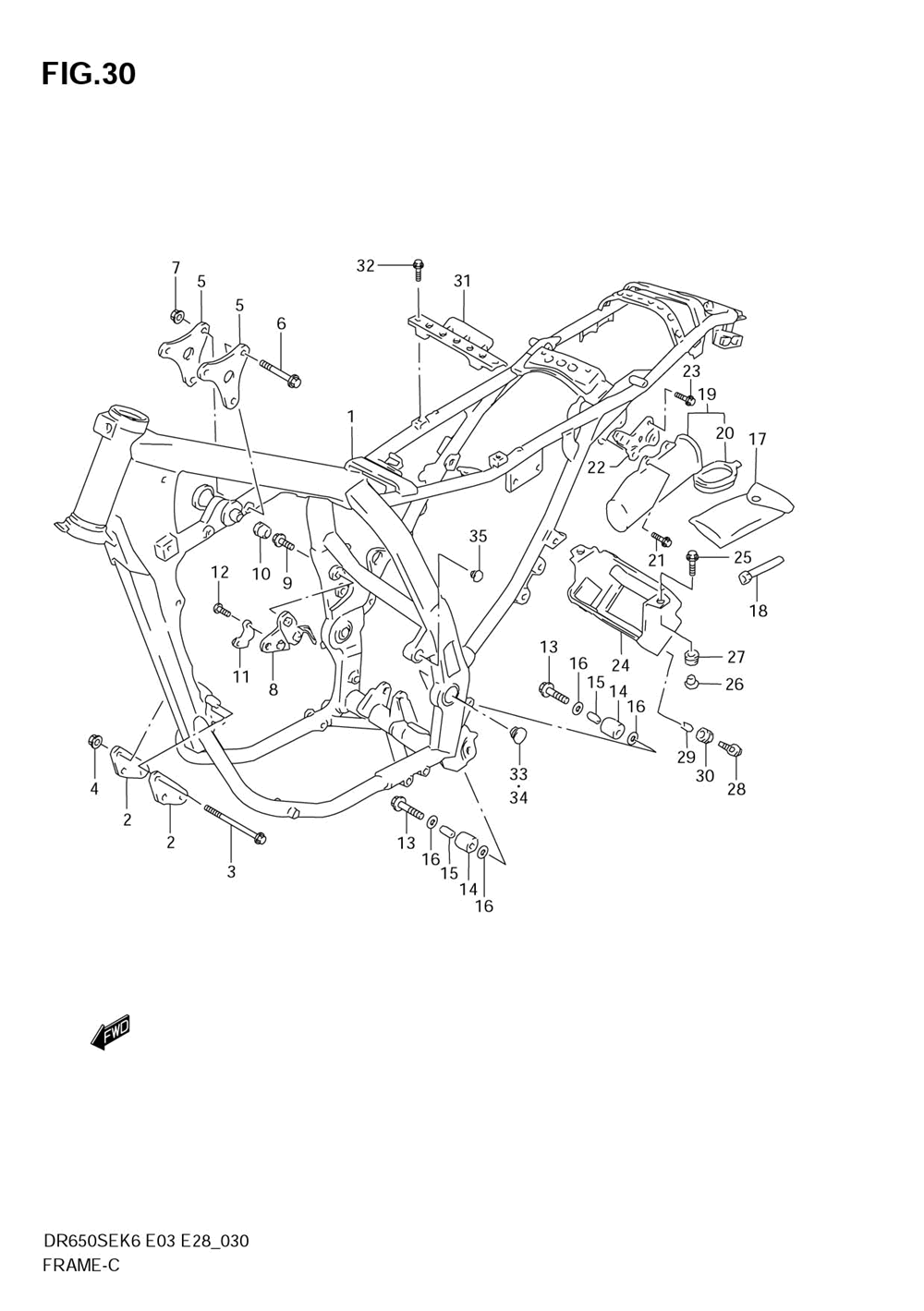

Рама

Suzuki DR650SE

Рама

#

oem код

название

цена

1-1

41100-32E30-YU8

Frame (gray) (e3, E28)

Frame (gray) (e3, E28)

1-2

41100-32E20-YU8

Frame (gray) (e33)

Frame (gray) (e33)

2

Plate, Front Rh ()

Plate, Front Rh ()

3

Bolt, Front ()

Bolt, Front ()

4

Гайка

Гайка

5

Plate, Upper ()

Plate, Upper ()

6

Bolt, 8x55 ()

Bolt, 8x55 ()

8

41930-32E00-019

Plate, Rear Rh (black) ()

Plate, Rear Rh (black) ()

9

Болт

Болт

10

Cap ()

Cap ()

11

Bracket, Stop Switch ()

Bracket, Stop Switch ()

12

Screw ()

Screw ()

13

Болт

Болт

14

Roller, Chain Control Upper ()

Roller, Chain Control Upper ()

15

Spacer ()

Spacer ()

16

Шайба

Шайба

17

Tool Assy ()

Tool Assy ()

18

Box Spanner 16 ()

Box Spanner 16 ()

19

Holder, Tool ()

Holder, Tool ()

20

.cap ()

.cap ()

21

Болт

Болт

22

Bracket, Tool Holder (e33)

Bracket, Tool Holder (e33)

23

Bolt (e33)

Bolt (e33)

24

Holder, Battery ()

Holder, Battery ()

25

Болт

Болт

26

Spacer ()

Spacer ()

27

.cushion, 8.5x20x8 ()

.cushion, 8.5x20x8 ()

28

Bolt, Side ()

Bolt, Side ()

29

Spacer (6.2x9x7.5) ()

Spacer (6.2x9x7.5) ()

31

Plate, Fitting ()

Plate, Fitting ()

32

Болт

Болт

33

Plug, Frame Pivot Rh ()

Plug, Frame Pivot Rh ()

34

Plug, Frame Pivot Lh ()

Plug, Frame Pivot Lh ()

35

Plug, Frame Boss ()

Plug, Frame Boss ()
