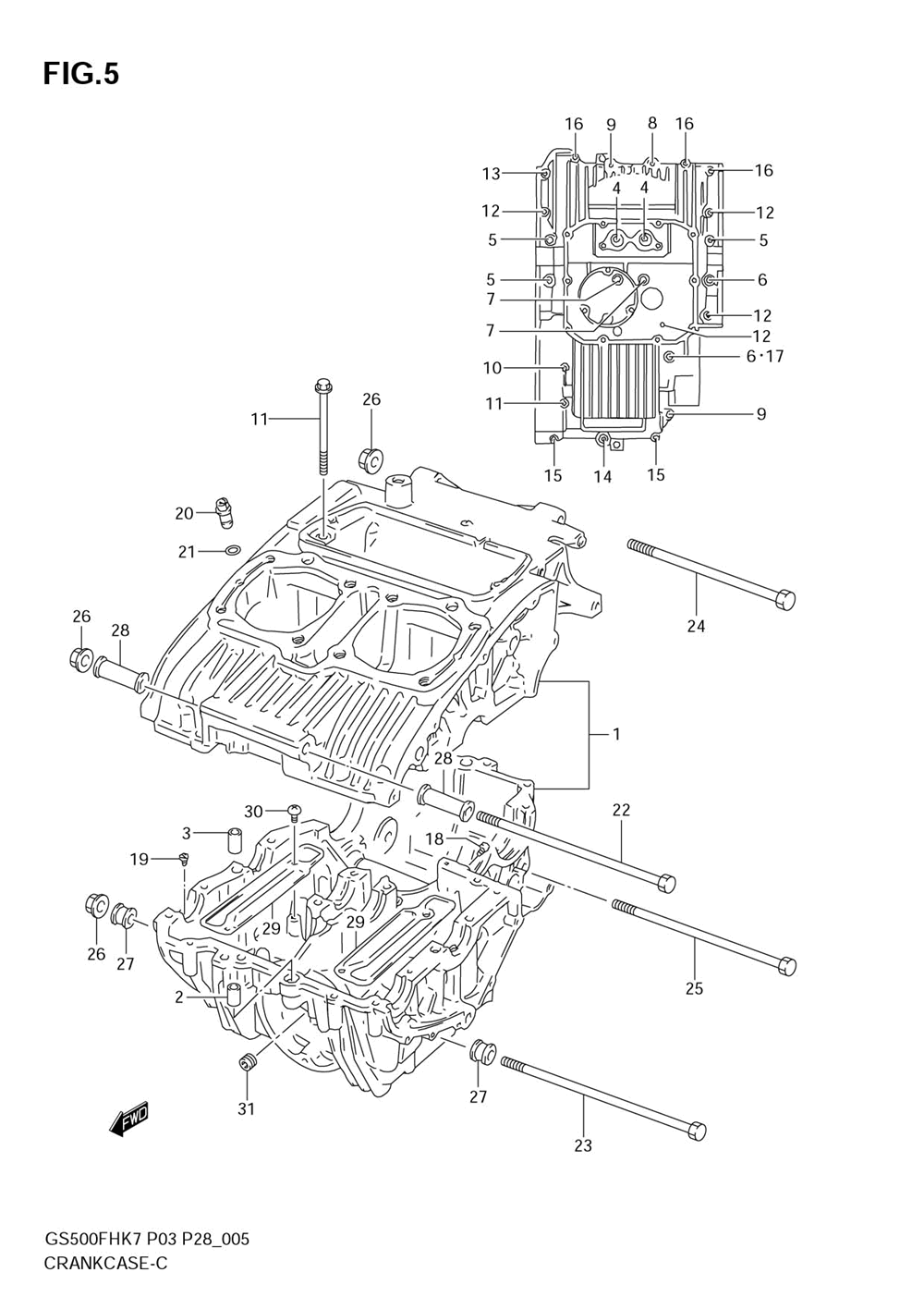

Картер

Suzuki GS500F

Картер

#

oem код

название

цена

1-1

Crankcase Set (gs500h)

Crankcase Set (gs500h)

1-2

Crankcase Set (gs500f)

Crankcase Set (gs500f)

2

.pin ()

.pin ()

3

.pin (11x20) ()

.pin (11x20) ()

5

Bolt, Collector No.2 ()

Bolt, Collector No.2 ()

6

Bolt, Collector No.1 ()

Bolt, Collector No.1 ()

7

.bolt (8x100) ()

.bolt (8x100) ()

8

Bolt, Oil Pump (l) ()

Bolt, Oil Pump (l) ()

9

Bolt, Oil Pump (s) ()

Bolt, Oil Pump (s) ()

10

.bolt (6x125) ()

.bolt (6x125) ()

11

.bolt (6x105) ()

.bolt (6x105) ()

14

Болт

Болт

15

.bolt (6x50) ()

.bolt (6x50) ()

16

.bolt (6x45) ()

.bolt (6x45) ()

17

Gasket (8.2x14x1.0) ()

Gasket (8.2x14x1.0) ()

18

.jet, Oil Gallery Mission ()

.jet, Oil Gallery Mission ()

19

.jet, Oil Gallery Bal Shaft ()

.jet, Oil Gallery Bal Shaft ()

20

.jet, Oil Gallery Cylinder ()

.jet, Oil Gallery Cylinder ()

21

.o Ring (d:1.1, Id:3.1) ()

.o Ring (d:1.1, Id:3.1) ()

22

Bolt (10x255) ()

Bolt (10x255) ()

23

Bolt (10x245) ()

Bolt (10x245) ()

24

Bolt (10x170) ()

Bolt (10x170) ()

25

Bolt (10x160) ()

Bolt (10x160) ()

26

Гайка

Гайка

27

Spacer (l:16.8) ()

Spacer (l:16.8) ()

28

Spacer (l:65) ()

Spacer (l:65) ()

29

Plate, Oil Separator ()

Plate, Oil Separator ()

30

Screw, Shift Cam (6x12) ()

Screw, Shift Cam (6x12) ()

31

.jet, Oil Gallery (gs500f)

.jet, Oil Gallery (gs500f)
