Сцепление Оригинальные запчасти для мотоциклов Suzuki GSF1250S Bandit (2008)

ОПТОВО-РОЗНИЧНЫЙ МАГАЗИН МОТОЗАПЧАСТЕЙ

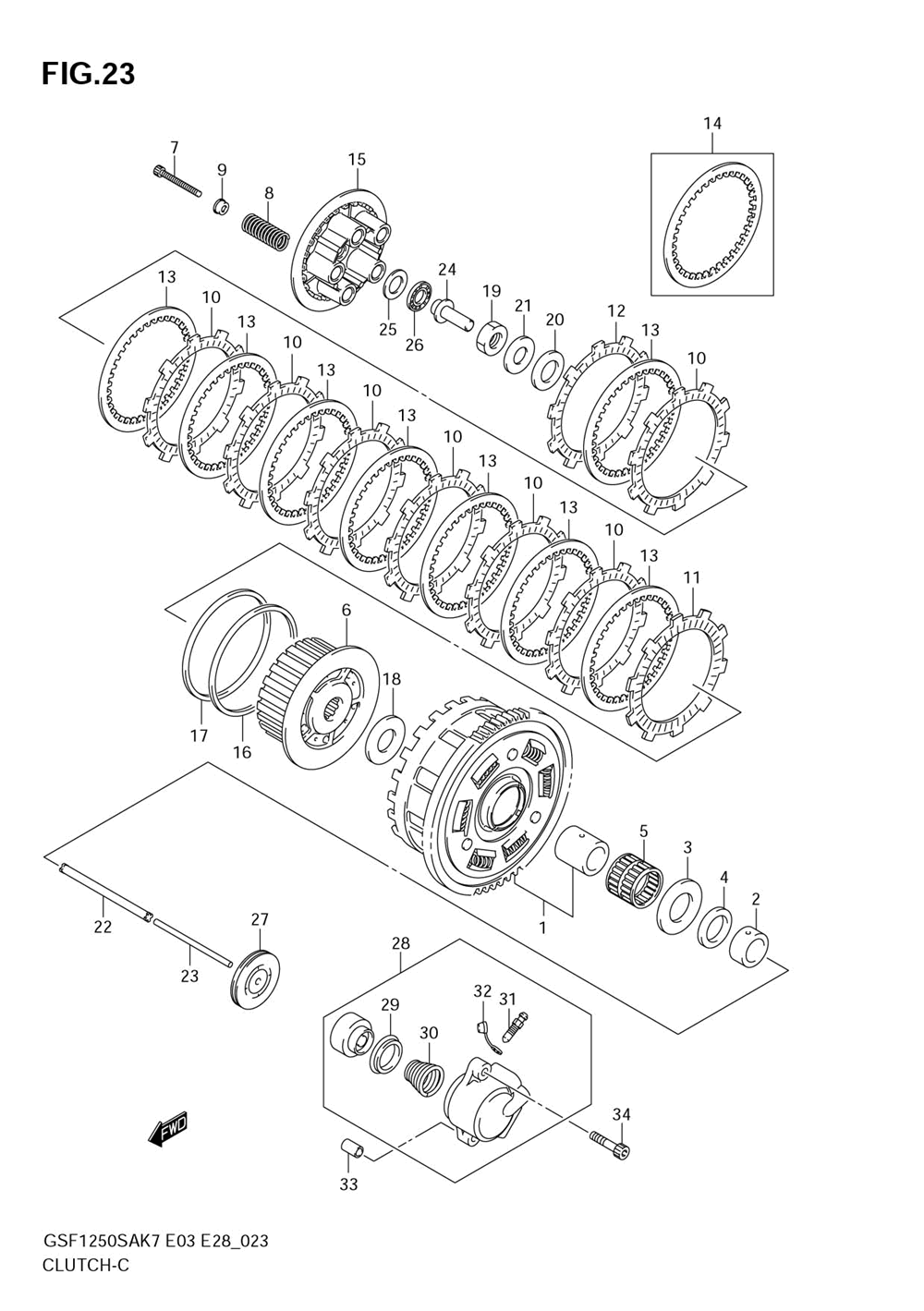

Сцепление

Suzuki GSF1250S Bandit

Сцепление

#

oem код

название

цена

1

Gear Assy, Prima (nt:72)

Gear Assy, Prima (nt:72)

2

Spacer, Oil Pump Drive ()

Spacer, Oil Pump Drive ()

3

Washer (25x54x2.4) ()

Washer (25x54x2.4) ()

4

Washer, 25x30x3 ()

Washer, 25x30x3 ()

5

Bearing (35x40x26.8) ()

Bearing (35x40x26.8) ()

6

Hub, Clutch Slee ()

Hub, Clutch Slee ()

7

Bolt, Clutch Spr ()

Bolt, Clutch Spr ()

8

Spring, Clutch ()

Spring, Clutch ()

9

Washer, Clutch Spring ()

Washer, Clutch Spring ()

10

Plate, Clutch Dr ()

Plate, Clutch Dr ()

11

Plate, Clutch Drive No.3 ()

Plate, Clutch Drive No.3 ()

12

Plate, Clutch Drive, No.2 ()

Plate, Clutch Drive, No.2 ()

13

Plate, Clutch Driven No.1 (t:2.0)

Plate, Clutch Driven No.1 (t:2.0)

14

Plate, Clutch Driven No.2 (opt,t:2.3)

Plate, Clutch Driven No.2 (opt,t:2.3)

15

Disc, Clutch Pre ()

Disc, Clutch Pre ()

16

Seat, Wave Washer ()

Seat, Wave Washer ()

17

Washer, Clutch Plate Wave ()

Washer, Clutch Plate Wave ()

18

Washer (25x50x25) (25x50x2.5)

Washer (25x50x25) (25x50x2.5)

19

Nut, Clutch Sleeve Hub ()

Nut, Clutch Sleeve Hub ()

20

Washer, Clutch Sleeve Nut (25x38x1)

Washer, Clutch Sleeve Nut (25x38x1)

21

Washer (24.2x35x2) (24.2x35x2)

Washer (24.2x35x2) (24.2x35x2)

22

Rod, Clutch Push (l:169)

Rod, Clutch Push (l:169)

23

Rod, Clutch Push (l:138)

Rod, Clutch Push (l:138)

24

Piece, Clutch Push ()

Piece, Clutch Push ()

25

Washer (15.5x28x1) (15.5x28x1)

Washer (15.5x28x1) (15.5x28x1)

26

Bearing (15x28x2) (15x28x2)

Bearing (15x28x2) (15x28x2)

27

Seal, Oil, 6x34x5 (6x34x5.5)

Seal, Oil, 6x34x5 (6x34x5.5)

28

Cylinder, Clutch ()

Cylinder, Clutch ()

29

.cup ()

.cup ()

30

Пружина

Пружина

31

.bleeder ()

.bleeder ()

32

.cap, Bleeder ()

.cap, Bleeder ()

33

Pin, Cl Rlse Cyl ()

Pin, Cl Rlse Cyl ()

34

Bolt (6x30) ()

Bolt (6x30) ()
