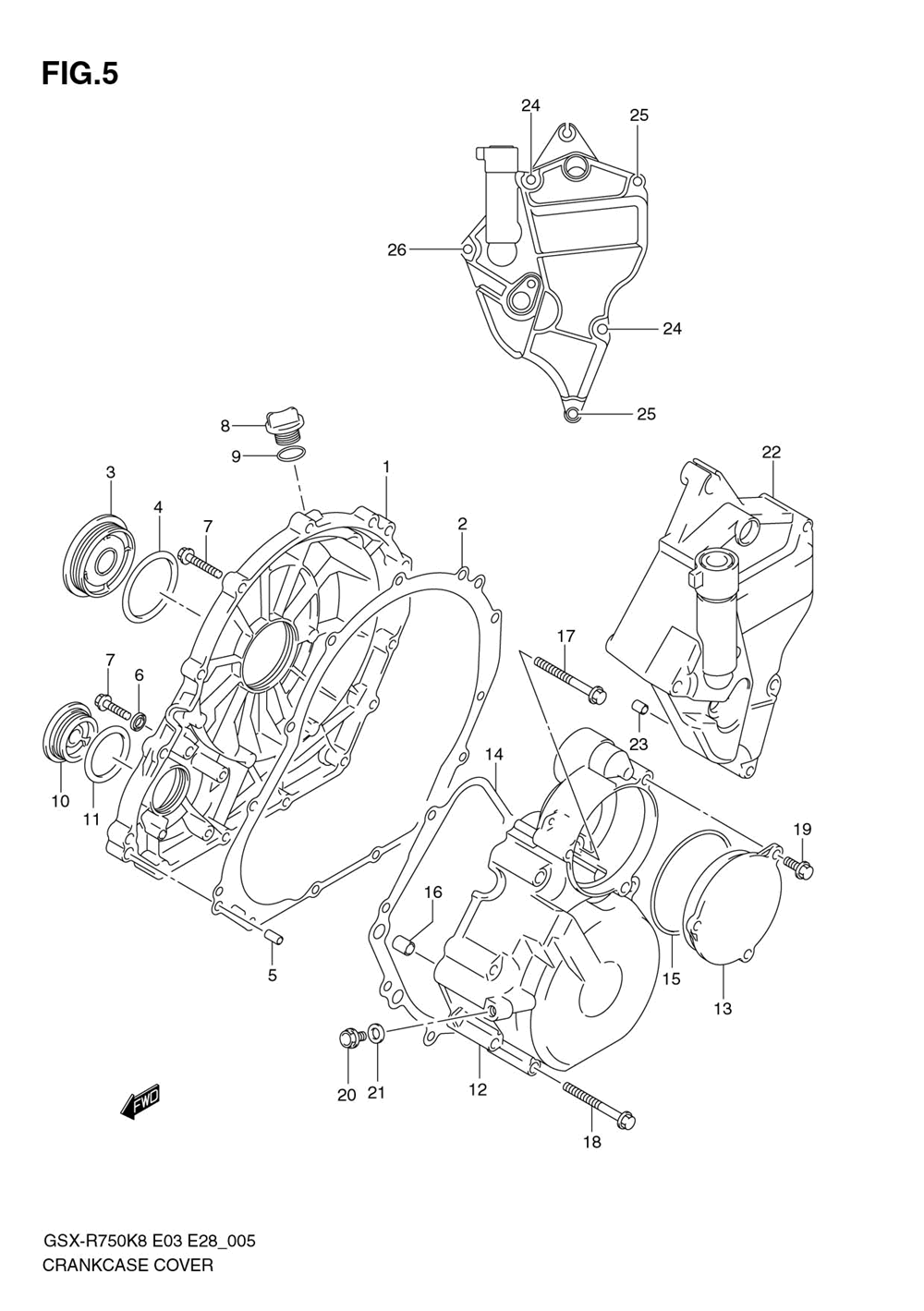

Крышки картера

Suzuki GSX-R750
Suzuki
#oem кодцена
1
11341-37H00
Cover, Clutch ()
2
11482-01H00
Gasket, Clutch Cover ()
3
11342-41G10
Cap, Clutch Release Adjust ()
4
09280-54001
O Ring (d:2.4 Id:52.6) ()
5
04211-09189
Pin ()
6
09168-06023
Washer, Oil Gallery Exhaust ()
7
09103-06213
Винт
8
11971-25D00
Plug, Engine Oil Filler ()
9
09280-17003
O Ring, Oil Filler Cap ()
10
09259-36021
Plug, Crankshaft Hole ()
11
09280-33004
O Ring (id:32.7, Dd:3.1) ()
12
11351-01H02
Cover, Generator ()
13
11352-01H00
Cap, Starter Idle Gear ()
14
11483-01H00
Gasket ()
15
09280-71008
O Ring (d:2.6, Id:67.1) ()
16
04211-09149
Dowel Pin ()
17
09103-06212
Bolt (6x25) ()
18
09103-06238
Болт
19
09103-06274
Screw, Radiator Side ()
20
09103-06222
Bolt, Oil Gallery Exhaust ()
21
09168-06018
Gasket, Tensioner Adjuster ()
22
11361-01H00
Cover, Engine Sprocket ()
23
04211-09129
Pin, Cl Rlse Cyl ()
24
09103-06224
Болт
25
09103-06239
Болт
26
09103-06257
Bolt (l:75) ()
