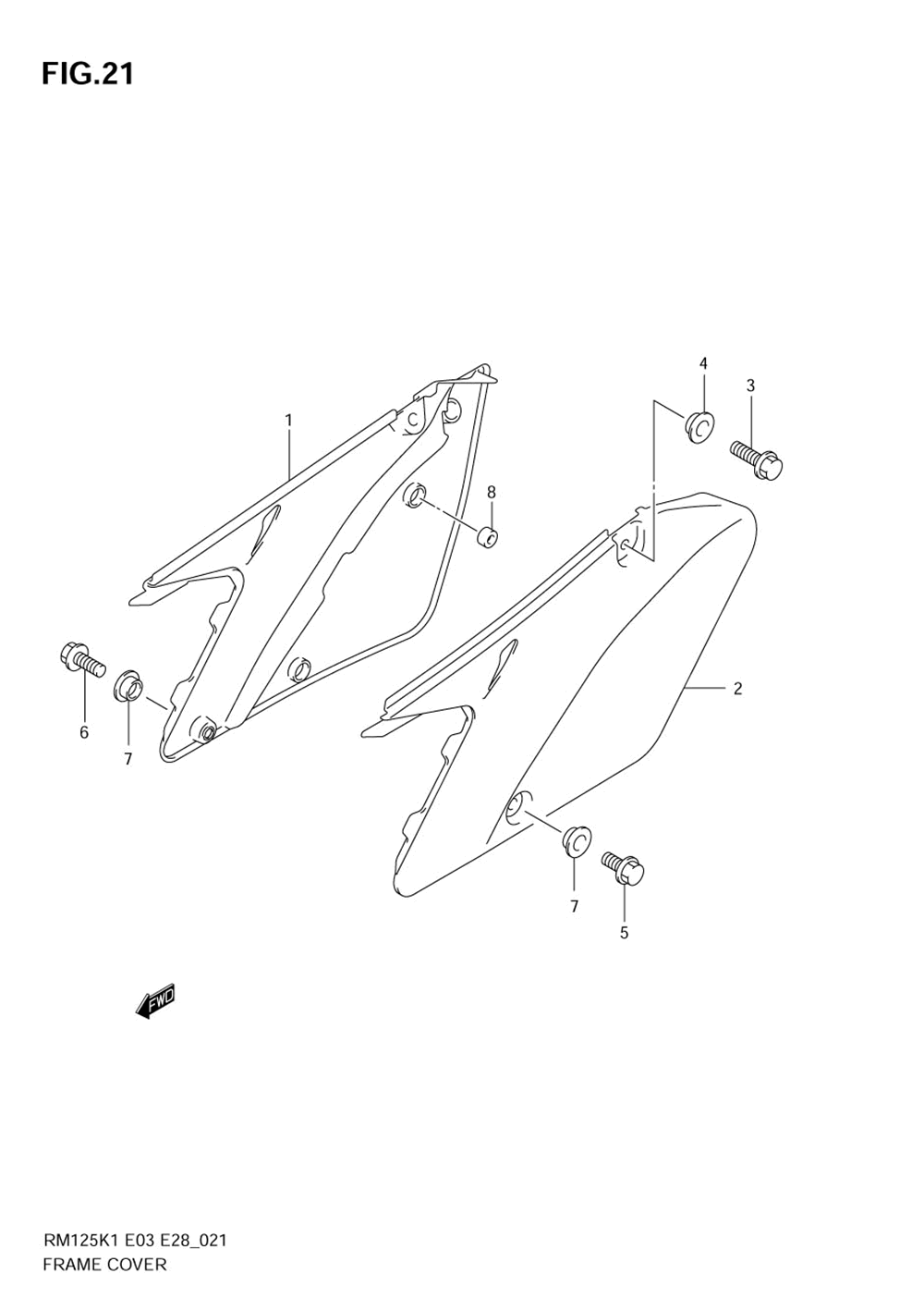

Frame cover (model k1/k2)

Suzuki RM125

Frame cover (model k1/k2)

#

oem код

название

цена

1-1

47111-36F01-YR1

Cover, Frame, R (model K1)

Cover, Frame, R (model K1)

1-2

47111-36F01-YU1

Cover, Frame Rh (yellow) (model K2)

Cover, Frame Rh (yellow) (model K2)

2-1

47211-36F01-YR1

Cover, Frame, L (model K1)

Cover, Frame, L (model K1)

2-2

47211-36F01-YU1

Cover, Frame Lh (yellow) (model K2)

Cover, Frame Lh (yellow) (model K2)

3-1

Bolt, Thermostat Cover (model K1)

Bolt, Thermostat Cover (model K1)

3-2

.bolt (6x20) (model K2)

.bolt (6x20) (model K2)

4

Washer ()

Washer ()

5-1

Bolt 6x12 Blk 8 (model K1)

Bolt 6x12 Blk 8 (model K1)

5-2

Bolt (model K2)

Bolt (model K2)

6-1

Bolt (model K1)

Bolt (model K1)

6-2

Bolt, Chain Guide (model K2)

Bolt, Chain Guide (model K2)

7

Washer, Ca Holder (6.3x16x1) ()

Washer, Ca Holder (6.3x16x1) ()

8

Cushion, Rh ()

Cushion, Rh ()
